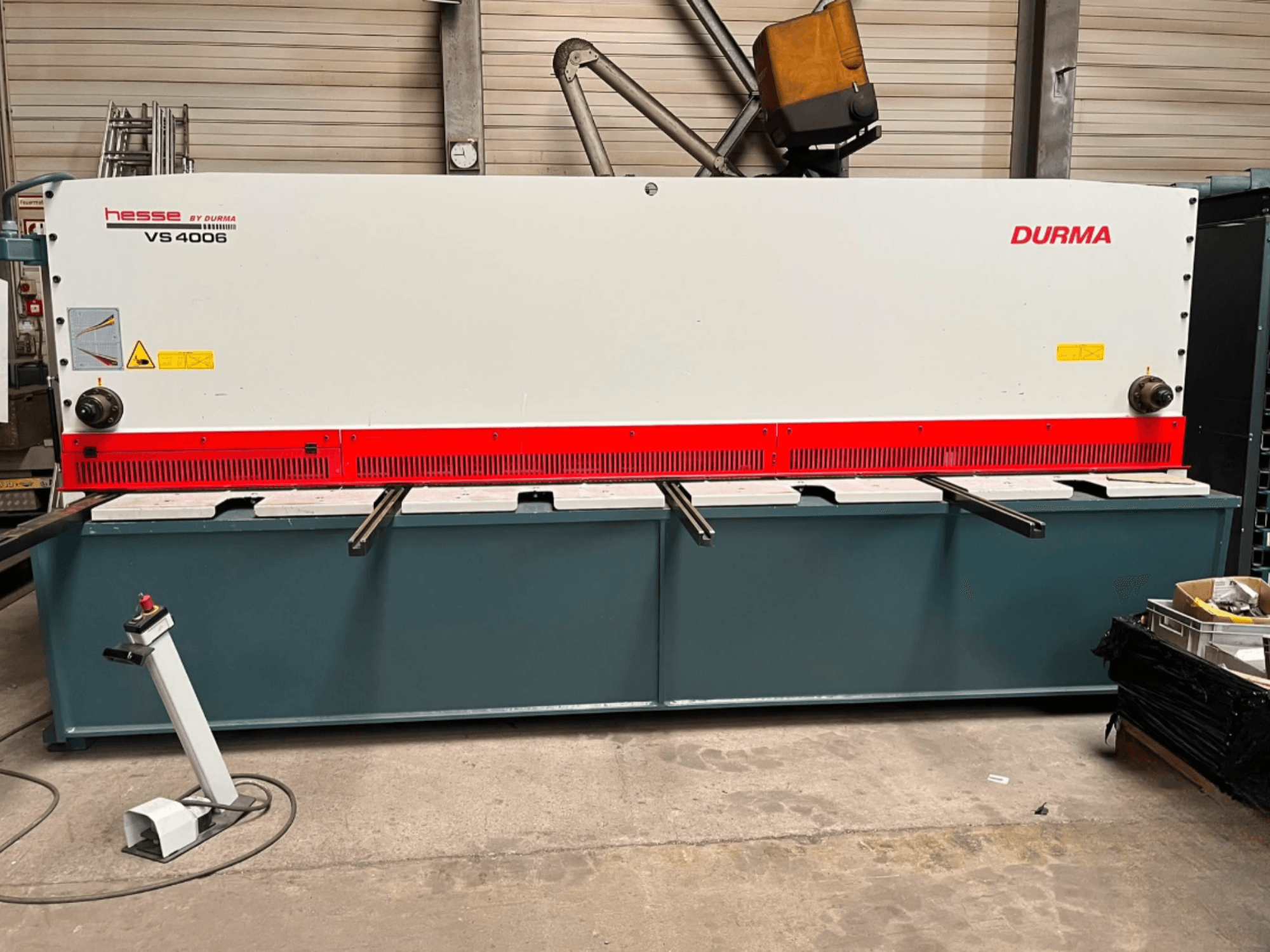

CNC shearing machine manufactured in 2023. This Durma VS 4006 features a cutting length capacity of 4100 mm and can handle a maximum sheet thickness of 6 mm for structural steel. It includes a powerful 11 kW motor and a rear stop/back gauge range of 1000 mm. If you are looking to get high-quality shearing capabilities, consider the Durma VS 4006 machine we have for sale. Contact us for further details.
Overview
- brand: Durma
- year: 2023
- MODEL: VS 4006
- application type: Shearing
- Location: Austria
- machine type: CNC Shearing Machine
Technical Information - Durma VS 4006
Dimensions
- Machine Height: 2230 mm
- Machine Length: 4890 mm
- Machine Weight: 11070 kg
- Machine Width: 3850 mm
- Table Width: 494 mm
Technical Specification
- Max. Cutting Length: 4100 mm
Additional Information
- Cutting Length / Capacity: 4100 x 6 mm
- Max. Sheet Thickness (Structural Steel): 6 mm
- Max. Sheet Thickness (Stainless Steel): 4 mm
- Work Area X / Cutting Length: 4080 mm / 4100 mm
- Stroke: 165 mm
- Stroke Rate: 10 - 20 per minute
- Cutting Angle: 0.5 - 2°
- Hold-down Force: 20 metric tons
- Rear Stop / Back Gauge Range: 1000 mm
- Rear Stop Speed: 200 mm/s
- Motor Power: 11 kW
- Voltage: 400 V
- Frequency: 50 Hz
- Current: 22 A
- Intermittent Current: 32 A
- Short Circuit Breaking Capacity: 10 kA
- Lubricant / Oil Tank Capacity: 180 liters
- Projection in Side Column / Throat Depth: 350 mm
- Number of Support Arms: 3 pcs
- Table Height: 820 mm
- Control Unit: D-touch 7 CNC touchscreen control for rip fence, cutting angle, kerf, cutting length, and piece count
- Additional Features: USB port, cutting line illumination, fold-up ball screw for rip fence, ball bearings in table, 1,000 mm fold-up finger guard, side stop with T-slots, tilting stop, scale, oil filling, rear light barriers
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
