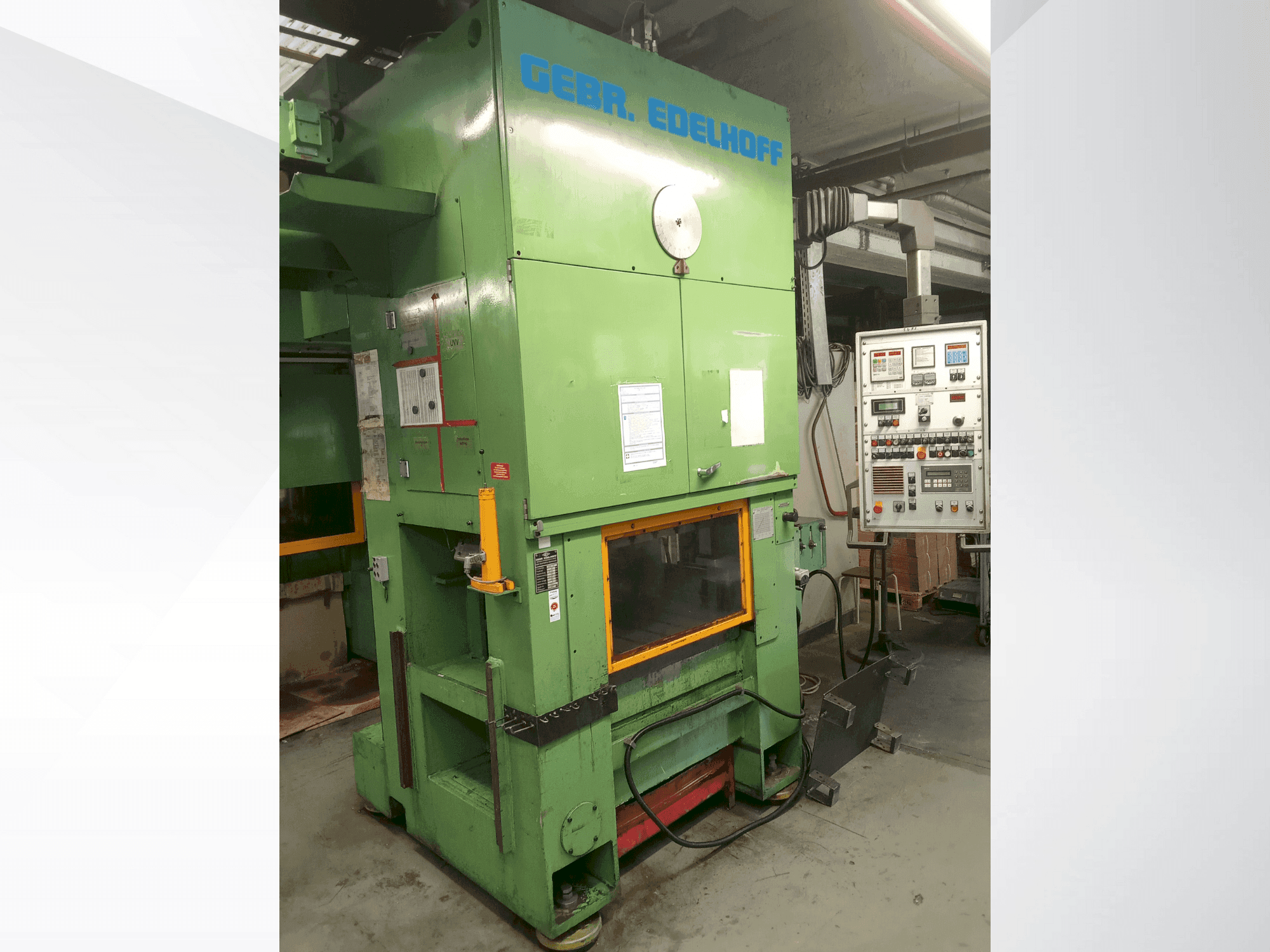

Front view of EDELHOFF DARR 1/80  machine

EDELHOFF - DARR 1/80DE-PRE-EDE-1995-00001

19,500 €
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This EDELHOFF DARR 1/80 press was manufactured in 1995. It offers a pressing force of 800 kN with adjustable strokes ranging from 20-80mm and stroke rates from 30-200 per minute. The machine features a substantial table surface of 810x860mm and a maximum distance between table and ram of 450mm. It weighs 9.5 tonnes, suited for robust operations in sheet metal machinery. The EDELHOFF DARR 1/80 machine we have for sale. For more information about this press, please reach out to us.

Overview

  • brand: EDELHOFF
  • year: 1995
  • MODEL: DARR 1/80
  • application type: Broaching
  • Location: Germany
  • machine type: Vertical Broaching Machine
  • availability: Sold

Technical Information - EDELHOFF DARR 1/80

General Data

  • Machine weight: 9500 KG

Main drive

  • Pressing force: 800 kn
  • Stroke: 30-200 stokes/min
  • Stroke adjustment: Yes

Table

  • Outer length: 810 mm
  • Outer width: 860 mm

Additional Information

    Machine Benefits

    • Technical Machine Benefits:
      • - Stroke adjustment: 100mm
      • - Maximum distance between table and ram: 450mm
      • - Lateral body clearance: 500mm
      • - Table opening: 550x220mm
      • - Plunger surface: 810x700mm (width x depth)
      • - Frame width: 830mm
      • - Pivot hole in ram: 50mm diameter
      • - Lateral opening in the press body: 500mm

    Extra information

    • - Machine still under power / There is no PIV controller installed, but a frequency converter

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
