- ➤ Used EHT EHPS 20-35 - Press For Sale | gindumac.com

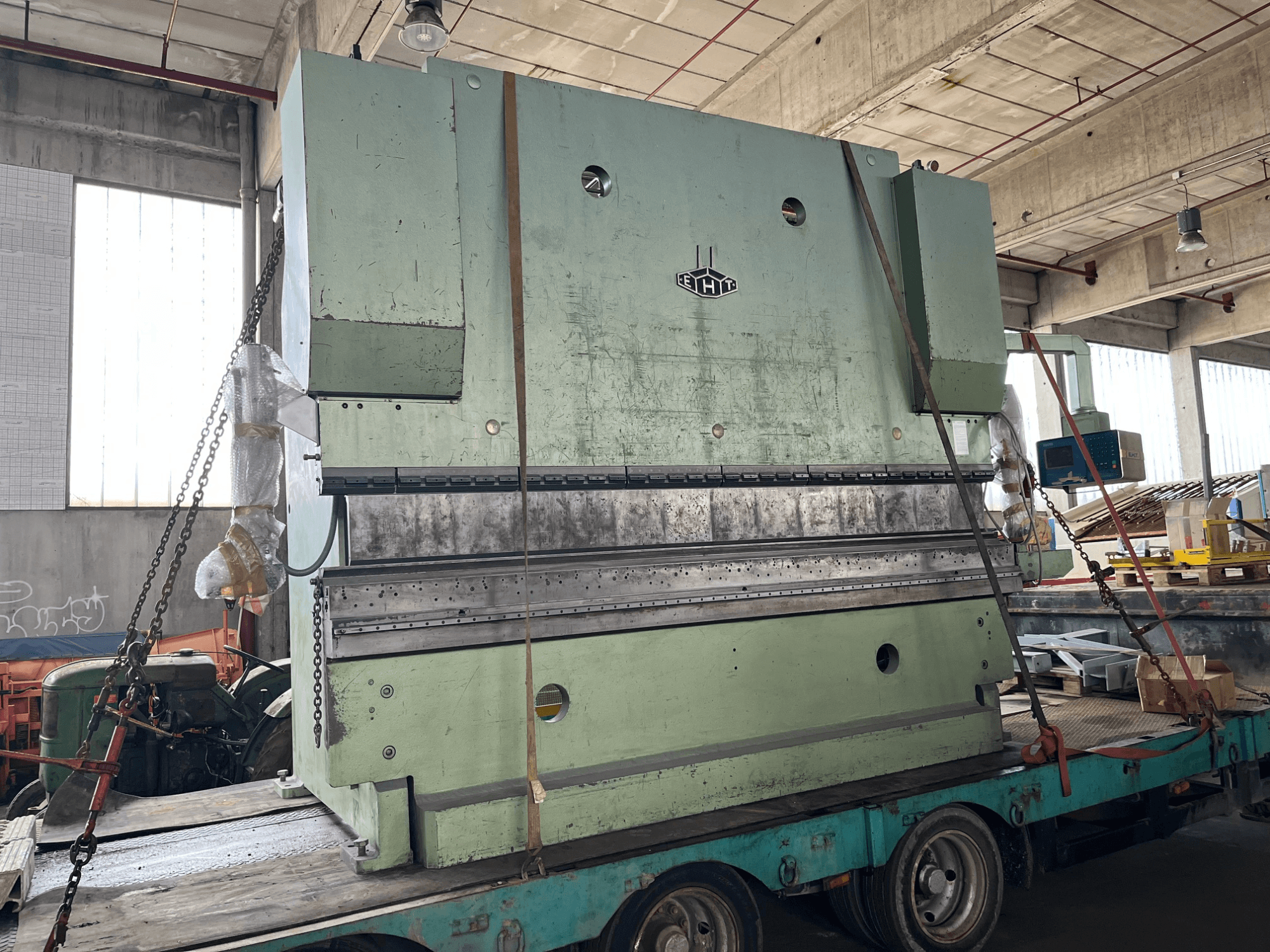

This 4-axis EHT EHPS 20-35 press brake was manufactured in 1995. It features a pressing force of 2,000 kN and a bending length of 3,550 mm, providing robust capabilities for metal forming. The machine includes a distance between columns of 3,050 mm and a throat depth of 350 mm. If you are looking to get high-quality bending capabilities, consider the EHT EHPS 20-35 press brake we have for sale. Contact us for further details.
Overview
- brand: EHT
- year: 1995
- MODEL: EHPS 20-35
- application type: Bending
- Location: Germany
- machine type: Press Brake
Technical Information - EHT EHPS 20-35
Dimensions
- Machine Height: 3200 mm
- Machine Length: 4000 mm
- Machine Weight: 17700 kg
- Machine Width: 2000 mm
Movement
- Number of Axes: 4
- Y-axis Travel: 330 mm
Technical Specification
- Bending Length: 3550 mm
- Max. Stroke: 330 mm
- Pressing Force: 2000 Kn
Additional Information
Control Unit: DNC 806 PS
Distance Between Columns: 3,050 mm
Throat Depth: 350 mm
Backgauge Range (X-Axis): 5 – 1,000 mm
R-Axis Adjustment Range: 115 – 265 mm
Main Motor Power: 18.5 kW
Total Connected Load: 25 kW
Hydraulic Oil Capacity: 400 l
Lower Tool: Multi-V Die (Installed)
Condition: Good
Power Supply: 3 Phase
Frequency: 50 Hz
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
