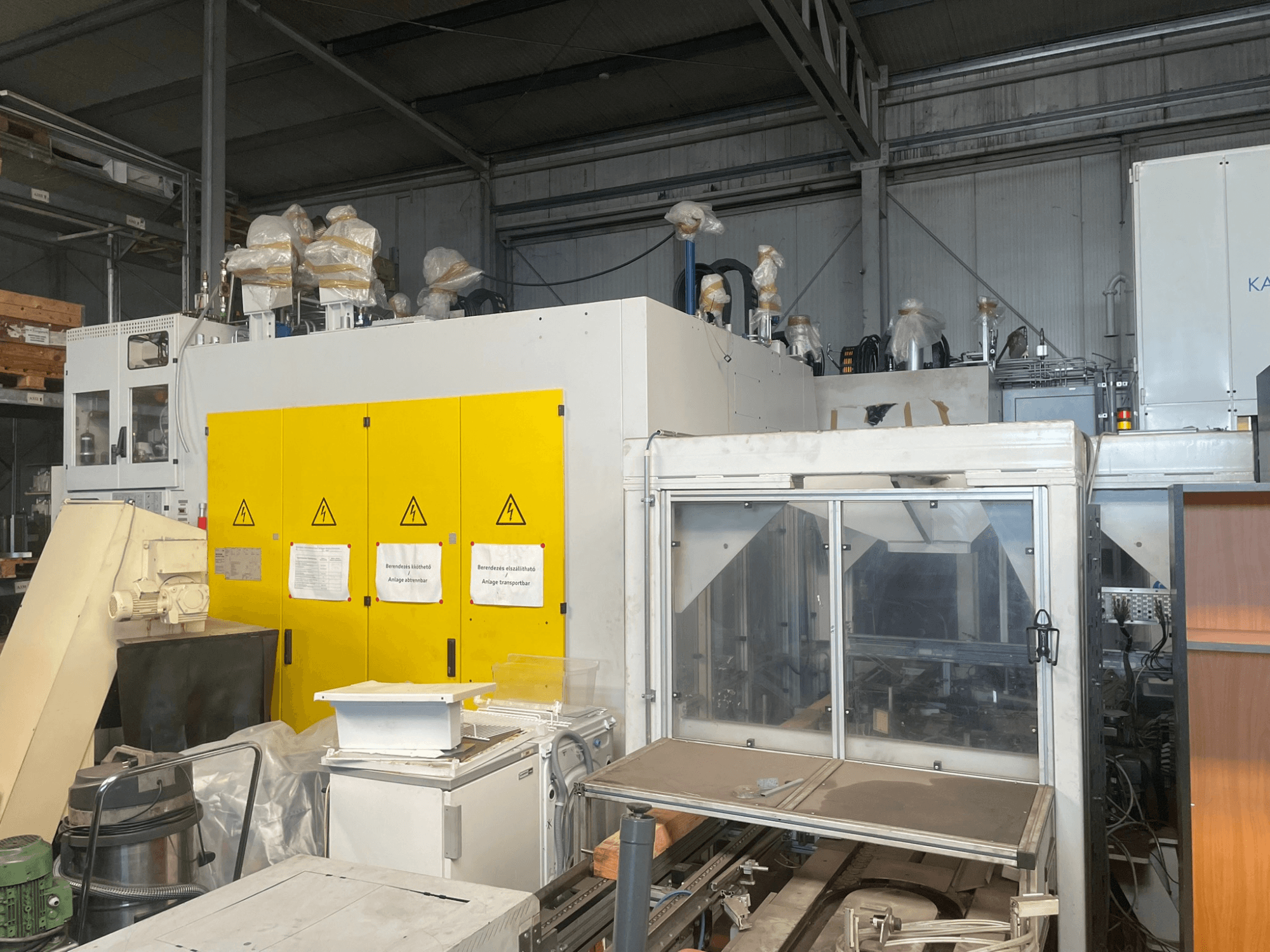

This EMAG VTC 250 Twin was manufactured in 2015. A robust vertical turning machine featuring a MINERALIT base, it handles workpieces up to 140 mm in diameter and 630 mm in length, weighing up to 20 kg. Integrated with an EMAG pick-up system and dual turrets, each with 11 tool stations. Maximum spindle speed reaches 5000 rpm, driven by a 29 kW power unit. Contact us for more information about this machine.
Overview
- brand: EMAG
- year: 2015
- MODEL: VTC 250 Twin
- application type: Turning
- Location: Hungary
- machine type: Vertical Turning Machine
Technical Information - EMAG VTC 250 Twin
Dimensions
- Machine Height: 3900 mm
- Machine Length: 3100 mm
- Machine Weight: 14000 kg
Movement
- Number of Axes: 2
- X-axis Travel: 300 mm
- Z-axis Travel: 740 mm
Technical Specification
- Spindle Speed: 5000 RPM
Additional Information
Machine base: MINERALIT
Max workpiece diameter: 140 mm
Max workpiece length: 630 mm
Max workpiece weight: 20 kg
Number of turrets: 2
Tool stations per turret: 11
Tool shank diameter: 40 mm
Rapid traverse (X/Z): 30 m/min / 40 m/min
Feed force (X/Z): 9.4 kN / 10 kN
Ball screw diameters (X/Z): 32 mm / 40 mm
Spindle nose: DIN 55026-A6
Front bearing diameter: 110 mm
Drive (100% duty): 29 kW / 200 Nm / 1400 rpm (speed at nominal power)
Loading time: 4–5 s
Chip-to-chip: 6–7 s
Additional equipment
Integrated EMAG pick-up system (automation)
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
