EMAG - BAW 06-22DE-MIL-EMA-2006-00001

Name: EMAG BAW 06-22
Brand: EMAG
SKU: DE-MIL-EMA-2006-00001
Price: 99000 EUR
Availability: InStock

99,000 €

gindumac price

(Ex works)

get an official quote

Visit the machine

make a counteroffer

Download PDF

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used EMAG BAW 06-22 For Sale | gindumac.com

Show in original language

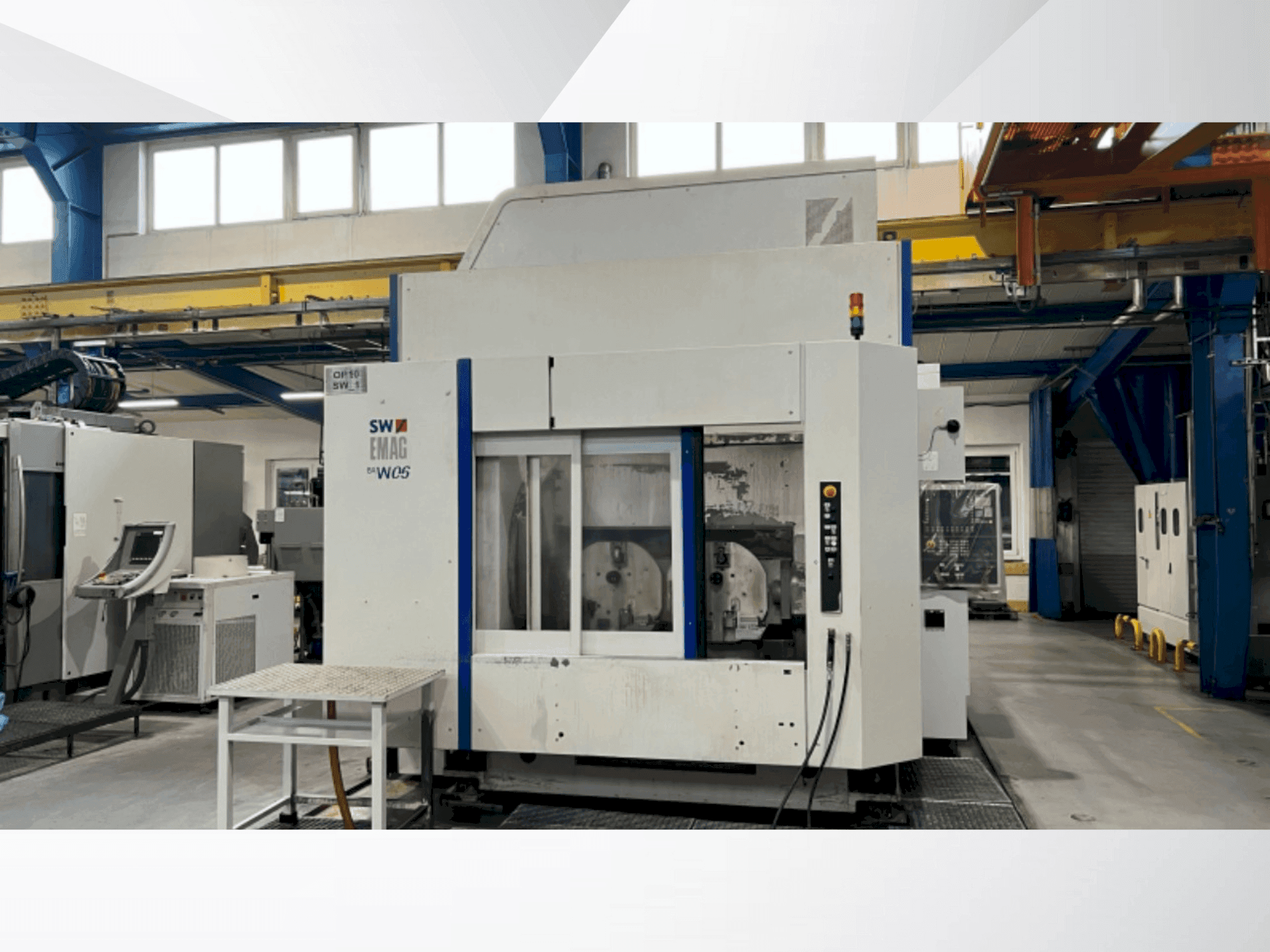

This 5-axis EMAG BAW 06-22 double-spindle machining center in 5-axis design (on both sides) was manufactured in 2006. It features double spindle machining, a 600 mm spindle distance, and X/Y/Z travels of 600/975/500 mm. The machine includes a high-speed milling spindle at 17,500 rpm, dual 72-unit tool magazines, and a robust HSK A63 tool holder. Additional features include a KNOLL coolant system, 70 bar high-pressure pump, and a chip conveyor. If you are looking to get high-quality milling capabilities consider the EMAG BAW 06-22 machine we have for sale. Contact us for more information.

Overview

brand: EMAG
year: 2006
MODEL: BAW 06-22
application type: Milling
Location: Germany
machine type: Universal Machining Centre

Technical Information - EMAG BAW 06-22

General Data

Machine weight: 18000 kg

Main drive

Spindle speed range: 17500 1/MIN
Number of axis: 5

Movement

X-AXIS Movement: 600 mm
X-AXIS Rapid traverse: 45 m/min
Y-AXIS Movement: 600 (975) mm
Y-AXIS Rapid traverse: 45 m/min
Z-AXIS Movement: 500 mm
Z-AXIS Rapid traverse: 45 m/min

Tools

Type of tool holder: HSK A63

Media

Chip conveyor: Yes

Additional Information

Additional equipment

Double Tool Change Table
2 Swivel Units for Clamping Bridge
2 NC-Controlled Swivel Units
4 NC-Controlled Rotary Tables
KNOLL Coolant System
70 Bar High-Pressure Pump
Chip Conveyor

Machine Benefits

Technical Machine Benefits

Double spindle, 5-axis machining on both sides of the table
Sw spindles like new
Tool magazine: 2 x 72 units
Spindle distance: 600 mm

Extra Information

Machine is not connected anymore, but can be shown under power at least Additional control panel for tool management

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
