EMCO - Emcomat E-200DK-TUR-EMC-2016-00001

Name: EMCO Emcomat E-200
Brand: EMCO
SKU: DK-TUR-EMC-2016-00001
Price: 22000 EUR
Availability: InStock

22,000 €

gindumac price

(Ex works)

get an official quote

Visit the machine

make a counteroffer

Download PDF

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used EMCO Emcomat E-200 For Sale | gindumac.com

Show in original language

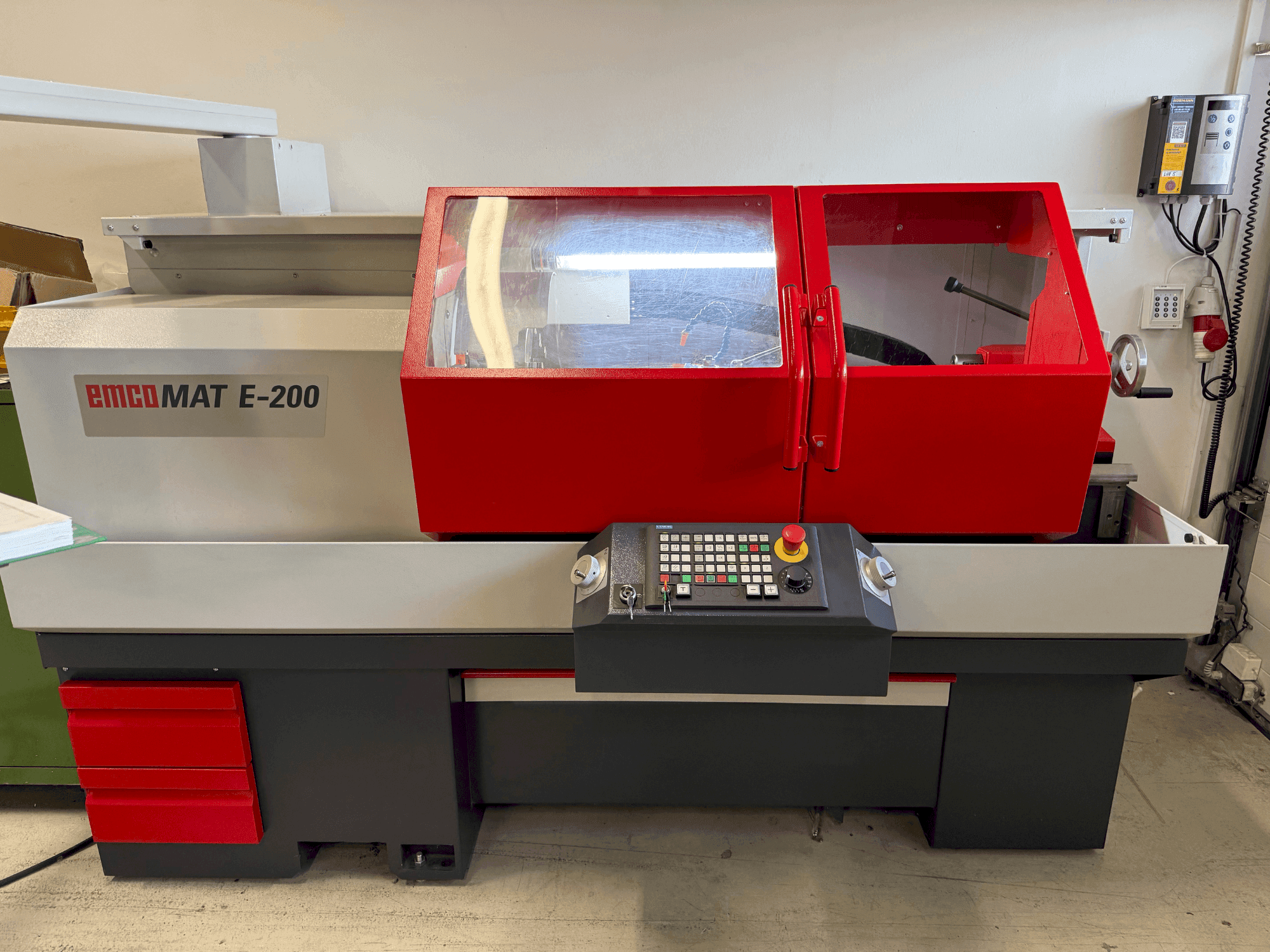

This EMCO Emcomat E-200 was manufactured in 2016. A robust horizontal turning machine featuring a swing over bed of Ø 400 mm and a distance between centers of 1000 mm. It offers a spindle speed range of 50–4000 rpm with stepless speed control and a spindle bore diameter of Ø 80 mm. If you are looking to get high-quality turning capabilities, consider the EMCO Emcomat E-200 machine we have for sale. Contact us for more information.

Overview

brand: EMCO
year: 2016
MODEL: Emcomat E-200
application type: Turning
Location: Denmark
machine type: Horizontal Turning Machine
control unit brand: SIEMENS

Technical Information - EMCO Emcomat E-200

Control Unit

Control Brand: SIEMENS
Control Model: 828D

Movement

Number of Axes: 2

Technical Specification

Spindle Power: 7.5 kW
Spindle Speed: 53 RPM

Additional Information

Machine Benefits

Technical Machine Benefits

Ac motor, steplessly adjustable
Max. Rated torque at main spindle: 108 nm
Longitudinal travel (carriage): 900 mm
Cross travel (cross slide): 220 mm
Distance between centers: 1000 mm
Center height: 200 mm
Swing over cross slide: Ø 220 mm
Permissible workpiece weights unsupported (max. 5 kg at 4000 rpm): 30 kg / supported by tailstock: 80 kg
Bed width: 260 mm
Cross slide width: 150 mm

Extra Information

Spindle Spindle mount: Gr. 5 (KK5 / DIN 55029) Spindle bore diameter: Ø 80 mm Spindle diameter at front bearing: Ø 200 mm Max. chuck diameter: Ø 260 mm Max. faceplate diameter: Ø 260 mm Spindle speed range: 50–4000 rpm Speed control: Stepless Tail Stock Quill diameter: Ø 50 mm Quill taper: MK3 Quill stroke: 120 mm Tools Tool cross-section: 20 x 20 mm Feed Feed range X / Z axis: 0–8000 mm/min Max. feed force X: 4 kN Max. feed force Z: 4 kN Ball screw X axis, lead / diameter: 5 / Ø 16 mm Ball screw Z axis, lead / diameter: 5 / Ø 32 mm

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
