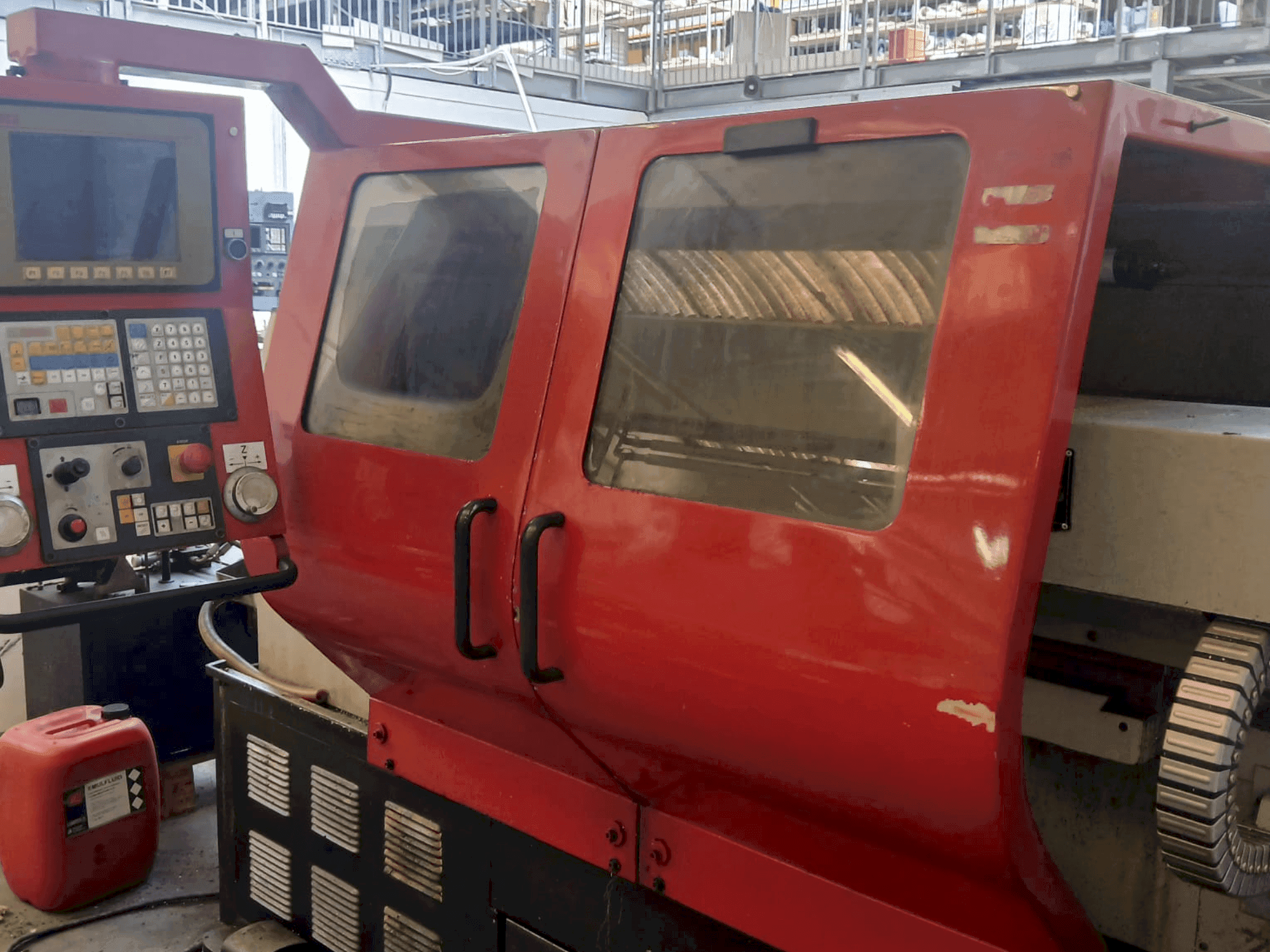

Front view of EMCO EMCOMAT-E 200X1000  machine

EMCO - EMCOMAT-E 200X1000IT-TUR-EMC-2003-00001

11,000 €
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This EMCO EMCOMAT-E 200X1000 was manufactured in 2003. A robust horizontal turning machine featuring a FAGOR 8055 CNC, it offers a spindle speed of up to 3000 rpm and a spindle power of 11-15 kW. The machine handles a maximum diameter of 400 mm above the bed and 220 mm over the slide, with a center height of 200 mm. Contact us for more information about this machine.

Overview

  • brand: EMCO
  • year: 2003
  • MODEL: EMCOMAT-E 200X1000
  • application type: Turning
  • Location: Italy
  • machine type: Horizontal Turning Machine
  • control unit brand: FAGOR

Technical Information - EMCO EMCOMAT-E 200X1000

General Data

  • Machine weight: 2100 kg

Control Unit

  • Brand: FAGOR
  • Model: 8055

Main drive

  • Spindle speed range: 3000 rpm 1/MIN
  • Spindle motor power: 11-15 kW
  • Spindle bore: 52 mm

Movement

  • X-AXIS Movement: 220 mm
  • X-AXIS Rapid traverse: 5 m/min
  • Z-AXIS Movement: 1000 mm
  • Z-AXIS Rapid traverse: 5 m/min

Tail Stock

  • Pinol diameter: 52 mm
  • Pinol tool taper: 4 N

    Additional Equipment

    • - Total Installed Power: 13 kW

    Additional Information

      Machine Benefits

      • Technical Machine Benefits:
        • - Z-axis continuous thrust: 550 dan
        • - X-axis continuous thrust: 550 dan
        • - Center height above bed: 200 mm
        • - Nominal distance between centers: 1000 mm
        • - Permitted diameter above bed: 400 mm
        • - Permitted diameter over slide: 220 mm
        • - Manual quill stroke: 145 mm

      Extra information

      • - Machine still under power

    *There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.

    Your account manager:

    Sergi Guardia

    Sergi Guardia is one of our used machinery trading experts and will be your direct contact for any further questions on the machine. Feel free to contact him/her.

    get in contact

    Payment Terms

    • Payment in advance

    • Asset Financing
