➤ Used EMCO EMCOturn 340 For Sale | gindumac.com

Show in original language

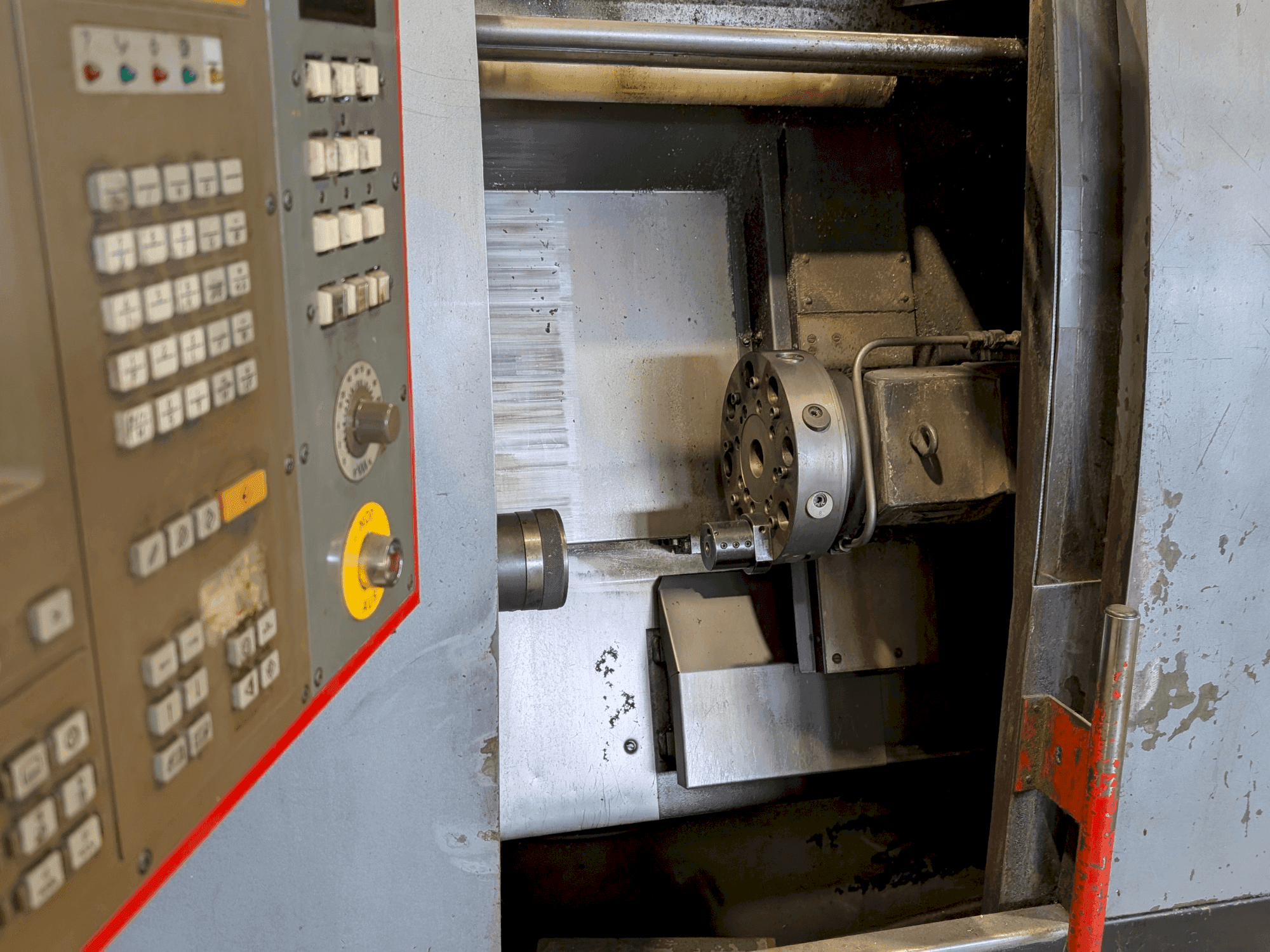

This EMCO EMCOturn 340 was manufactured in 1985. A robust horizontal turning machine featuring a swing over bed of 340 mm and a swing over cross slide of 158 mm. It includes an automatic 8-station disc turret and a spindle speed range up to 6000 rpm. Ideal for precision turning with a spindle bore of 53 mm and a rapid traverse speed. Consider the opportunity to buy this EMCO EMCOturn 340 horizontal turning machine. Contact us for more information.

Overview

brand: EMCO
year: 1985
MODEL: EMCOturn 340
application type: Turning
Location: Germany
machine type: Horizontal Turning Machine
control unit brand: SIEMENS

Technical Information - EMCO EMCOturn 340

General Data

Measurements height: 1780 mm
Machine weight: 2200 kg

Control Unit

Brand: SIEMENS
Model: Sinumerik

Main drive

Spindle motor power: 1/15 kW
Spindle bore: 53 mm
Number of axis: 2

Movement

X-AXIS Movement: 300 mm
X-AXIS Feed Force: 6 m/min
Z-AXIS Movement: 300 mm

Workpiece

Workpiece drm over bed: 340 mm
Workpiece drm over support: 158 mm

Turret

Number of turrets: 1
Tool taper: VDI 3425

Tail Stock

Pinol diameter: 60 mm
Pinol tool taper: MT4

Tools

Number of stations: 8

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Spindle connection: din 55026
- - Outer spindle diameter in front bearing: 80 mm
- - Draw tube clearance: 42 mm
- - Speed control: continuously variable
- - Standard speed range: 60-4000 rpm // high-speed speed range: 100-6000 rpm
- - Feed drive: dc motor in x and z axes: 8500 rpm n
- - Longitudinal feed force (z-axis): 4300 n
- - Take-off time per station: 0. 4 sec
- - Switching accuracy to a radius of 100 mm: +-0. 002 mm
- - Repeat accuracy to a radius of 100 mm: +-0. 0008 mm

Extra information

- Quill stroke: 120 mm Quill contact force: 0-5000 N Media Coolant system receptacle capacity: 100 l Flow rate/pressure: 10 L/min Machine light: 40 W Electrical connection mains supply: 3x380 V Connected load: 20 kVA Dimensions (LxWxH) Installation area: 2300 x 2050 mm

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
