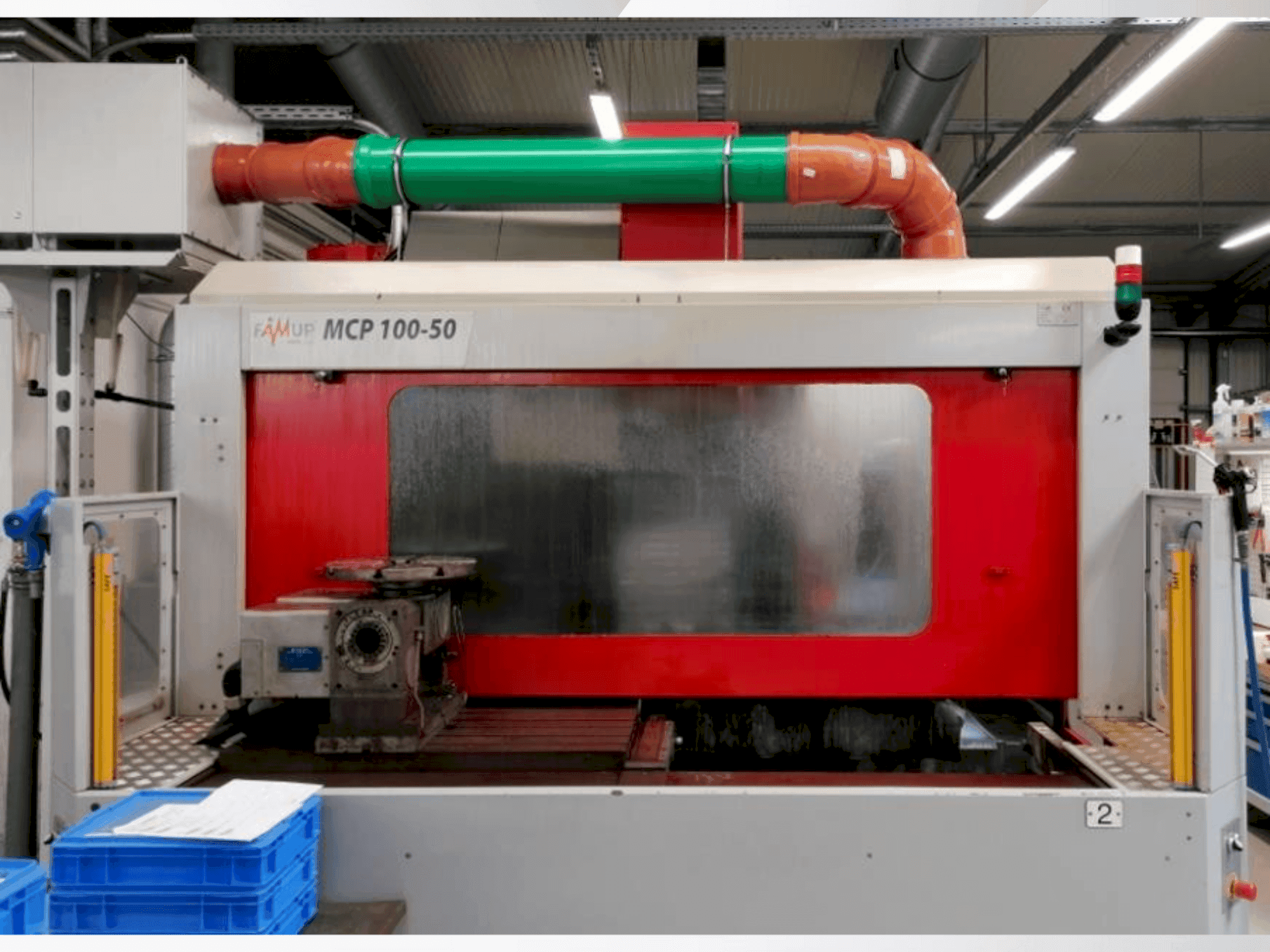

This 3-axis EMCO FamUp MCP 100-50 vertical machining center was manufactured in 2007. It features a Siemens 840-D control system, a 2-fold pallet changer, and a 30-fold tool changer with holders. The machine includes a screw chip conveyor and a fully protected cabin with safety doors. Ideal for operations requiring a table load up to 600 kg and speeds up to 10,000 rpm. Reach out for further details regarding this vertical machining center.
Overview
- brand: EMCO
- year: 2007
- MODEL: FamUp MCP 100-50
- application type: Milling
- Location: Germany
- machine type: Vertical Machining Centre
- control unit brand: SIEMENS
Technical Information - EMCO FamUp MCP 100-50
Control Unit
- Control Brand: SIEMENS
- Control Model: 840-D
Dimensions
- Table Length: 1000 mm
- Table Load: 600 kg
- Table Width: 450 mm
Movement
- Number of Axes: 3
- X-axis Travel: 1100 mm
- Y-axis Travel: 500 mm
- Z-axis Travel: 640 mm
Technical Specification
- Spindle Power: 14 kW
- Spindle Speed: 12000 RPM
Additional Information
Additional equipment
2-fold pallet changer
1 spindle cooling
Linear guide
30-fold tool changer incl. tool holders
Coolant preparation with cooling incl. filter unit
Screw chip conveyor
Fully protected cabin with safety doors, electrically fused
Ball screw in all axes
The spindle is an LC 100
Machine Benefits
Technical Machine Benefits
Machine only ran in 1-shift operation, maximum 3 days a week
Extra Information
Machine still under power
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
