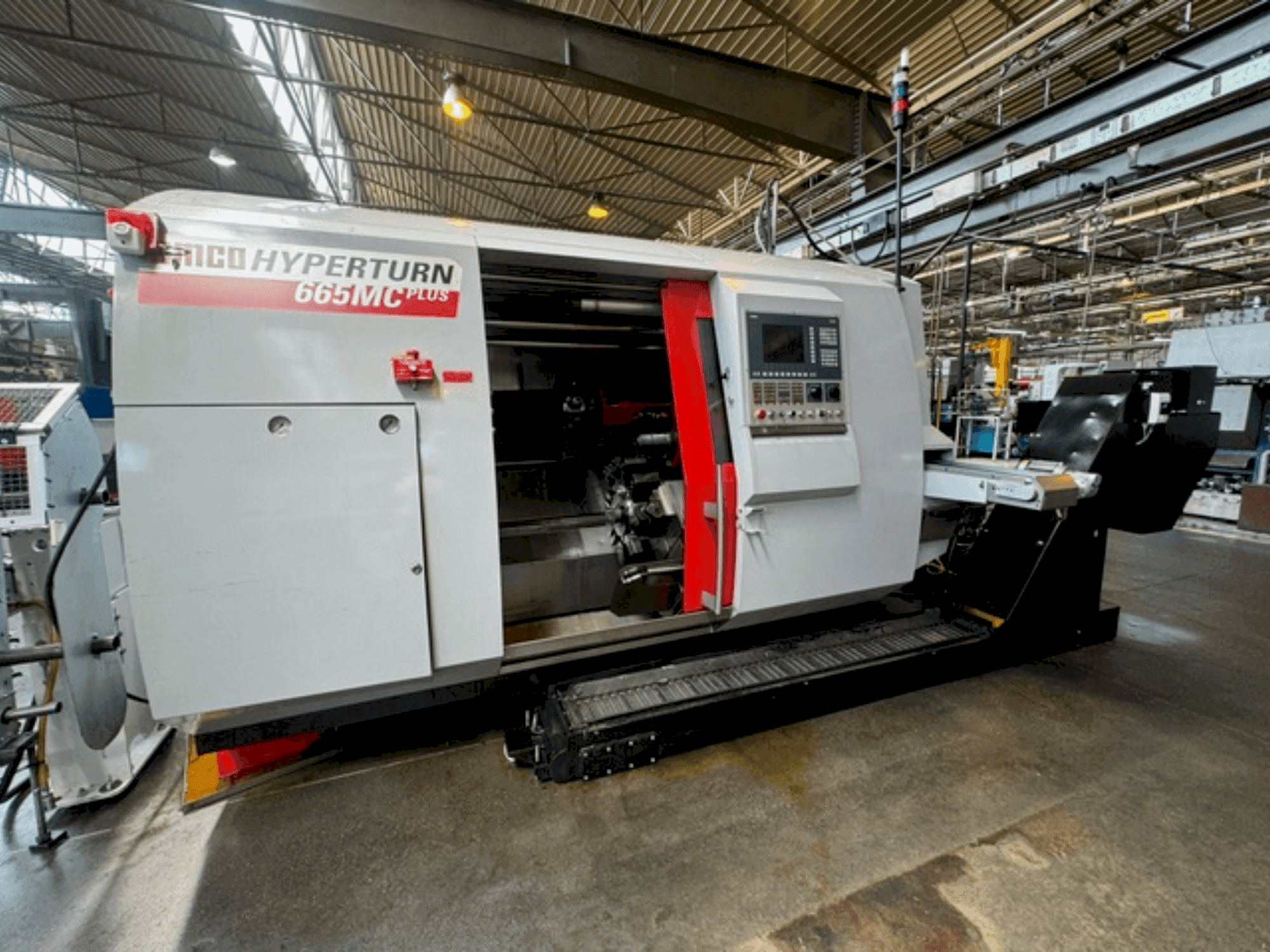

EMCO - HYPERTURN 665 MC PLUSFR-TUR-EMC-2005-00001

Machine Benefits

Qualitative Machine Benefits

• High precision and repeatability, enhanced productivity.
• Very good condition

Technical Machine Benefits

• 300-liter high-pressure coolant system
• Twin-spindle and twin-turret configuration, advanced control unit.
• Maximum turning diameter: 600 mm
• Turning diameter over carriage: 500 mm
• Distance between the two spindles: 1,000 mm
• Maximum swing diameter: 430 mm
• Workpiece length: 744 mm
• Maximum workpiece envelope with tailstock: Ø200 x 200 mm
• Bar passage diameter: 65 mm

Extra Information

X/X2 axis travel: 280/205 mm Z/Z2/Z3 axis travel: 900/750/750 mm Y-axis travel: 100 mm (upper turret) +/- 50 mm Torque: 250 Nm Counter spindle speed: 0 - 7,000 rpm – Max torque: 130 Nm C-axis resolution: 0.001° C-axis rapid traverse: 100 rpm Lower/upper turrets: 2 x 12 stations, all motorized VDI30 Turret indexing time: 0.2 sec Motorized tool drive power: 6.7 kW Motorized tool rotation speed: 0-4,000 rpm Electrical power, connected load: 46 kVA CNC: SIEMENS 840D Ethernet port 3-color status lamp LNS MOVE bar feeder: bar length 700/2,100 mm – bar Ø 8/80 mm – 7-bar magazine 2 collet chucks 19 axial motorized tool holders 4 radial motorized tool holders 40 static axial and radial tool holders Upper parts catcher with conveyor belt High-pressure coolant system: 300 liters, 2 pumps of 2.2 kW Spindle oil cooler Air-conditioned cabinet Fire extinguisher Complete documentation Electrical power, connected load: 46 kVA Tool holders included, which comprise 19 axial motorized tools, 4 radial motorized tool holders, and 40 static axial/radial tool holders.
