EMCO TURN E 65

Photo Gallery

EMCO - TURN E 65BA-TUR-EMC-2009-00001

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used EMCO TURN E 65 - Lathe For Sale | gindumac.com

Show in original language

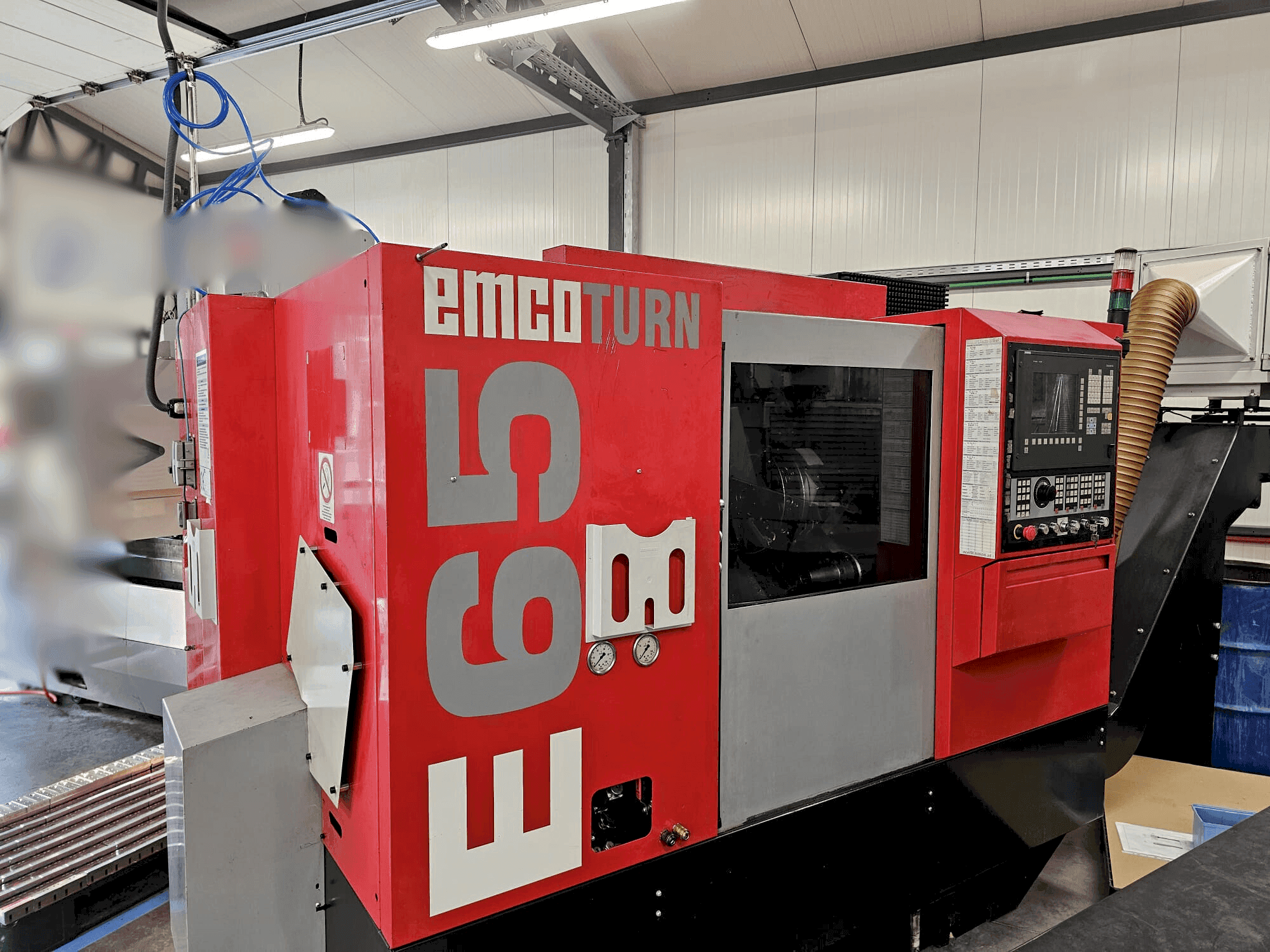

This EMCO TURN E 65 lathe was manufactured in 2009. It features a swing diameter over bed of 600 mm and a maximum turning diameter of 680 mm. The spindle supports a max. chuck size of 250 mm and operates with a speed range up to 4200 min^-1. Ideal for precision tasks, the EMCO TURN E 65 machine we have for sale offers robust performance with its AC motor and hydraulic tailstock. Contact us for further details regarding this lathe.

Overview

brand: EMCO
year: 2009
MODEL: TURN E 65
application type: Turning
Location: Bosnia and Herzegovina
machine type: Horizontal Turning Machine
control unit brand: SIEMENS

Technical Information - EMCO TURN E 65

Control Unit

Control Brand: SIEMENS
Control Model: Sinumerik 810

Movement

X-axis Travel: 65 mm
Z-axis Travel: 210 mm

Technical Specification

Max. Workpiece Diameter: 680 mm
Spindle Power: 15 kW
Spindle Speed: 4200 RPM

Additional Information

Machine Benefits

Qualitative Machine Benefits

Acceleration time from 0 to rapid traverse: 0. 2 s
C-axis (spindle 1 and 2) rapid traverse: 1000 min^-1
Resolution of the rotary axis: 0. 01°

Technical Machine Benefits

Distance spindle nose (chuck flange) - tailstock center: 310 mm
Max. Bar diameter: 520 mm
Spindle outer diameter in front bearing: 100 mm
Main spindle clamping system: hollow chuck with drawbar, max. Passage 66. 5 mm
Max. Chuck size: 250 mm
Max. Torque: 192 nm
Max. Tailstock pressure: 8000 n
Tailstock travel: 500 mm
Tailstock spindle speed: 20 m/min
Inner cone of the tailstock spindle: mk4

Extra Information

Machine still under power

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
