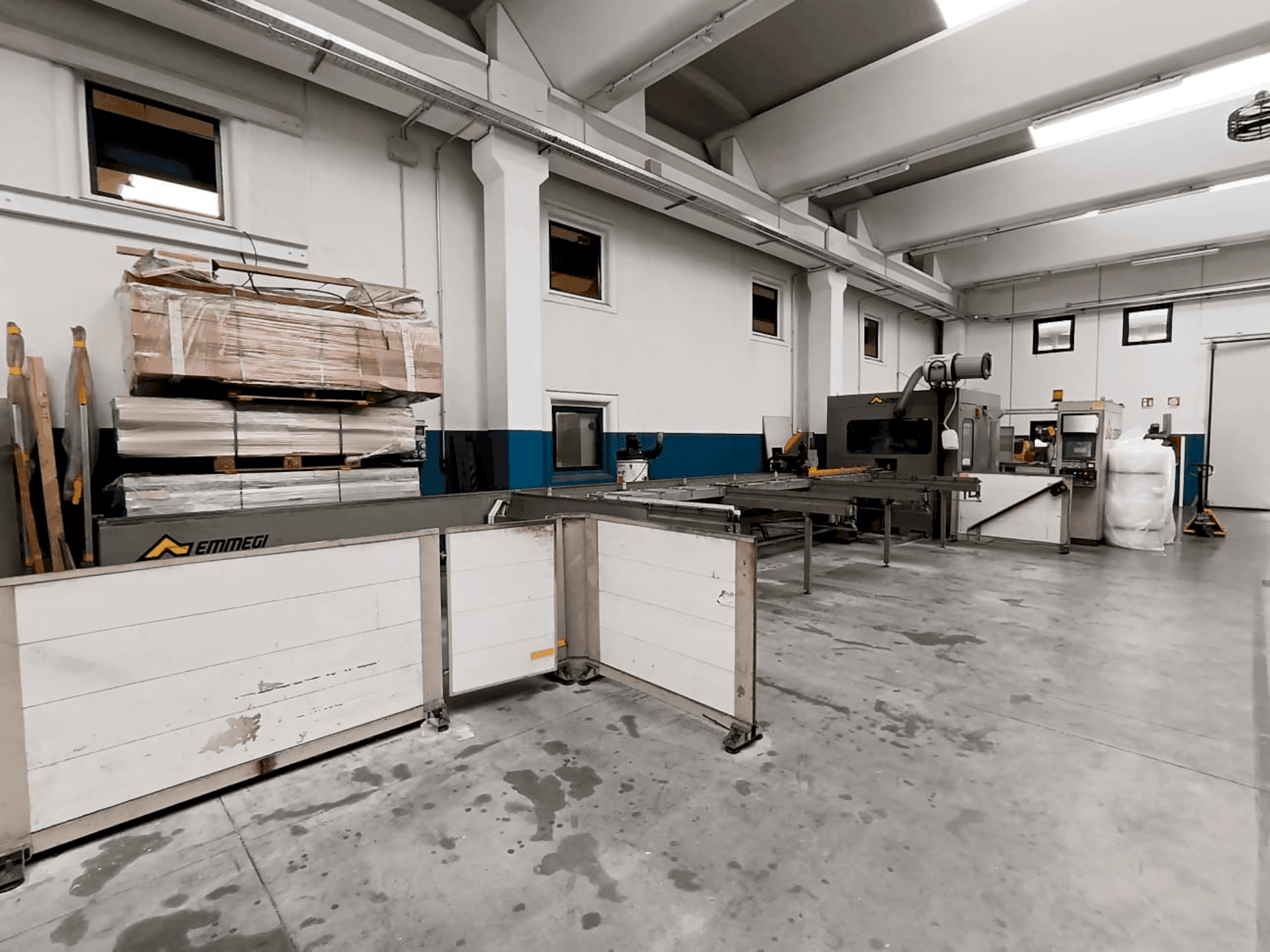

Front view of Emmegi Quadra  machine

Emmegi - QuadraIT-MIL-EMM-2005-00001

52,000 €
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

Click to chat on WhatsApp
Show in original language

This 5-axis Emmegi Quadra was manufactured in 2005, featuring a robust ISAC SAB 9500 control unit and a high-speed 20,000rpm spindle. It can handle bars up to 7500 mm in length and has a maximum feedable weight of 500 kg. Ideal for complex machining tasks, the Emmegi Quadra machine we have for sale offers precision and versatility. Contact us for more information.


  • brand: Emmegi
  • year: 2005
  • MODEL: Quadra
  • application type: Milling
  • Location: Italy
  • machine type: Machining centers (universal)
  • availability: Immediately
  • control unit brand: ISAC

Technical Information - Emmegi Quadra

Control Unit

  • Brand: ISAC
  • Model: SAB 9500

Main drive

  • Spindle speed range: 20000 1/MIN
  • Spindle motor power: 4,5 kW
  • Number of axis: 5


  • X-AXIS Movement: 240 mm
  • Y-AXIS Movement: 350 mm
  • Z-AXIS Movement: 350 mm
  • U-Axis Movement: 9500 mm
  • A-AXIS Movement: 360º MM


  • Workpiece weight: 500 kg

    Additional Equipment

    • - Max length of the feedable bars: 7500 mm
    • - Min length of bars that can be fed in automatic mode: 3000 x 1550 mm

    *There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
