- ➤ Used ENGEL e-victory 740H/50W/220 combi + Viper 20 For sale

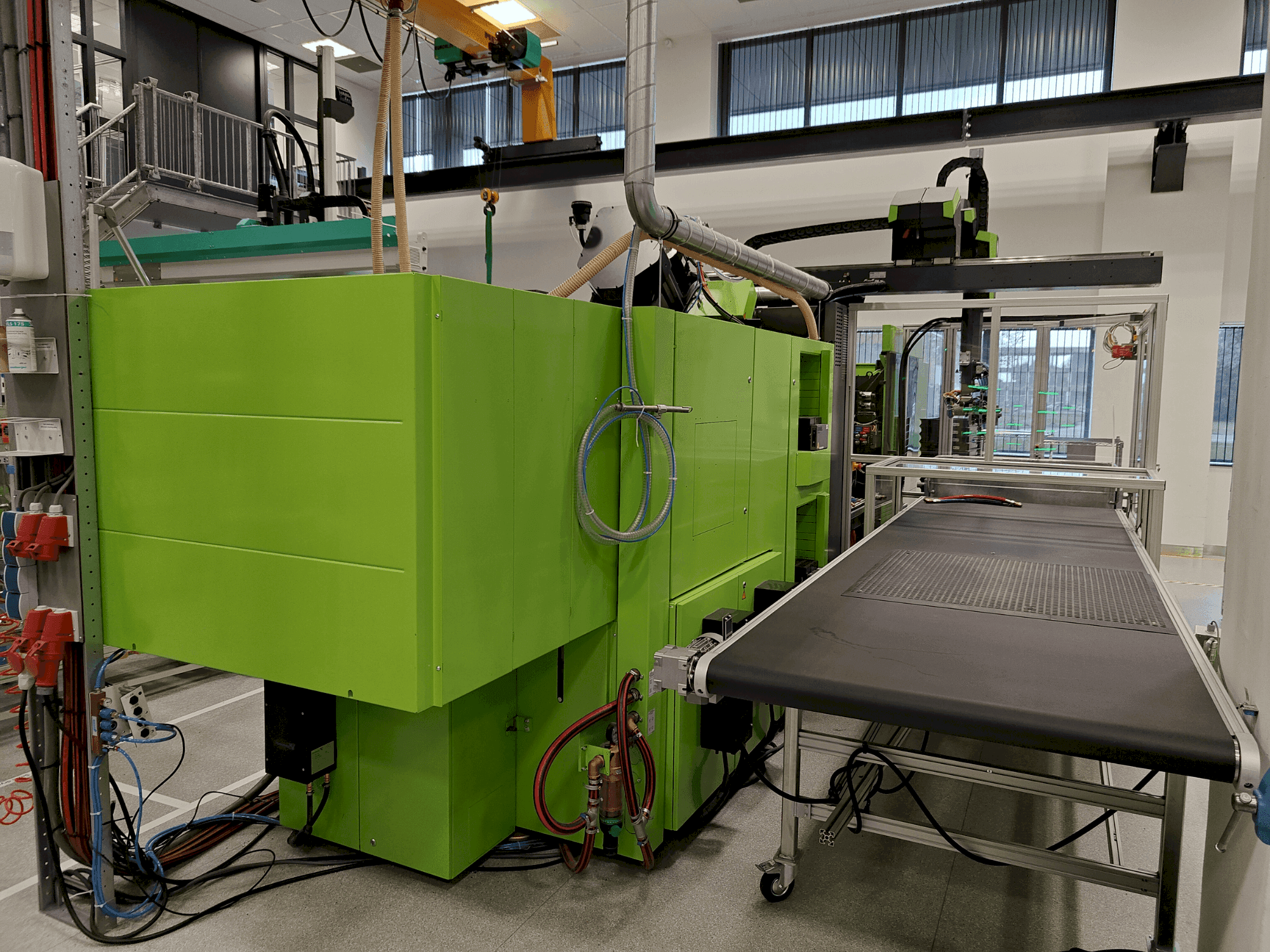

This ENGEL e-victory 740H/50W/220 combi + Viper 20 injection moulding machine was manufactured in 2016. It features dual injection units with maximum injection rates of 279.45 cm³/s and 103.67 cm³/s respectively, and high injection pressures up to 2400 bar. The clamping force is robust at 2200 kN, with a generous platen size for diverse mold sizes. Consider the ENGEL e-victory machine we have for sale. Contact us for more information about this injection moulding machine.
Overview
- brand: Engel
- year: 2016
- MODEL: e-victory 740H/50W/220 combi + Viper 20
- application type: Injection Moulding
- Location: Netherlands
- machine type: Injection Moulding Machines
- availability: Immediately
Technical Information - Engel e-victory 740H/50W/220 combi + Viper 20
General Data
- Machine weight: 14700 kg
Injection Unit
- Screw diameter: 45 mm - 20 mm // Extra screw of 55mm and 20mm
- Injection pressure: 2400 bar / 2000 bar
- Screw speed: 300 min-1 / 450 min-1
- Nozzle pressure: 67.2 kN / 50.3 kN
Clamping unit
- Clamping force: 2200 kN
- Opening stroke: 750 mm
- Mould height min: 300 mm
- Mould height max: 3000 kg
Additional Information
- Technical Machine Benefits:
- - Max distance between platen: 1050 mm
- - Platen size standard (hxv): 880 x 830 mm
- - Enlarged platen size (hxv): 980 x 830 mm
- - Dry cycle stroke: 250 mm // dry cycle time: 2. 00 s
- - L/d ratio: 20. 0 (3-zone) and 24. 0 (3-zone, barrier)
- - Recovery rate: 31. 3 g/s and 6. 0 g/s
- - Injection rate: 279. 45 cm³/s and 103. 67 cm³/s
- - Screw stroke: 200 mm and 80 mm
- - Nozzle stroke: 405 mm and 160 mm // nozzle cont. Pressure: 67. 2 kn and 50. 3 kn
- - Heating zones incl. Nozzle: 6 zones each //heating wattage: 20. 5 kw and 6. 9 kw
- - MACHINE STILL UNDER POWER
Machine Benefits
Extra information
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
