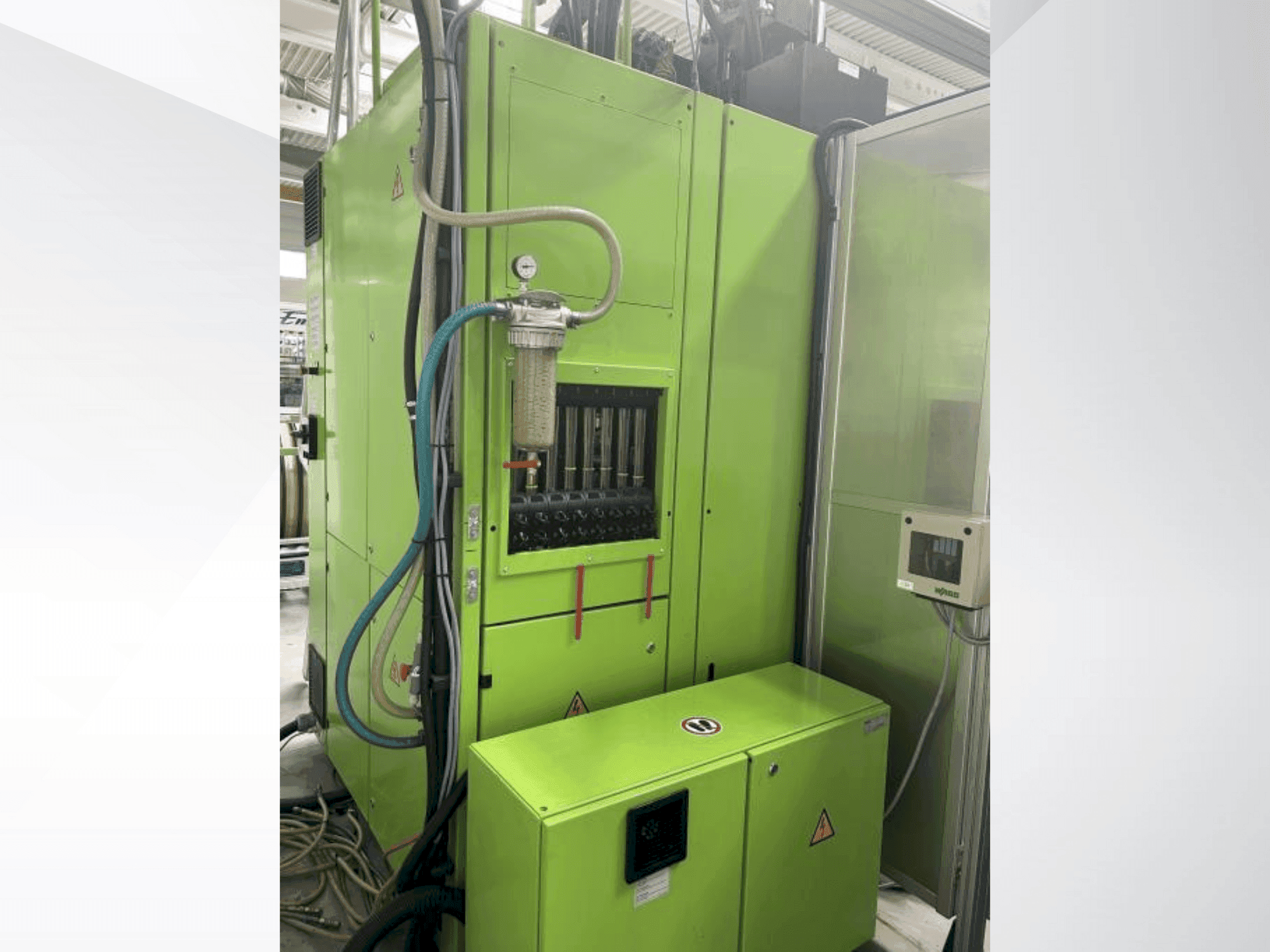

This Engel Insert 200V/60 rotary was manufactured in 2013. A vertical injection moulding machine, it represents a reliable option for precision moulding tasks. Consider the opportunity to buy this Engel Insert 200V/60 rotary vertical injection moulding machine. Contact us for more information.
Overview
- brand: Engel
- year: 2013
- MODEL: Insert 200V/60 rotary
- application type: Injection Moulding
- Location: Germany
- machine type: Vertical Injection Moulding Machine
Technical Information - Engel Insert 200V/60 rotary
Technical Specification
- Clamping Force: 800 kN
- Screw Diameter: 25 mm
Additional Information
Max swept volume: 192 cm³, 251 cm³, 318 cm³
Injection rate: 151 cm³/s, 197 cm³/s, 250 cm³/s
Increased injection rate: 98 cm³/s, 128 cm³/s, 162 cm³/s
Increased specific injection pressure: 2390 bar, 2023 bar, 1598 bar
Nozzle stroke: 300 mm
Pump drive power: 15 kw
Viper is included / 43684 operating hours
Core pull available
Two temperature control connections
Needle valve not available
Mould heating with 8 zones available
Machine still under power
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
