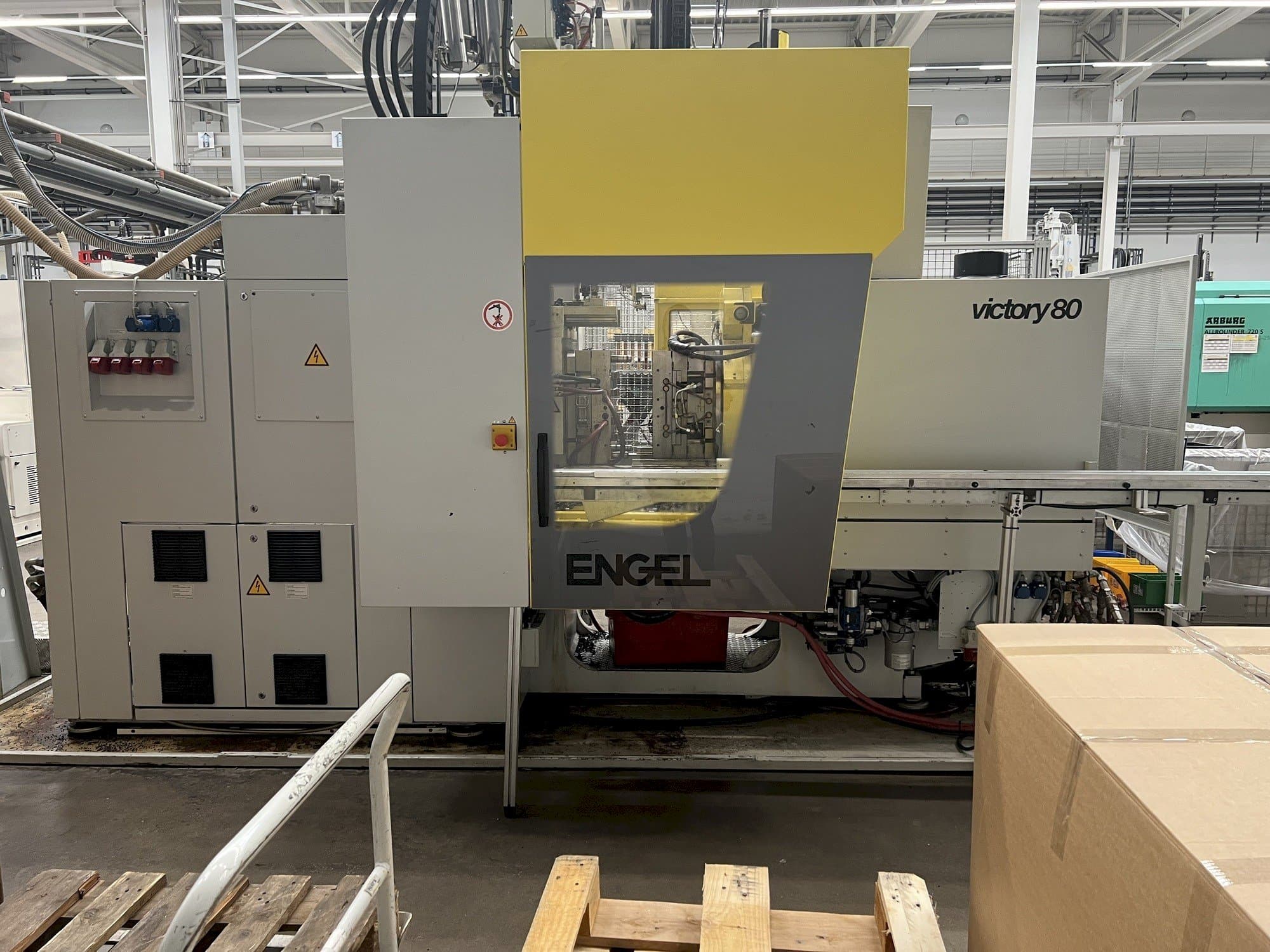

This Engel VC 330H/80V/80CO Injection moulding machine was manufactured in the year 2011 and has 45831 hours, of which 32201 are handling hours. It is equipped with an ENGEL control unit and has 3 axis. The machine has a clamping force of 800 kN and a screw diameter of 18-40 mm.
Overview
- brand: Engel
- year: 2011
- MODEL: VC 330H/80V/80CO
- production hours: 45831
- application type: Injection Moulding
- Location: Germany
- machine type: Injection Moulding Machines
- availability: Sold
- control unit brand: ENGEL
Technical Information - Engel VC 330H/80V/80CO
Control Unit
- Brand: ENGEL
Main drive
- Number of axis: 3
Injection Unit
- Screw diameter: 18-40 mm
- Injection pressure: 1665 -2193 bar
Clamping unit
- Clamping force: 800 kN
- Opening stroke: 450 mm
Additional Information
- Technical Machine Benefits:
- - Min. Wkz installation height : 200 mm
- - Centring ring Ø (ds/as) : 125/160
- - Max. Stroke volume (cm^3) 201/25
- - Core pulls: 2(bwap)
- - Kistler yes
- - Number of channels: 1
- - Handling: 3-axis cnc robot
Machine Benefits
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
