➤ Used ERGOMAT TBC-42 For Sale | gindumac.com

Show in original language

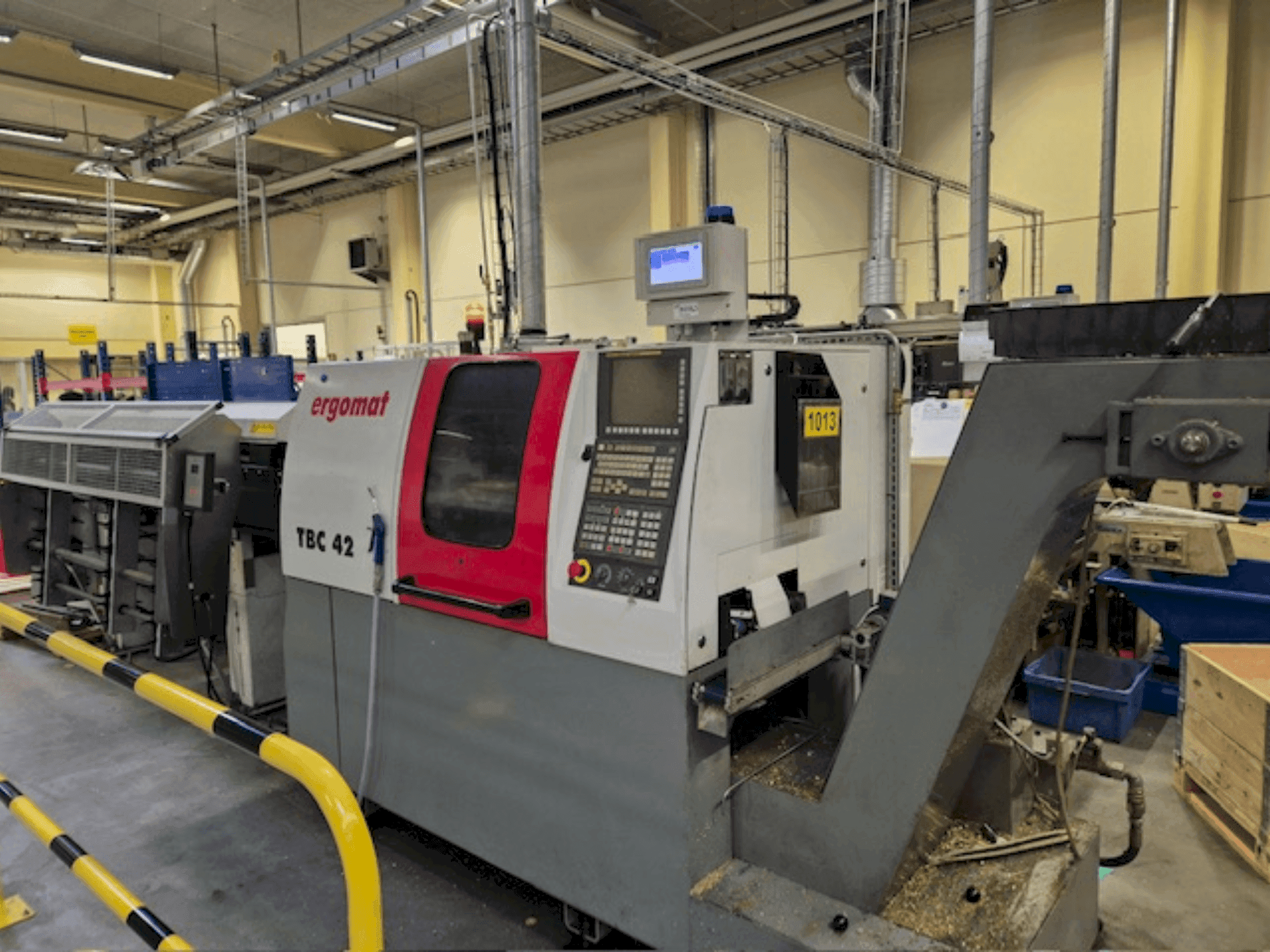

This 6-axis ERGOMAT TBC-42 Swiss Turning Machine was manufactured in 2012. It features a maximum material diameter of 42 mm and a spindle speed up to 5000 rpm. Equipped with a Fanuc 18i-TB Dual Path control, it offers precision and versatility with 8 tool positions and rapid feed rates up to 30 m/min. If you are looking to get high-quality turning capabilities consider the ERGOMAT TBC-42 machine we have for sale.Contact us for more information.

Overview

brand: ERGOMAT
year: 2012
MODEL: TBC-42
application type: Turning
Location: Sweden
machine type: Swiss Type Turning Machine
control unit brand: FANUC

Technical Information - ERGOMAT TBC-42

General Data

Measurements width: 1270 mm
Measurements depth: 2630 mm
Measurements height: 1580 mm
Machine weight: 2500 kg

Control Unit

Brand: FANUC
Model: na

Main drive

Spindle speed range: 5000 rpm 1/MIN
Spindle motor power: 7.5 kW
Number of axis: 6

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Main spindle power (intermittent): 11. 0 kw
- - Main spindle torque (continuous): 95. 5 nm
- - Rapid feed cross slide x1/z1: 15/15 m/min
- - Rapid feed turret slide x2/z2: 15/30 m/min
- - Rapid feed vertical slide v1/v2: 15/15 m/min
- - Thrust on all axes: 2500 n

Extra information

- Turret Tool positions: 8 Tool section: 16 x 16 mm Tool holder diameter: 25 mm Standard tool holder: VDI 25 Switching time station to station: 0.3 sec Switching time additional station: 0.06 sec Switching time 180°: 0.48 sec Tools Live tool positions: 8 Live tool holder shaft diameter: 25 mm Live tool power (continuous): 1.1 kW Live tool power (intermittent): 3.7 kW Live tool torque: 7 Nm Live tool maximum speed: 6000 rpm

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
