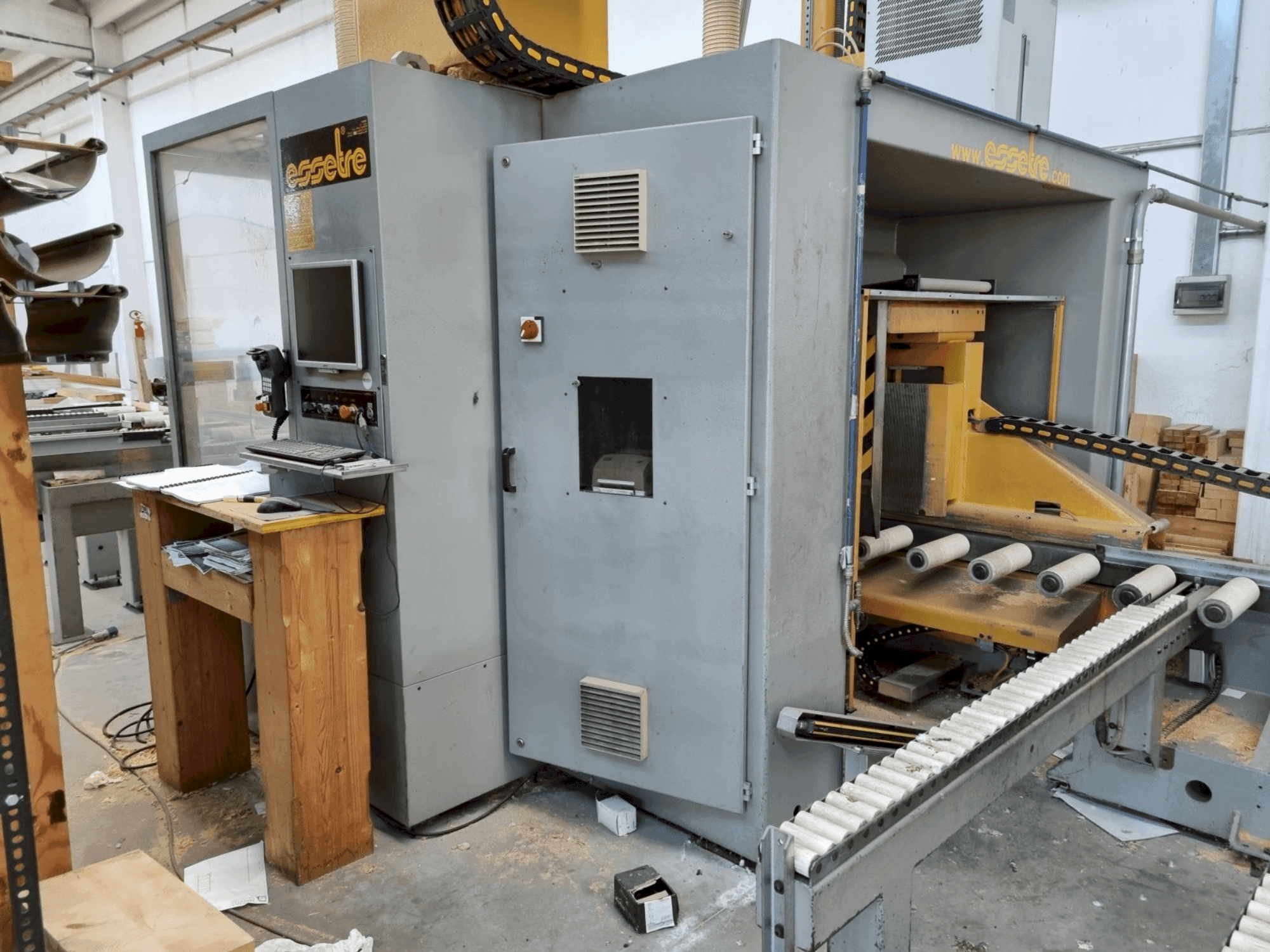

This ESSETRE TECHNO was manufactured in 2007. A CNC Wood Machining Centre featuring a Z-axis stroke of 1320 mm and a maximum electrospindle power of 12 kW at 7000 rpm. It supports tool sizes from 3 to 30 mm with a manual clamping system. Ideal for diverse woodworking applications. Contact us for more information about this machine.
Overview
- brand: ESSETRE
- year: 2007
- MODEL: TECHNO
- application type: CNC Wood Machining
- Location: Hungary
- machine type: CNC Wood Machining Centre
Technical Information - ESSETRE TECHNO
Additional Information
- Technical Machine Benefits:
- - Maximum speed x-axis: 75 m/min / maximum speed y and v axes: 75 m/min / maximum speed z-axis: 35 m/min / maximum c-axis rotation speed: 25 rpm / maximum b-axis rotation speed: 28 rpm / nominal machine power: 90 kw / power supply voltage (three-phase): 380 v ±10% / power supply frequency: 50 hz ±1% / electrical absorption: 150 a / maximum short-circuit current of the power line: 6 ka / weight (kg): 18200
- - Electrospindle power: 12 kw at 7000 rpm / programmable electrospindle rotation speed: 1000 to 18000 rpm / tool holder interface: hsk-63f
- - X-axis stroke: 2100 mm with 2-head setup / 2720 mm with 1-head setup / y1/y2-axis stroke: 7700 mm / z-axis stroke: 1320 mm / usable working width on x-axis: 400 mm / usable working height on z-axis: 800 mm / c-axis rotation (electrospindle support): ±270° / b-axis rotation (electrospindle tilt): ±125°
- - Work table height: 700 mm
- - Diameter of cylindrical tools: 3 to 30 mm / tool clamping system: manual with clamp / tool holder length: 50 mm
- - Operating pneumatic pressure: 8 bar / pneumatic supply connection: 1/2" gas/ average compressed air consumption: 2500 nl/min / centralized lubrication tank capacity: 2. 7 liters
Machine Benefits
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
