FAMUP - MCP 60 E IT-MIL-FAM-2002-00003

13,000 €
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer

Do you have further questions? Contact us.

sales contact

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

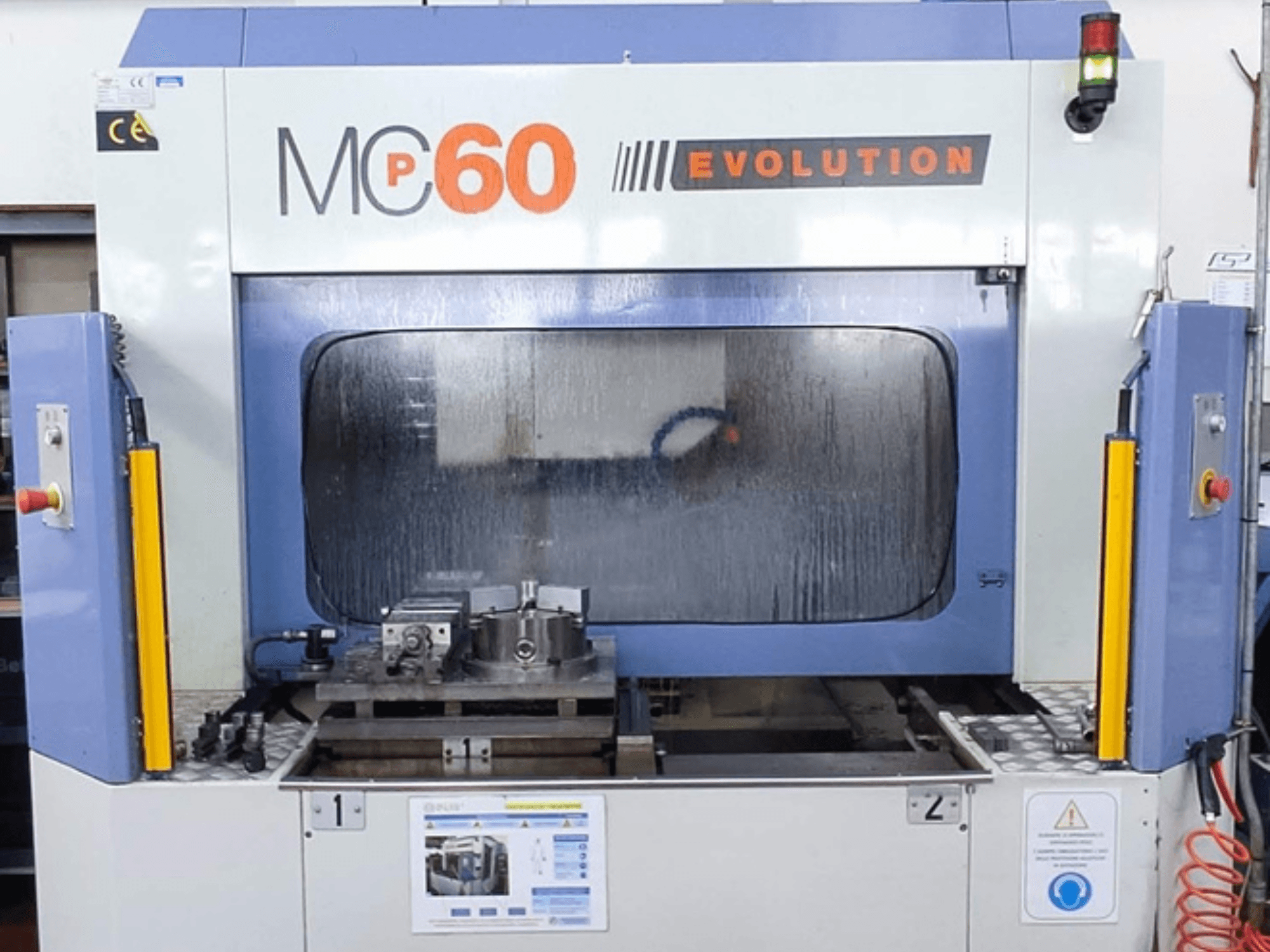

This 3-axis FAMUP MCP 60 E was manufactured in 2002. It features an X-axis travel of 600 mm, Y-axis travel of 400 mm, and Z-axis travel of 570 mm. The machine includes a table size of 500 x 450 mm and a maximum table load of 300 kg. If you are looking to get high-quality machining capabilities, consider the FAMUP MCP 60 E vertical machining centre we have for sale. Contact us for further details.

Overview

  • brand: FAMUP
  • year: 2002
  • MODEL: MCP 60 E
  • application type: Milling
  • Location: Italy
  • machine type: Vertical Machining Centre
  • control unit brand: FANUC

Technical Information - FAMUP MCP 60 E

Control Unit

  • Control Brand: FANUC

Dimensions

  • Machine Height: 2937 mm
  • Machine Length: 3216 mm
  • Machine Weight: 4100 kg
  • Machine Width: 3090 mm
  • Table Load: 300 kg

Movement

  • Number of Axes: 3
  • X-axis Travel: 600 mm
  • Y-axis Travel: 400 mm
  • Z-axis Travel: 570 mm

Technical Specification

  • Max. Tool Weight: 6 kg
  • Spindle Power: 11 kW
  • Spindle Speed: 10000 RPM
  • Taper Size: ISO 40
  • Tool Stations: 24

Additional Information

  • Pallet/Table:

    • Table size: 500 x 450 mm

    • T-slots: 2 x 14 x 125 mm

    • Central bore: Ø50 H6

    • Pallet change time: 9 s

  • Axis performance:

    • Working feedrate X/Y/Z: 10,000 mm/min

    • Rapid feedrate X/Y/Z: 30,000 mm/min

    • Working thrust S1 X/Y: 3,300 N

    • Working thrust S1 Z: 7,200 N

  • Measurement system:

    • Indirect measuring system

  • Accuracy:

    • Positioning accuracy X/Y/Z: ±5 µm

    • Repeatability X/Y/Z: ±1.5 µm

    • Reversal accuracy: 3 µm

  • Tool changer:

    • Selection: Bidirectional

    • Max. tool diameter: Ø75 mm

    • Max. tool length: 250 mm

    • Tool change time: 1.7 s

    • Chip-to-chip time: 2.5 s

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
