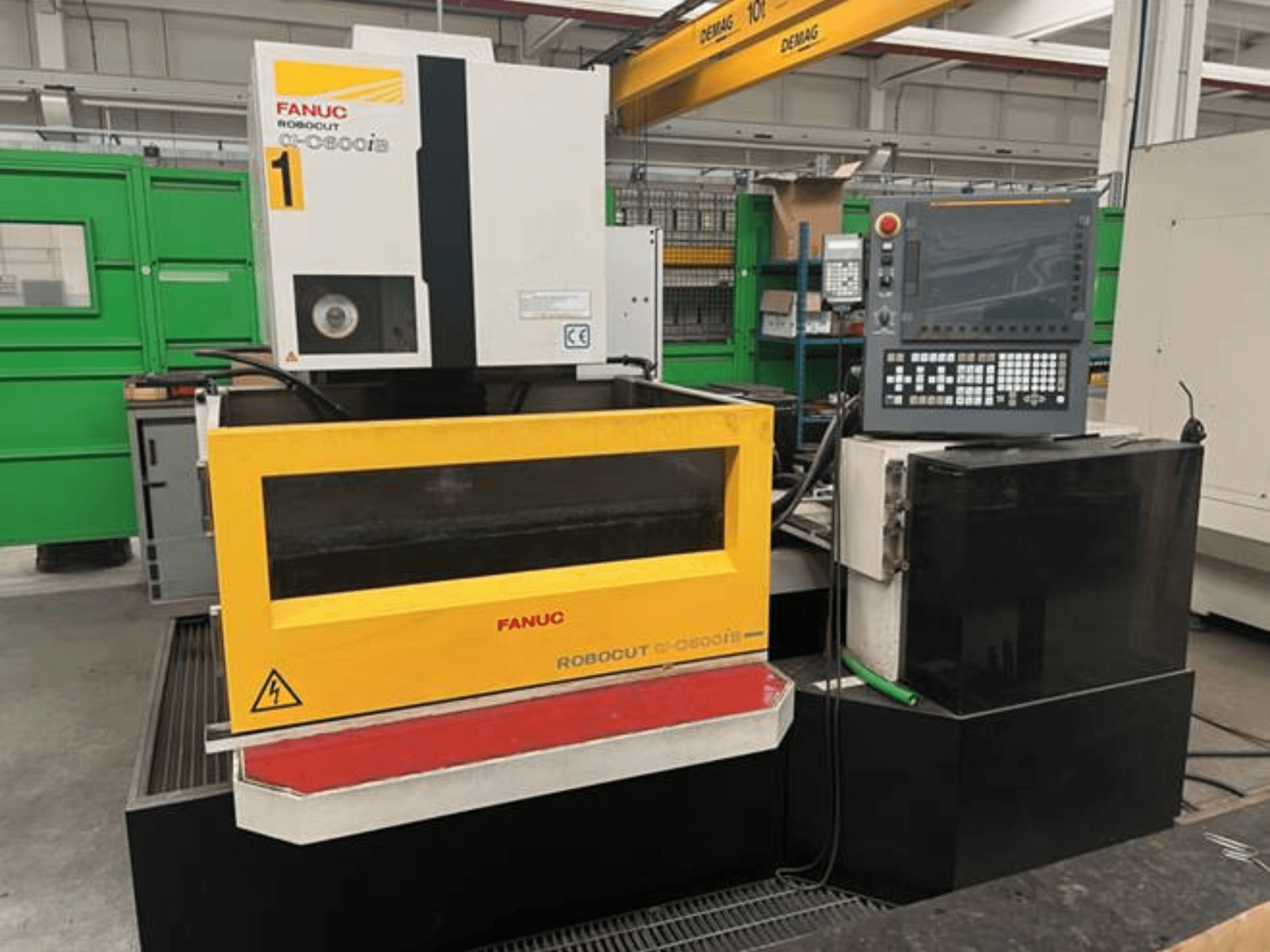

This 5s FANUC C600IB wire edm machine was manufactured in 2019. It features a maximum workpiece dimension of 1,050 × 820 × 300 mm and can handle a weight of up to 1,000 kg. With a travel range of 600 mm in the X axis and 400 mm in the Y axis, consider the opportunity to buy this FANUC C600IB wire edm machine. Contact us for further details.
Overview
- brand: FANUC
- year: 2019
- MODEL: C600IB
- application type: EDM
- Location: Italy
- machine type: Wire EDM Machine
- control unit brand: FANUC
Technical Information - FANUC C600IB
Control Unit
- Control Brand: FANUC
- Control Model: 31i-WB
Dimensions
- Machine Depth: 2680 mm
- Machine Weight: 3000 kg
- Table Width: 2440 mm
Movement
- Number of Axes: 5
- X-axis Travel: 600 mm
- Y-axis Travel: 400 mm
- Z-axis Travel: 310 mm
Additional Information
Workpiece
Max. workpiece dimensions: 1,050 × 820 × 300 mm
Max. workpiece weight: 1,000 kg
Travels
U/V axis travel: 200 / 200 mm
Cutting / Accuracy
Max. taper angle: ±30° (at 75 mm)
Min. step increment of drives: 0.0001 mm
Wire diameter: Ø 0.10 – 0.30 mm
Max. wire weight: 16 kg
Control
Controller: FANUC 31i-WB
Part program storage: 4 MB
Noise level
LPA: 64 dB
LPCpeak: 81 dB
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
