FANUC - Arc mate 0iBBG-ROB-FAN-2014-00001
Do you have further questions? Contact us.

Borja Garcia
+34 679 019 350
b.garcia@gindumac.com

- GINDUMAC
- Products
- Automation Equipment
- Fanuc Arc mate 0iB Robot

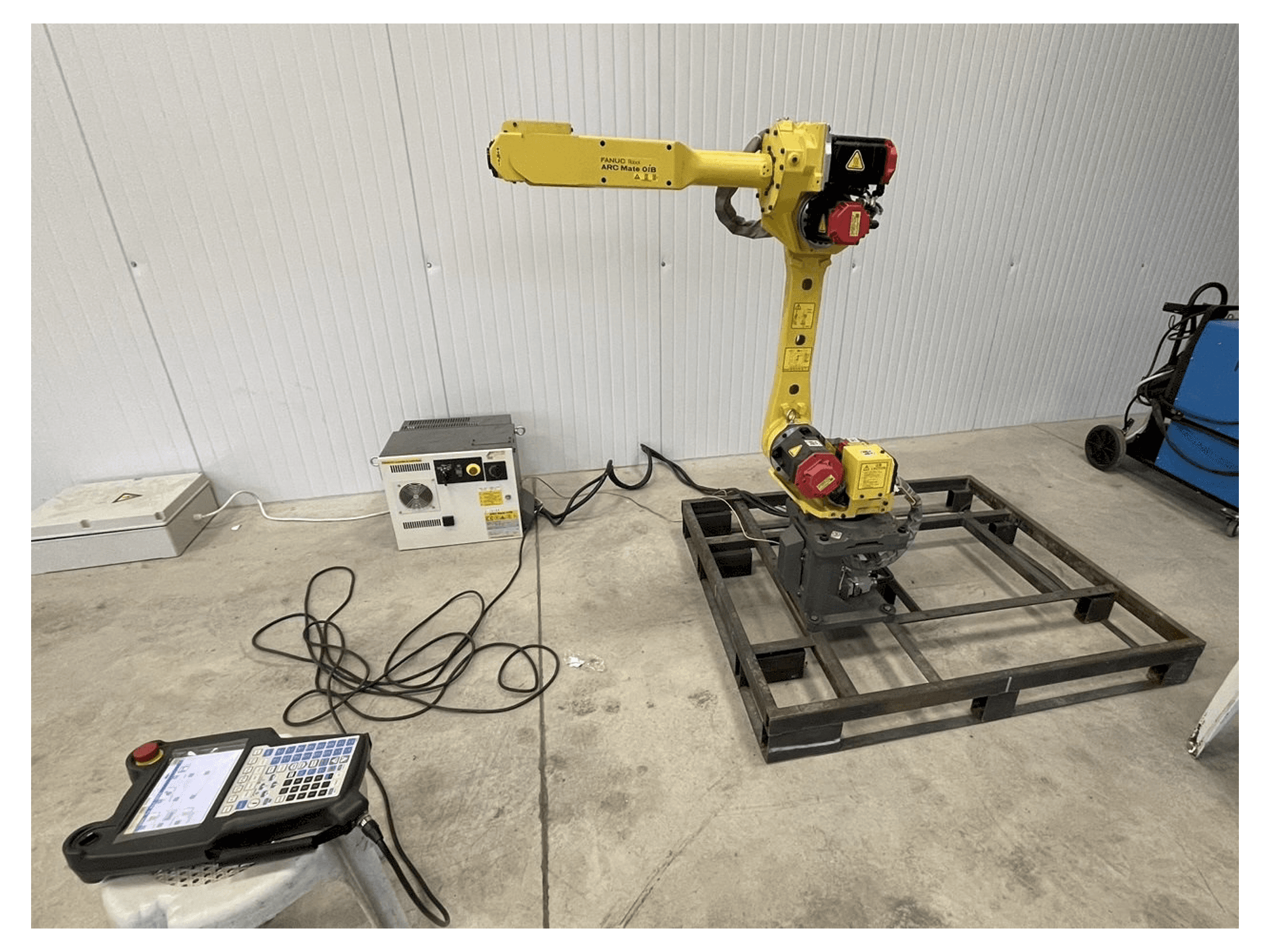

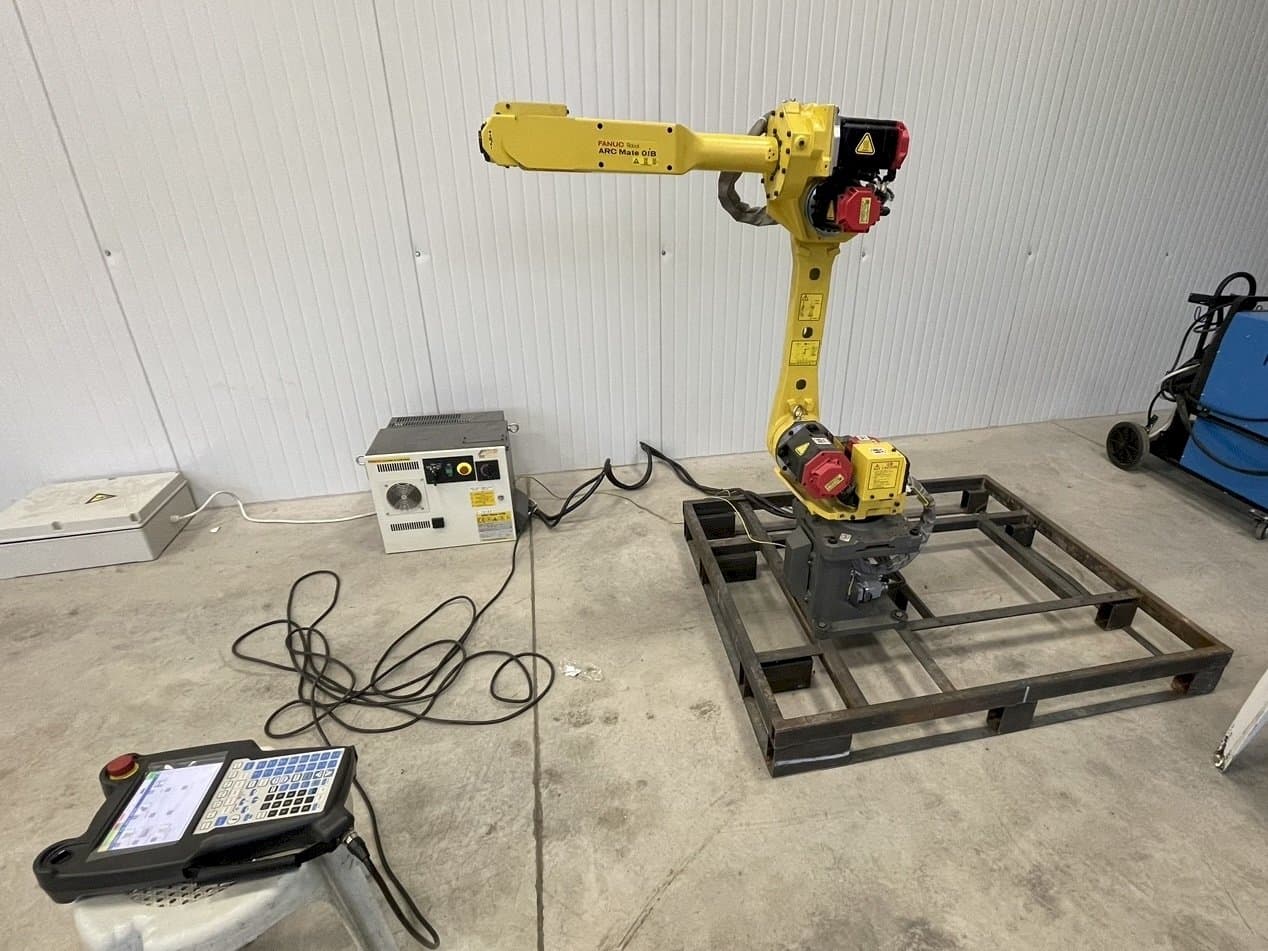

This Fanuc Arc mate 0iB Robot was manufactured in the year 2014 in Japan. It is equipped with a Fanuc 30iB control unit and has 6 axis. The machine has a maximum horizontal reach of 1437 mm.
Overview
- brand: FANUC
- year: 2014
- MODEL: Arc mate 0iB
- application type: Robotics
- Location: Bulgaria
- machine type: Robot Arm
- availability: Sold
- control unit brand: FANUC
Technical Information - FANUC Arc mate 0iB
Control Unit
- Brand: FANUC
- Model: 30iB
Main drive
- Number of axis: 6
Additional Information
- Technical Machine Benefits:
- - Maximum load of robot: 3 kg
- - Maximum horizontal reach: 1437 mm
- - Repeatability: ± 0. 08
- - Motion range (°): axis 1: 360°, axis 2: 250°, axis 3: 455°, axis 4: 380°, axis 5: 280°, axis 6: 720°.
- - Maximum speed (°/s): axis 1: 225°/s, axis 2: 215°/s, axis 3: 225°/s, axis 4: 425°/s, axis 5: 425°/s, axis 6: 625°/s
- - Arc welding
- - Laser welding
- - Cutting
Machine Benefits
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
