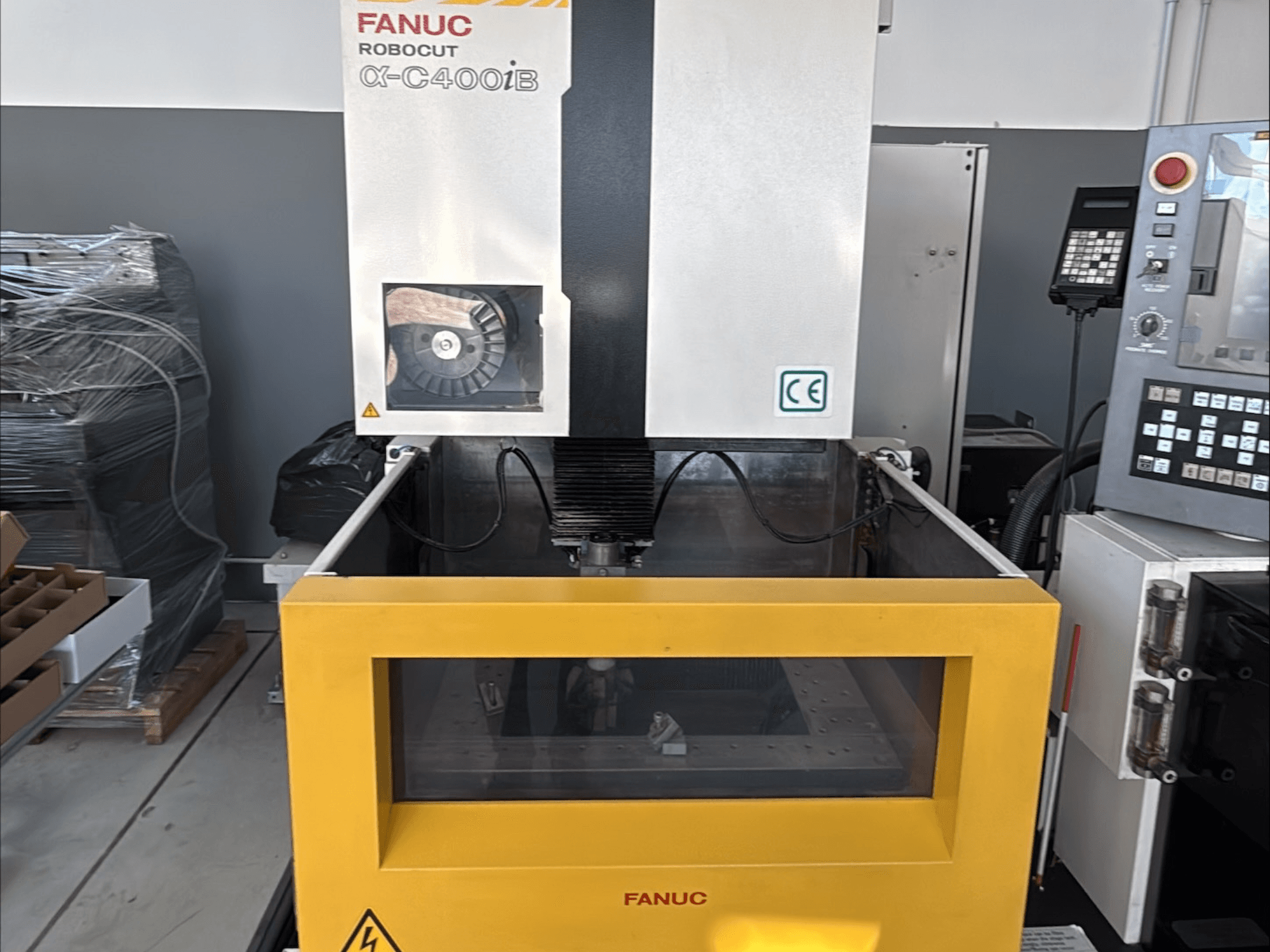

Wire EDM machine manufactured in 2018. This FANUC Robocut alpha-C400iB offers advanced cutting capabilities. If you are looking to get high-quality wire EDM capabilities, consider the FANUC Robocut alpha-C400iB machine we have for sale. Contact us for further details.
Overview
- brand: FANUC
- year: 2018
- MODEL: Robocut alpha-C400iB
- application type: EDM
- Location: Italy
- machine type: Wire EDM Machine
- control unit brand: FANUC
Technical Information - FANUC Robocut alpha-C400iB
Control Unit
- Control Brand: FANUC
- Control Model: 31i-WB
Dimensions
- Machine Weight: 1800 kg
- Machine Width: 1990 mm
Movement
- Number of Axes: 5
- X-axis Travel: 400 mm
- Y-axis Travel: 300 mm
- Z-axis Travel: 255 mm
Additional Information
Workpiece capacity: max dimensions 730 × 630 × 250 mm; max workpiece weight 500 kg
Axis travel: U/V 120 × 120 mm
Machining capability: max taper angle ±30°/80 mm; minimum drive increment 0.0001 mm; wire diameter Ø0.10–Ø0.30 mm; max wire spool weight 16 kg
Controller: FANUC 31i-WB; part program storage 4 MB
Acoustic noise: LPA 64 dB; LPCpeak 81 dB
Optional specifications:
Thin wire option: wire diameter Ø0.05–Ø0.07 mm
Automatic front door option: max workpiece dimensions with auto door 730 × 585 × 250 mm
45° die guide option: max taper angle ±45°/40 mm
30 kg wire feed unit option: max wire spool weight 30 kg
Installation conditions:
Power supply: AC 200V ±10%, 3-phase, 50/60 Hz ±1 Hz; AC 220V ±10%, 3-phase, 60 Hz ±1 Hz; connection cable terminal size 8-5; power consumption 13 kVA
Air supply: 0.5–0.7 MPa; 100–110 L/min (minimum 120 L/min with thin wire option); regulator-side coupler mounting screw Rc1/4
Environment: 15–30°C (recommended 20 ±1°C for high-precision machining); oil-mist-free and dust-free; humidity ≤75% RH
Grounding: Type C; max grounding resistance 10 Ω; must be grounded independently from other machinery
Shield room requirement: If electrical discharge noise interferes with nearby radio, television, or electronic equipment, a shielded room must be installed
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
