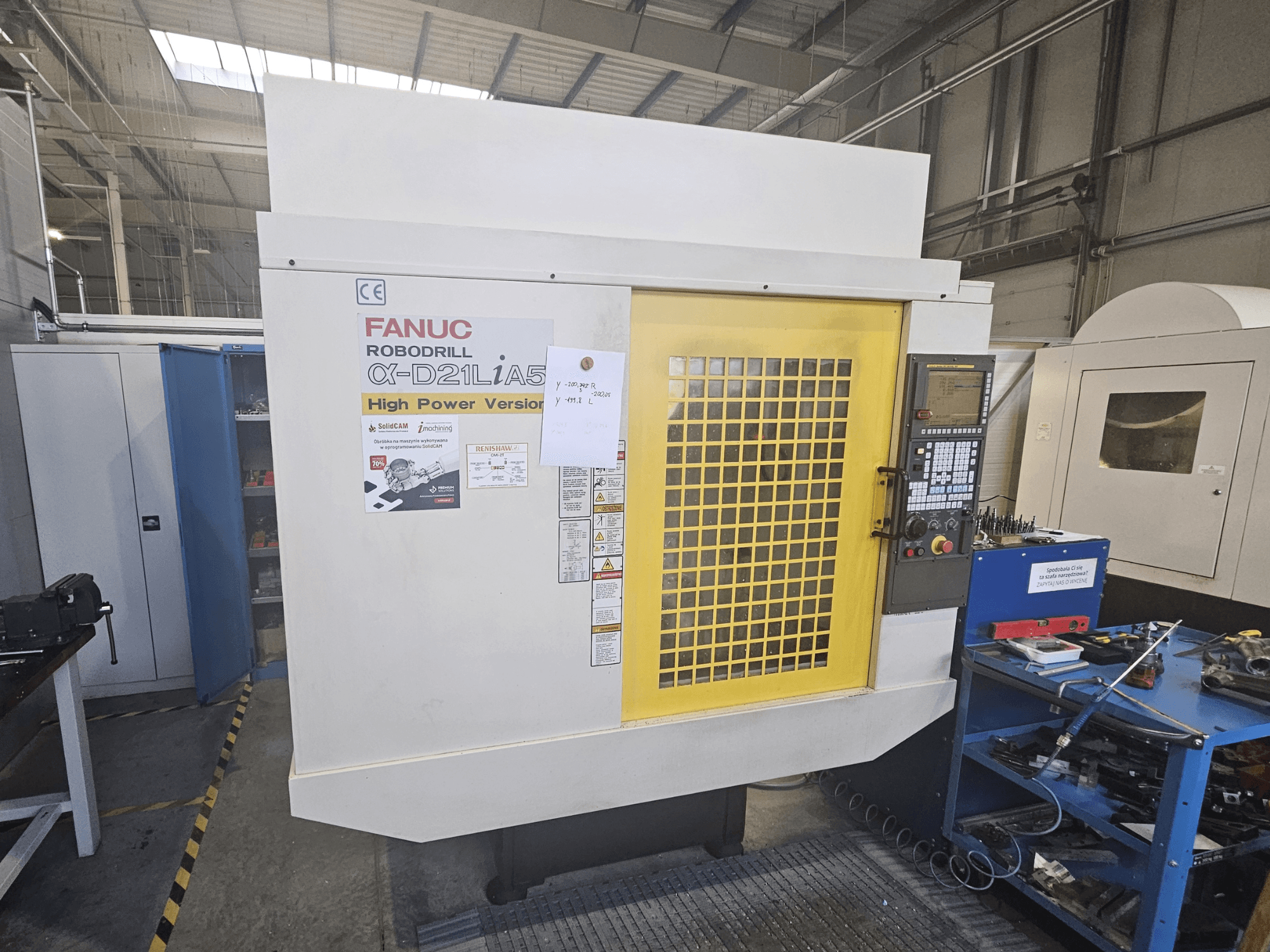

This 5-axis FANUC Robodrill α-D21LiA5 was manufactured in 2014. It features a spindle speed of 10,000 rpm, a 21-tool magazine, and a coolant tank capacity of 100 liters. The table measures 850 mm by 410 mm, supporting a maximum workpiece weight of 300 kg. Ideal for complex machining tasks. Contact us for more information about this machine.
Overview
- brand: FANUC
- year: 2014
- MODEL: Robodrill α-D21LiA5
- application type: Milling
- Location: Poland
- machine type: Vertical Machining Centre
- control unit brand: FANUC
Technical Information - FANUC Robodrill α-D21LiA5
Control Unit
- Control Brand: FANUC
Movement
- Number of Axes: 5
- X-axis Travel: 700 mm
- Y-axis Travel: 400 mm
- Z-axis Travel: 330 mm
Technical Specification
- Spindle Speed: 10000 RPM
Additional Information
Coolant tank: 100 L
Tool magazine: 21 tools
Spindle taper: BBT/BT30
Version: High Torque
Table size: 850 × 410 mm
Maximum workpiece weight: 300 kg
Additional equipment
Kitagawa two-axis table TT182BFR-xx with manual three-jaw chuck
Tailstock
Additional drives for two-axis table: α1iF/5000 and α2iF/5000 (for Kitagawa TT101AEE01)
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
