Thank you for your visit
This machine was recently sold. Take a look at similar options or get in touch with us directly.
FANUC - ROBODRILL Alpha-D21LiB5PL-MIL-FAN-2017-00001
Do you have further questions? Contact us.
Borja Garcia
+34 679 019 350
b.garcia@gindumac.com
- GINDUMAC
- Products
- Machine Tools
- FANUC ROBODRILL Alpha-D21LiB5 Vertical Machining Center

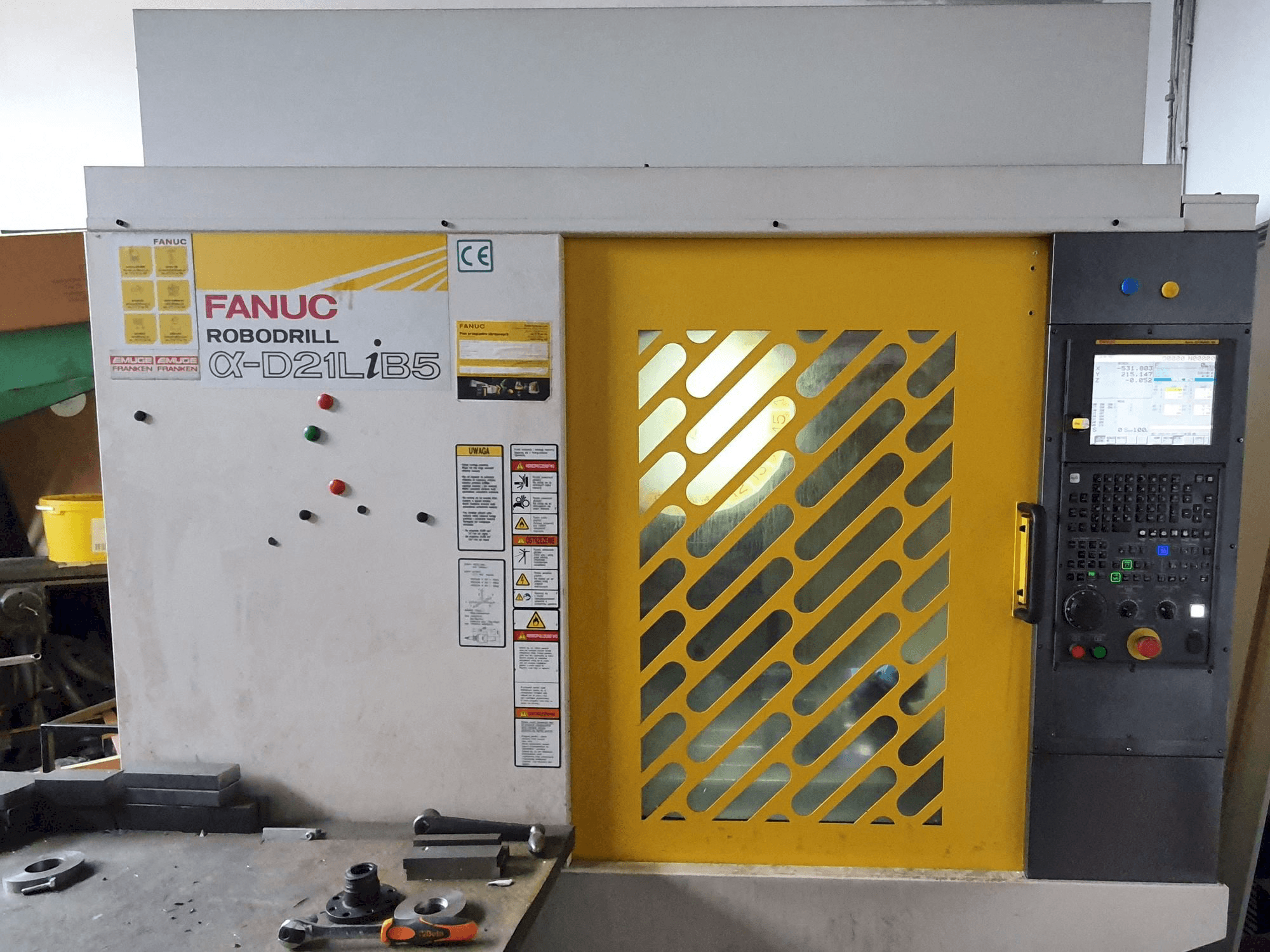

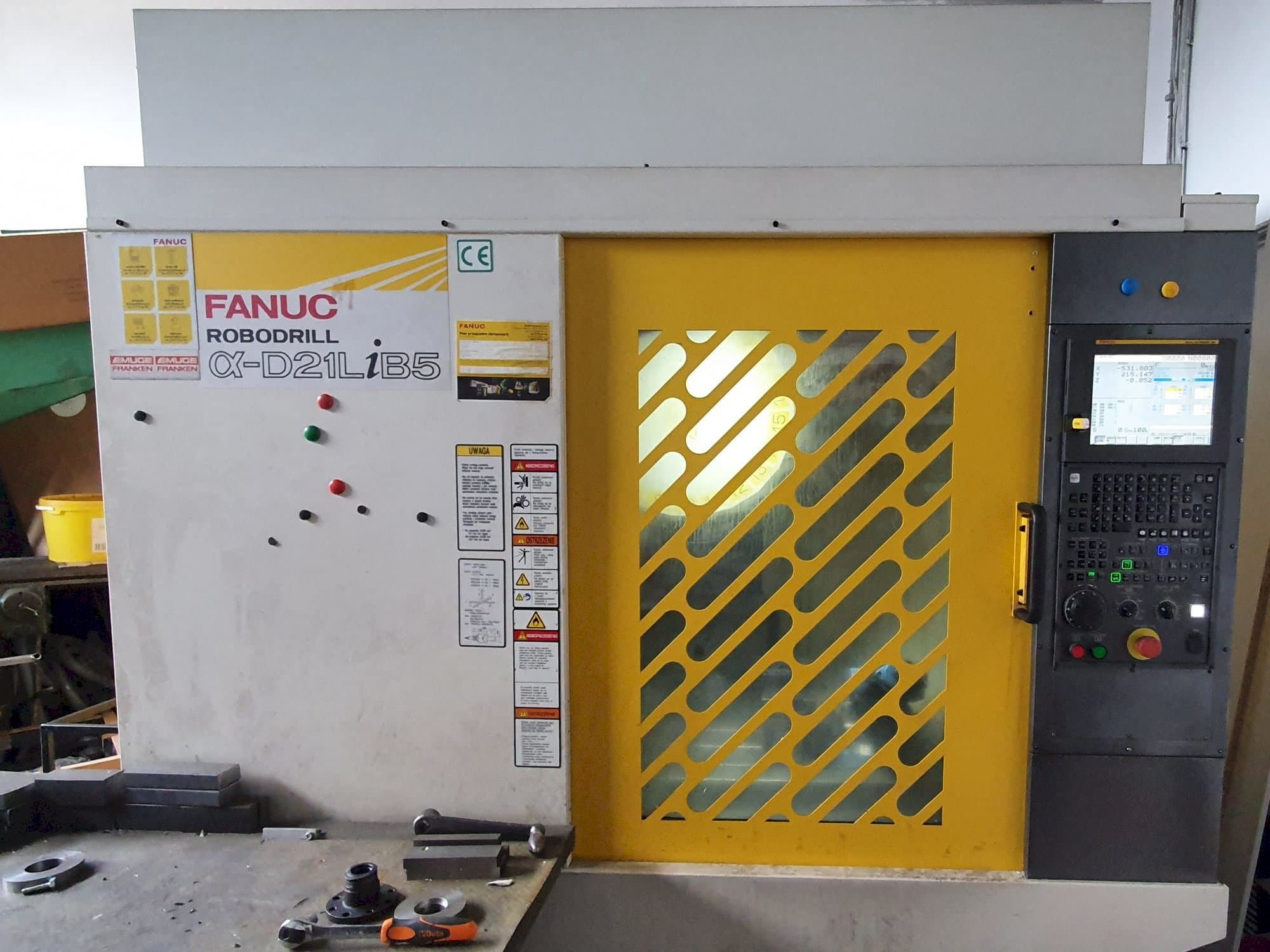

This FANUC ROBODRILL Alpha-D21LiB5 Vertical Machining Center was manufactured in the year 2017 in Japan. This 3 axis machine has been working for 2232 hours. It operated through a FANUC 31i-MODEL B5 control unit. It incorporates a spindle speed up to 10000 rpm and a table size of 850 x 410 mm. It includes some tooling with holders, 1 vice and full documentation available. Machine in very good condition ready for tests.
Overview
- brand: FANUC
- year: 2017
- MODEL: ROBODRILL Alpha-D21LiB5
- production hours: 2232
- application type: Milling
- Location: Poland
- machine type: Vertical Machining Centre
- control unit brand: FANUC
Technical Information - FANUC ROBODRILL Alpha-D21LiB5
Control Unit
- Control Brand: FANUC
- Control Model: 31i-MODEL B5
Dimensions
- Machine Depth: 1900 mm
- Machine Height: 2082 mm
- Machine Weight: 2300 kg
- Table Length: 850 mm
- Table Load: 300 kg
- Table Width: 410 mm
Movement
- Number of Axes: 3
- X-axis Travel: 700 mm
- Y-axis Travel: 400 mm
- Z-axis Travel: 330 mm
Technical Specification
- Max. Tool Weight: 3 kg
- Spindle Speed: 10000 RPM
Additional Information
Machine Benefits
Qualitative Machine Benefits
- Machine in very good condition ready for tests
- Low number of working hours
- Full documentation available
- It was always serviced by fanuc poland
Technical Machine Benefits
- Number of tools: 21 pcs
- Some tooling with holders
- 1 vice
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
