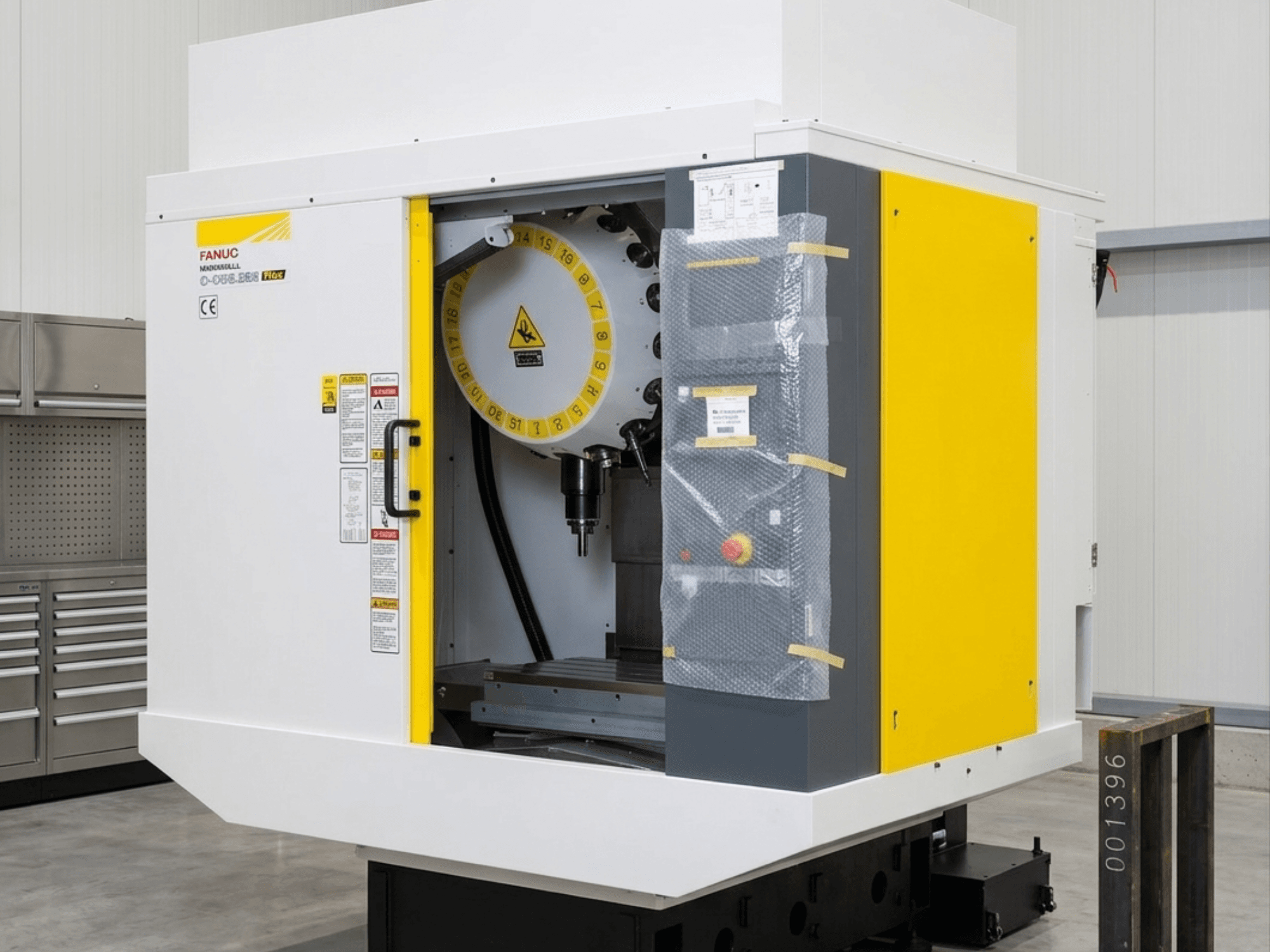

FANUC Robodrill D21MIB 5ADV Plus vertical machining center, front view showing control panel and spindle area.
FANUC Robodrill D21MIB 5ADV Plus vertical machining center, front view showing control panel and spindle area.

FANUC - Robodrill D21MIB 5ADV PlusDE-MIL-FAN-2023-00001

73,000 €
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This 3-axis FANUC Robodrill D21MIB 5ADV Plus was manufactured in 2023. It features a high-speed spindle capable of 10,000 rpm and a robust automatic oil lubrication system. The machine includes a center-through coolant system and a servo turret for enhanced efficiency. If you are looking to get high-quality machining capabilities, consider the FANUC Robodrill D21MIB 5ADV Plus vertical machining centre we have for sale. Contact us for further details.

Overview

  • brand: FANUC
  • year: 2023
  • MODEL: Robodrill D21MIB 5ADV Plus
  • application type: Milling
  • Location: Germany
  • machine type: Vertical Machining Centre
  • control unit brand: FANUC

Technical Information - FANUC Robodrill D21MIB 5ADV Plus

Control Unit

  • Control Brand: FANUC
  • Control Model: 31i-B5

Dimensions

  • Machine Weight: 2250 kg

Movement

  • Number of Axes: 3
  • X-axis Travel: 500 mm
  • Y-axis Travel: 400 mm
  • Z-axis Travel: 400 mm

Technical Specification

  • Spindle Speed: 10000 RPM

Additional Information

  • Mechanical unit: D21MiB5

  • Spindle: BIG-10000-MAS-CTC

  • Spindle motor: high torque CTC

  • Center-through coolant system (CTC)

  • Air blow center-through

  • Flood coolant piping

  • CTC coolant piping

  • Automatic oil lubrication system

  • Servo turret: BT-T21-MAS

  • Compact flash card adapter

  • Operator panel: English

  • Internal LED lighting

  • Designation of control axes

  • Designation of two additional axes

  • Parameter setting: 4th axis

  • Parameter setting: 5th axis

  • High column: 300 mm

  • Spindle head full cover

  • Z-axis single plate cover

  • Splash protection enclosure

  • Air-through CTC kit

  • Transformer: 20 kVA IP23

  • Mechanical unit weight: approx. 2250 kg

  • Condition: New machine

  • Warranty: 1 year

Additional equipment

  • Robot interface 2 without hub

  • Robot connection function

  • Additional I/O: DI/DO 48/32


*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
