➤ Used FASSLER HMX 400 For Sale | gindumac.com

Show in original language

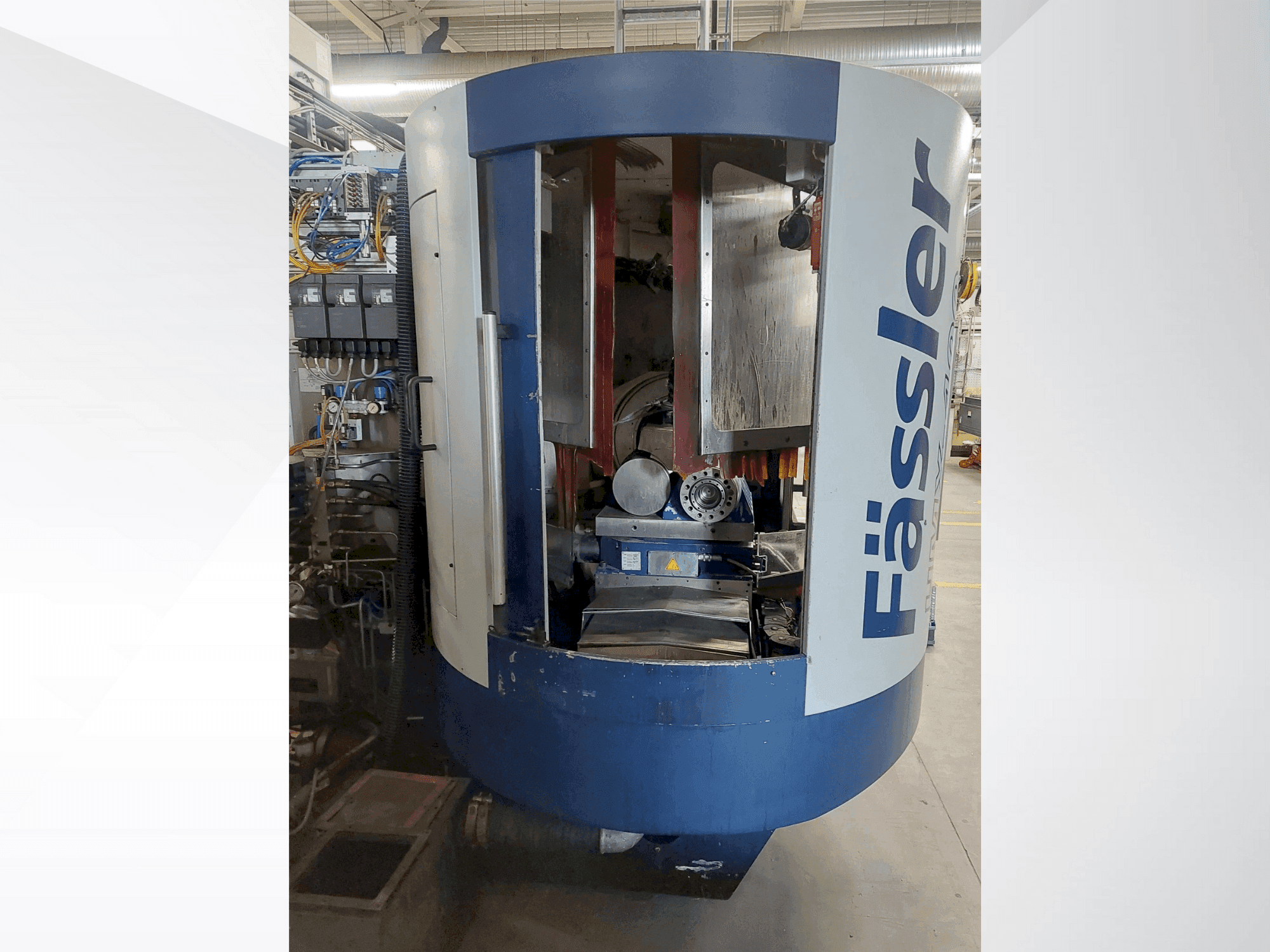

This 9-axis FASSLER HMX 400 horizontal honing machine was manufactured in 2005. It features a comprehensive control system with Sinumerik 840 D, ensuring precision and ease of use. With a honing stone diameter of 400 mm and a machinable workpiece diameter up to 350 mm, it is ideal for both external and internal honing. Consider the opportunity to buy this FASSLER HMX 400 horizontal honing machine. Contact us for more information about this machine.

Overview

brand: FASSLER
year: 2005
MODEL: HMX 400
application type: Honing
Location: Latvia
machine type: Horizontal Honing Machine
availability: Immediately
control unit brand: SIEMENS

Technical Information - FASSLER HMX 400

General Data

Measurements width: 2350 MM
Measurements depth: 3150 MM
Measurements height: 2180 MM
Machine weight: 10500 KG

Control Unit

Brand: SIEMENS
Model: Sinumerik 840 D

Main drive

Number of axis: 9

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Swivel drive (a-axis) speed: 0-112°/s
- - Swivel range a-axis: ±45°
- - Swivel drive (b1-axis) speed: 0-12°/s
- - Slewing range b-axis: ±10°
- - Cross slide (x-axis) infeed travel: -180/+5 mm
- - Cross slide (x-axis) speed: 0-7500 mm/min
- - Longitudinal slide (z1-axis) travel: -400/+100 mm
- - Longitudinal slide (z1-axis) speed: 0-8000 mm/min
- - Longitudinal slide (z2-axis) travel: -627/-87 mm
- - Longitudinal slide (z2-axis) speed: 0-50000 mm/min
Qualitative Machine Benefits:
- - Workpiece (c2- and c3-axes) rpm, stepless: 0-9000 1/min
- - Machinable workpiece diameter (external honing): 20-320 mm
- - Machinable workpiece diameter (internal honing): 50-350 mm
- - Max. Workpiece-shaft length: 400 mm
- - Max. Speed, honing stone drive: 1500 1/min
- - Max. Honing force (max. Process load): 1000 n
- - Honing-stone diameter: 400 mm

Extra information

- Machine still under power

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
