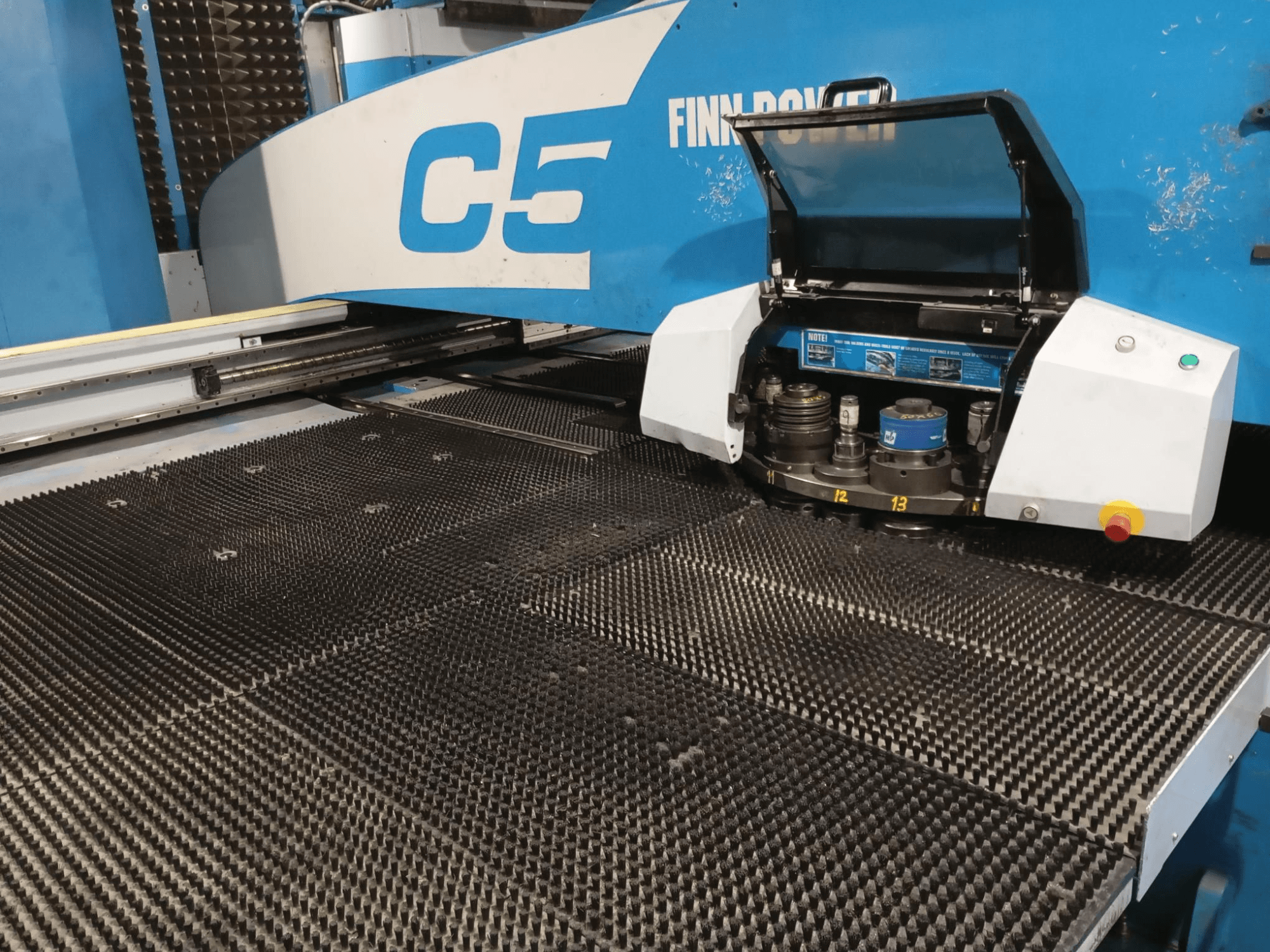

This 3s Finn-Power C5 + Compact Express CNC punching machine was manufactured in 2007. It features a working area of 2500 × 1250 mm and a punching force of 30 tonnes. With 20 tool stations and a maximum tool diameter of ~89 mm, it offers efficient operation. Consider the opportunity to buy this Finn-Power C5 + Compact Express CNC punching machine. Contact us for further details.
Overview
- brand: Finn-Power
- year: 2007
- MODEL: C5 + Compact Express
- application type: Punching
- Location: Spain
- machine type: CNC Punching Machine
- control unit brand: SIEMENS
Technical Information - Finn-Power C5 + Compact Express
Control Unit
- Control Brand: SIEMENS
- Control Model: SINUMERIK 840D CNC
Dimensions
- Machine Height: 2200 mm
- Machine Length: 5570 mm
- Machine Weight: 12000 kg
- Machine Width: 5165 mm
Movement
- Number of Axes: 2
- X-axis Travel: 2500 mm
- Y-axis Travel: 1250 mm
Technical Specification
- Punching Force: 300 Kn
Additional Information
Maximum sheet thickness (steel): 8 mm
Number of tool stations: 20
Maximum tool diameter: ~89 mm
Table clamps: 3 (typically pneumatic)
Sheet weight capacity: ~200 kg
Traverse speeds: X ~90 m/min; Y ~60 m/min
Table support: vacuum or brush table
Additional equipment
Automatic loading/unloading system (automatic material handling, loaders/unloaders)
Chip/slug conveyor belt
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
