Finn-Power - E5x

2010

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Sheet Metal Machinery
Finn-Power E5x Punching Machine

Show in original language

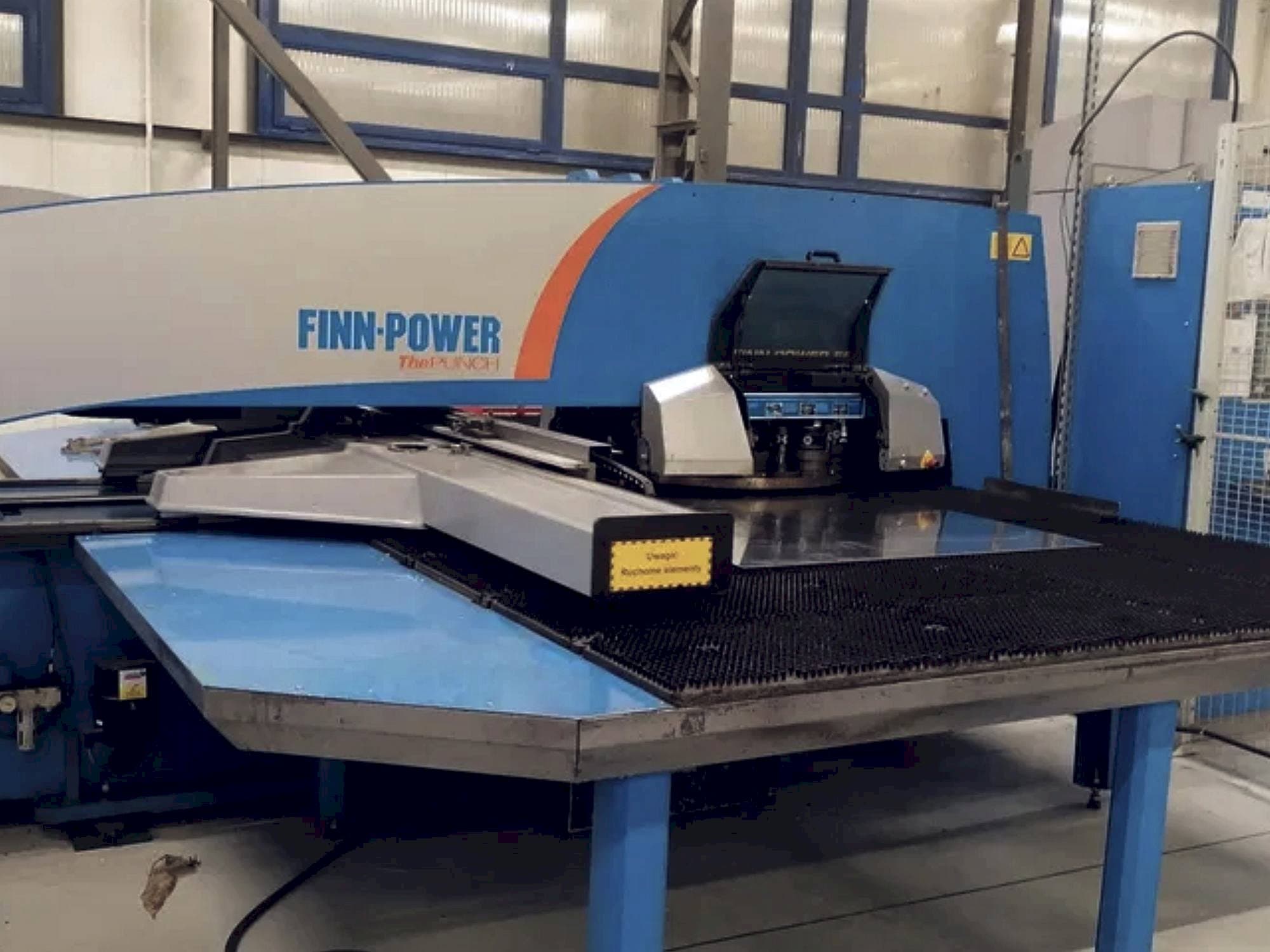

This Finn-Power E5x Servo-electric Punching Machine was made in 2010. It is operated with a control unit of the same brand. It has been on for 18069 hours. This machine can work with a punching force of 230 kN.

Overview

brand: Finn-Power
year: 2010
MODEL: E5x
production hours: 18069
application type: Punching
Location: Poland
machine type: Punching Machine
availability: Sold
control unit brand: Finn-Power
GINDUMAC ID: PL-PUN-FIN-2010-00001

Technical Information

General Data

Measurements width: 6030 mm
Measurements depth: 7640 mm
Measurements height: 2500 mm
Machine weight: 10500 kg

Control Unit

Brand: Finn-Power

Main drive

Punching force: 230 kN

Media

Main electronic connection: 3x400V / 50Hz
Power consumption: 25kA

Additional Equipment

- Third (3rd) clamp
- 5 indexing tools (size: 2xC, 2xB, 1xD)
- Punching scrap removal directly to the box next to the machine
- Foot switch for sheet clamp closing
- Sheet distortion sensors
- Automatic individual clamp move
- Automatic closing clamps clamping
- 1 station for Multitool 24-8

Additional Information

Machine history

material thickness: 8 mm

Machine Benefits

Technical Machine Benefits:
- - Sheet size x x y, max. : 2530 mm x 1270 mm ,sheet size x x y, min. : 300 mm x 100 mm ,sheet weight max. : 200 kg
- - X traverse length: 2584 mm, x traverse axis speed, max. : 90 m/min
- - Y traverse, length: 1317 mm, y traverse axis speed, max. : 60 m/min
- - Sheet positioning speed 108 m/min
- - Marking speed: 1800 1/min
- - Nibbling speed (1 mm): 700 1/min
- - Tool rotation 133 rpm
- - Punching speed 700 hits/min
- - Punch stroke: servo electric
- - Stroke depth: numerically adjustable, stroke length: programmable
Qualitative Machine Benefits:
- - Ram speed: programmable
- - Punch diameter max. : 89 mm
- - Turret rotation 24 r/min
- - Tools type: thick turret
- - Tool change time: 1-3 sec

Extra information

- Machine in good condition.

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
