Finn-Power F5-25 SB

Photo Gallery

SOLD

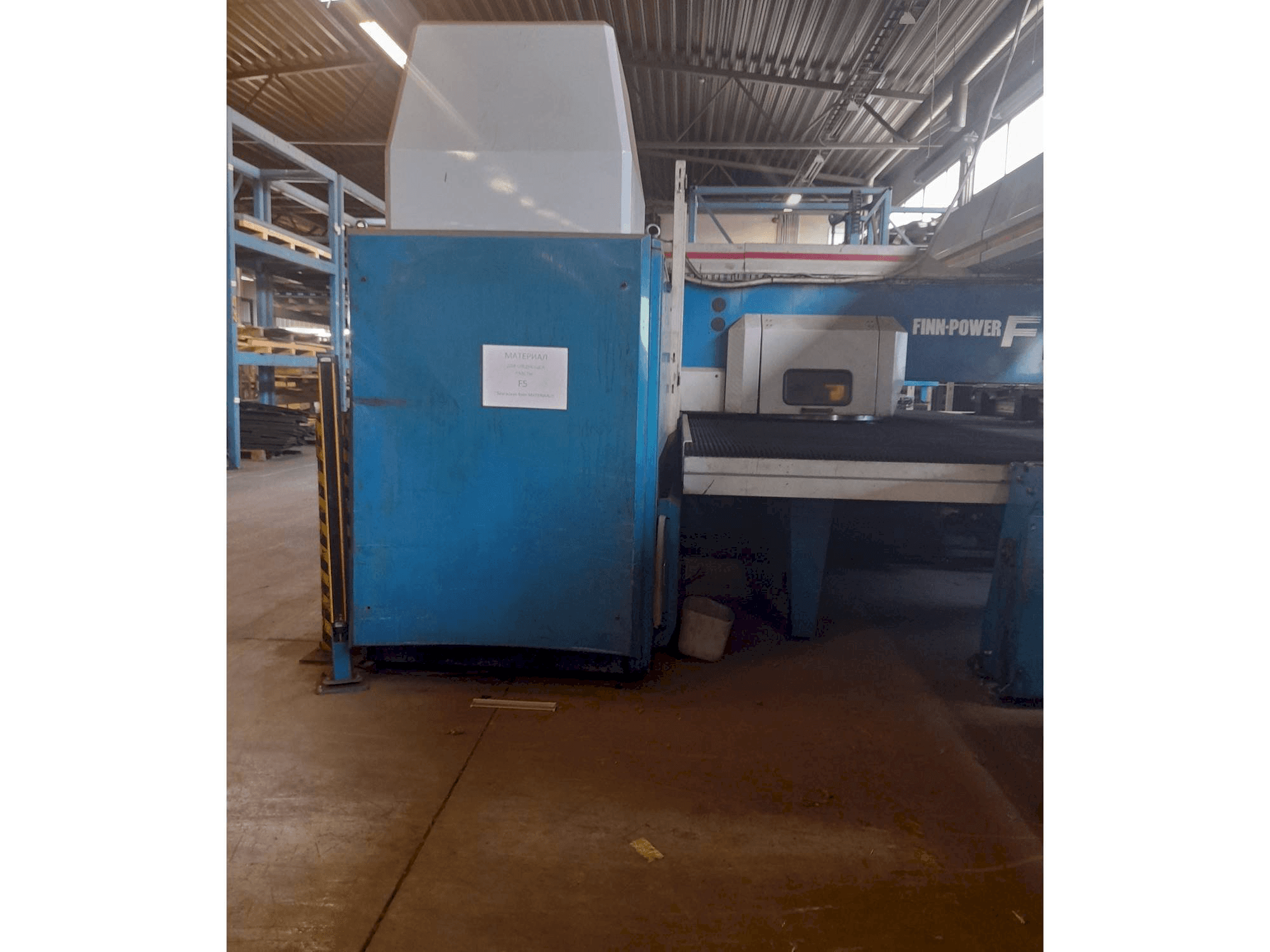

Finn-Power - F5-25 SB

1998

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Sheet Metal Machinery
FinnPower F5-25 SB Punching machine

Show in original language

This FinnPower F5-25 SB Punching machine was made in 1998 in Finland and has 38000 production hours. It is equipped with a Siemens Sinumerik 840D control unit. The machine has a punching force of 300 kN.

Overview

brand: Finn-Power
year: 1998
MODEL: F5-25 SB
production hours: 38000
application type: Punching
Location: Estonia
machine type: Punching Machine
availability: Sold
control unit brand: Siemens
GINDUMAC ID: EE-PUN-FIN-1998-00001

Technical Information

General Data

Machine weight: 13500 kg

Control Unit

Brand: Siemens
Model: Sinumeric 840D

Main drive

Punching force: 300 kN

Movement

X-AXIS Movement: 2584 mm
Y-AXIS Movement: 1317 mm

Workpiece

Workpiece x: 2530 mm
Workpiece y: 1270 mm

Max Material thickness

Steel: 8 mm

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Ram force: 230 kn
- - Max punch diameter: 89 mm
- - Max sheet weight: 200 kg
- - Clamps: pneumatic 2 pcs (optional 3 pcs)
- - Number of turret stations: 20 pcs
- - X-traverse: 2584 mm (x-42... X2542)
- - Y-traverse: 1317 mm (y-25... Y1292)
- - Axis speed (x-axis), max: 90 m/min
- - Axis speed (y-axis), max: 60 m/min
- - Traversing speed, max: 108 m/min
Qualitative Machine Benefits:
- - Tools: thick turret
- - Ram speed adjustment: programmable
- - Stroke length adjustment: programmable
- - Stroke depth adjustment: numerically adjustable
- - Hit speed, max:

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
