- ➤ Used FomIndustrie ADIR C For Sale | gindumac.com

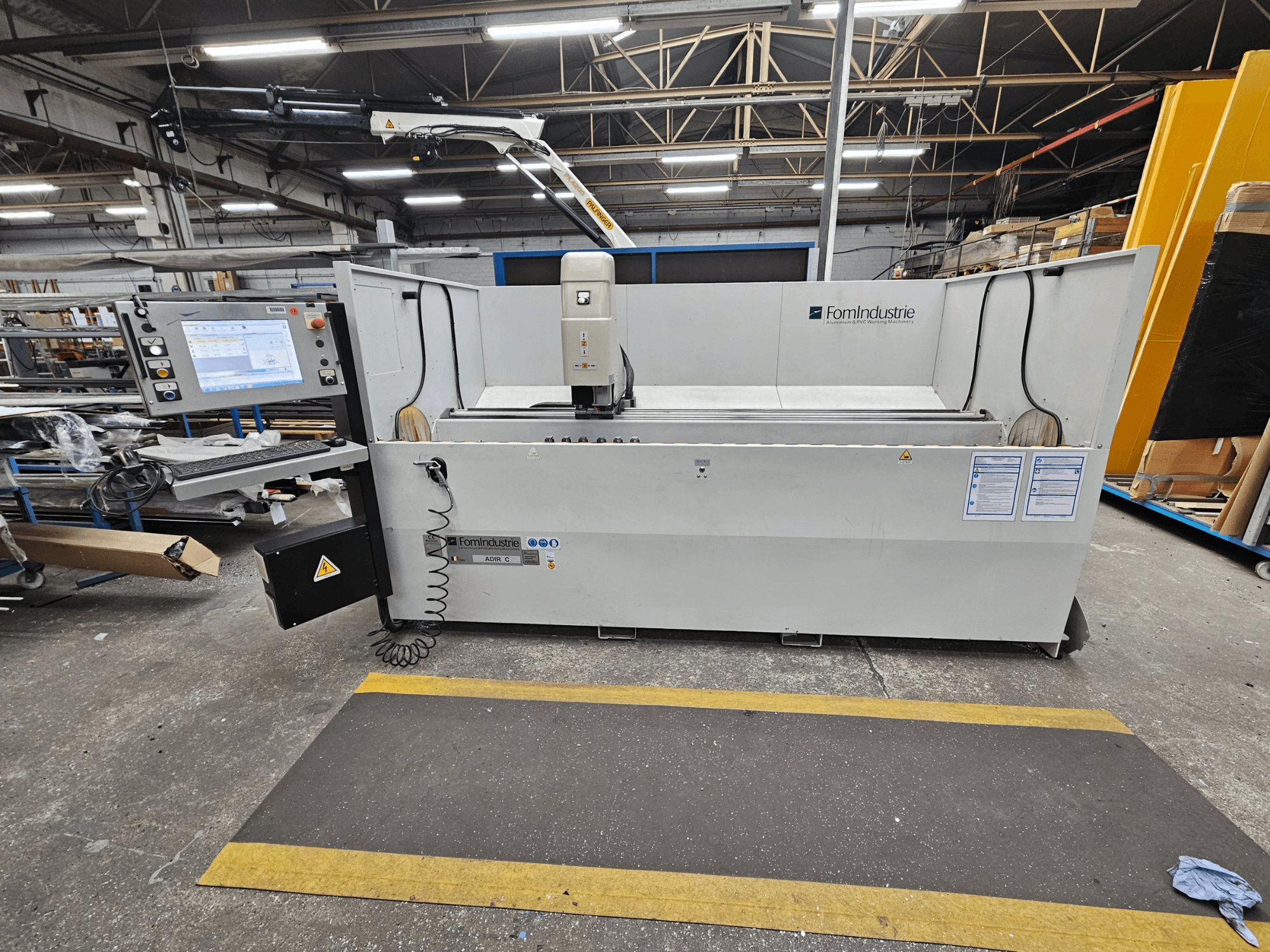

This 3-axis FomIndustrie ADIR C was manufactured in 2018. It features an X-axis travel of 2715 mm, Y-axis travel of 355 mm, and Z-axis travel of 224 mm. The machine is equipped with a powerful electrospindle with a speed range of 1000 – 12,000 rpm and a worktable height of 850 mm. If you are looking to get high-quality milling capabilities, consider the FomIndustrie ADIR C vertical machining centre we have for sale. Contact us for further details.
Overview
- brand: FomIndustrie
- year: 2018
- MODEL: ADIR C
- production hours: 1824
- application type: Milling
- Location: Germany
- machine type: Vertical Machining Centre
Technical Information - FomIndustrie ADIR C
Dimensions
- Machine Weight: 1400 kg
Movement
- Number of Axes: 3
- X-axis Travel: 2715 mm
- Y-axis Travel: 355 mm
- Z-axis Travel: 224 mm
Technical Specification
- Spindle Power: 3 kW
- Spindle Speed: 12000 RPM
- Taper Size: ISO 30
Additional Information
Control: PC-based system with FOMCAM software
Axis speeds: X 25 m/min, Y 13 m/min, Z 11 m/min
Distance between stops: 2600 mm
Milling capacity: X 2675 mm, Y 250 mm, Z 120 mm
Worktable: rotation 0° / 90° / 180° (pneumatic), height 850 mm
Spindle: Electrospindle, taper ISO 30 (DIN 69871)
Tooling: max tool length 130 mm, max tool diameter 20 mm
Tool holder positions: 6 (manual tool change, ISO 30)
Pneumatics: 4 pneumatic clamps, operating pressure 7 bar, air consumption 24 NL/cycle
Electrical: supply voltage 400 V, frequency 50 Hz, installed total power 3.5 kW
Hours: machine 1,824 h; electrospindle 560 h
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
