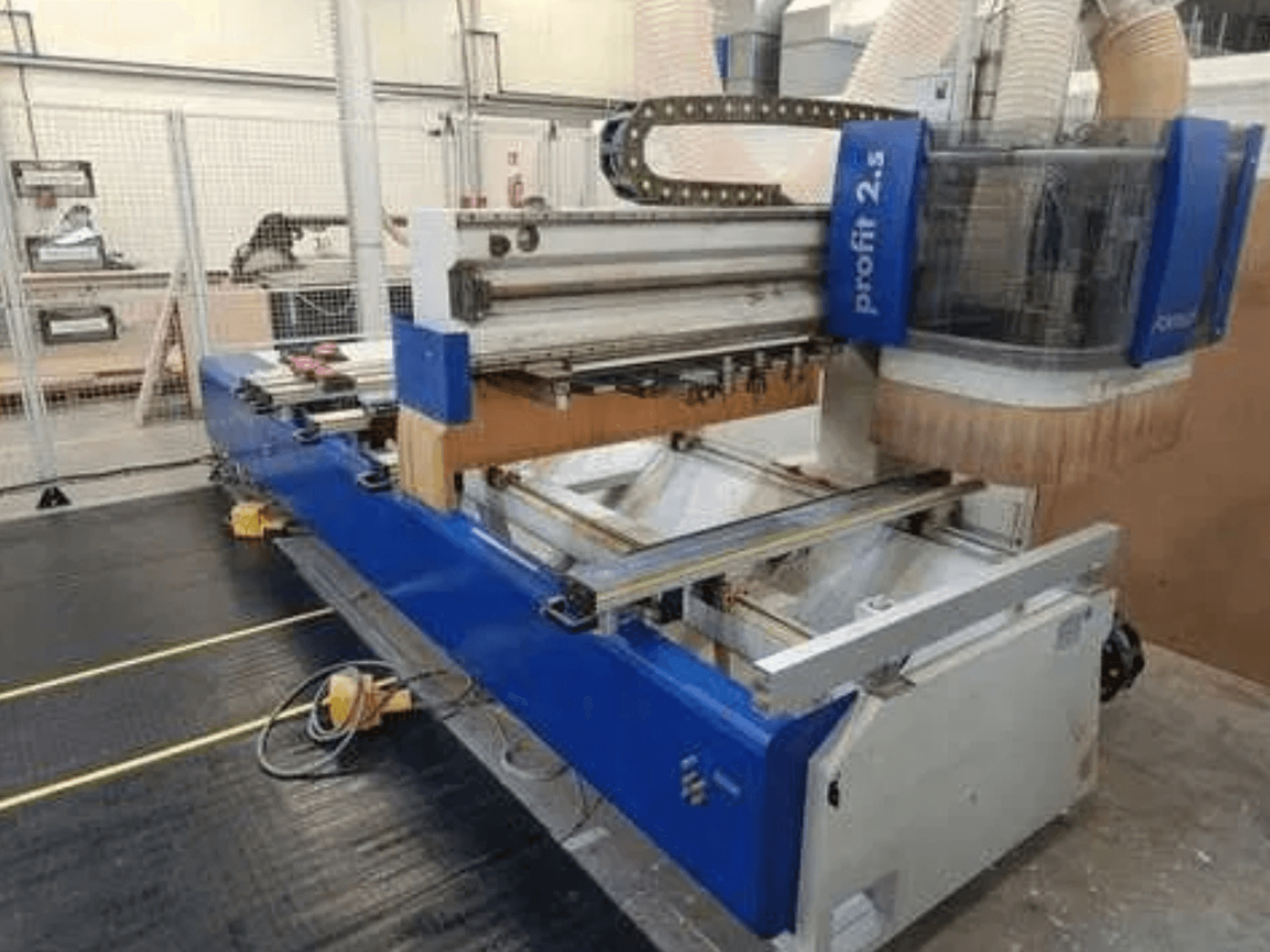

This 4-axis FORMAT4 Profit 2S was manufactured in 2007. It features a high-power 7.5 kW electrospindle, air-cooled, with speeds up to 24,000 rpm. The machine includes a versatile tool changer with 8 positions and a CNC angle aggregate for enhanced precision. Ideal for complex woodworking tasks, it offers a large working area and rapid axis positioning speeds. If you are looking to get high-quality woodworking capabilities consider the FORMAT4 Profit 2S machine we have for sale. Contact us for more information.
Overview
- brand: FORMAT4
- year: 2007
- MODEL: Profit 2S
- application type: CNC Wood Machining
- Location: Poland
- machine type: CNC Wood Machining Centre
Technical Information - FORMAT4 Profit 2S
Movement
- Number of Axes: 4
- X-axis Travel: 3060 mm
- Y-axis Travel: 1210 mm
- Z-axis Travel: 100 mm
Technical Specification
- Spindle Power: 7.5 kW
- Spindle Speed: 24000 RPM
Additional Information
Electrospindle:
Cooling: Air-cooled
Tool holder: HSK F63
C-axis: 360° (4th axis)
Tool changer:
Magazine: 8 positions
Additional position for C-axis tool/aggregate
Drilling head:
Vertical unit: 12 spindles, 32 mm pitch (9 in X, 5 in Y), each individually selectable
Horizontal unit: 6 spindles, 32 mm pitch (4 in X, 2 in Y), each individually selectable
Saw unit: Grooving saw in X-axis direction
Axis positioning speeds:
X: 80 m/min
Y: 80 m/min
Z: 25 m/min
Control: Mobile control panel
Additional equipment
CNC angle aggregate for C-axis (BENZ), tool holder HSK F63
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
