GASPARINI - 4000×185 IT-BEN-GAS-2018-00001

Name: GASPARINI 4000×185
Brand: GASPARINI
SKU: IT-BEN-GAS-2018-00001
Price: 62000 EUR
Availability: InStock

62,000 €

gindumac price

(Ex works)

get an official quote

Visit the machine

make a counteroffer

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Sheet Metal Machinery
➤ Used GASPARINI 4000×185 Press For Sale | gindumac.com

Show in original language

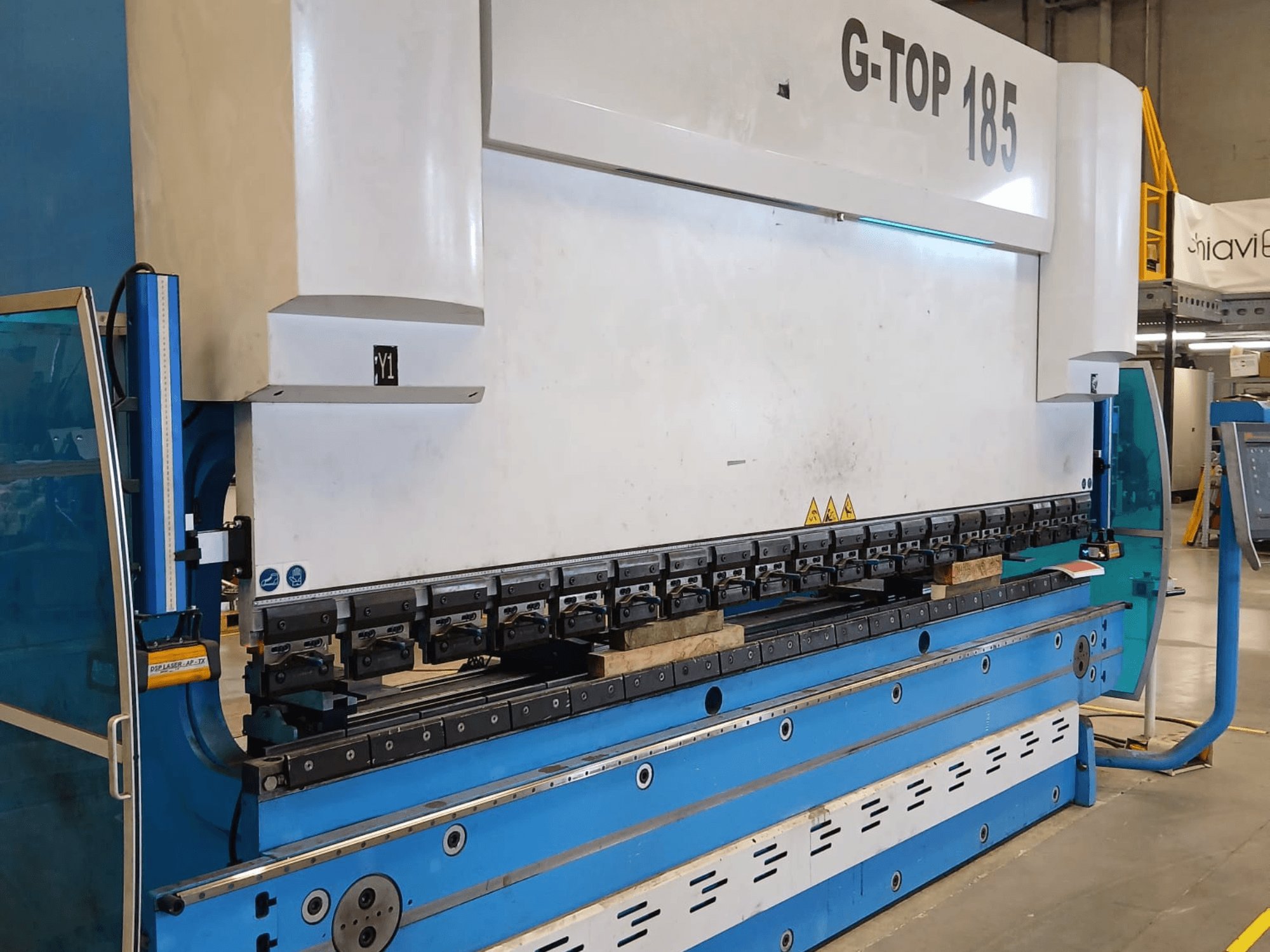

Press brake manufactured in 2018. This GASPARINI 4000×185 features a pressing force of 1850 kN and a bending length of 4100 mm. It includes a CNC backgauge with multiple axes and a G-REFLEX frame deflection compensation system for enhanced precision. If you are looking to get high-quality bending capabilities, consider the GASPARINI 4000×185 machine we have for sale. Contact us for further details.

Overview

brand: GASPARINI
year: 2018
MODEL: 4000×185
application type: Bending
Location: Italy
machine type: Press Brake

Technical Information - GASPARINI 4000×185

Dimensions

Machine Height: 3440 mm
Machine Length: 5000 mm
Machine Weight: 18000 kg
Machine Width: 2600 mm

Technical Specification

Bending Length: 4100 mm
Max. Stroke: 300 mm
Pressing Force: 1850 Kn

Additional Information

Distance between frames: 3600 mm

Ram
- Throat depth: 500 mm
- Daylight opening: 500 mm
- Working height: 950 mm
Backgauge
- CNC backgauge: GHP-5
- Axes: X, R, Z1, Z2, X5
- Pneumatic retractable supports
- Heavy-duty double linear guide system
Speed
- Rapid approach: 270 mm/s
- Working: 0–10 mm/s
- Return: 120 mm/s
Control: ESA CNC control
Compensation system
- G-REFLEX frame deflection compensation system
- G-CS automatic crowning system
Motor & electrical
- Main motor power: 18.5 kW
- Voltage: AC 400 V
- Frequency: 50 Hz
- Phase: 3P + PE
Installation: Pitless (machine without foundation pit)

Additional equipment

No external/auxiliary equipment listed
Included documents: CE Declaration, Technical Documentation

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
