Thank you for your visit
This machine was recently sold. Take a look at similar options or get in touch with us directly.
GEISS - FZ 2000x1000 ECOCZ-MIL-GEI-2004-00001
Do you have further questions? Contact us.
Borja Garcia
+34 679 019 350
b.garcia@gindumac.com
- GINDUMAC
- Products
- Machine Tools
- GEISS FZ 2000x1000 ECO Vertical machine center

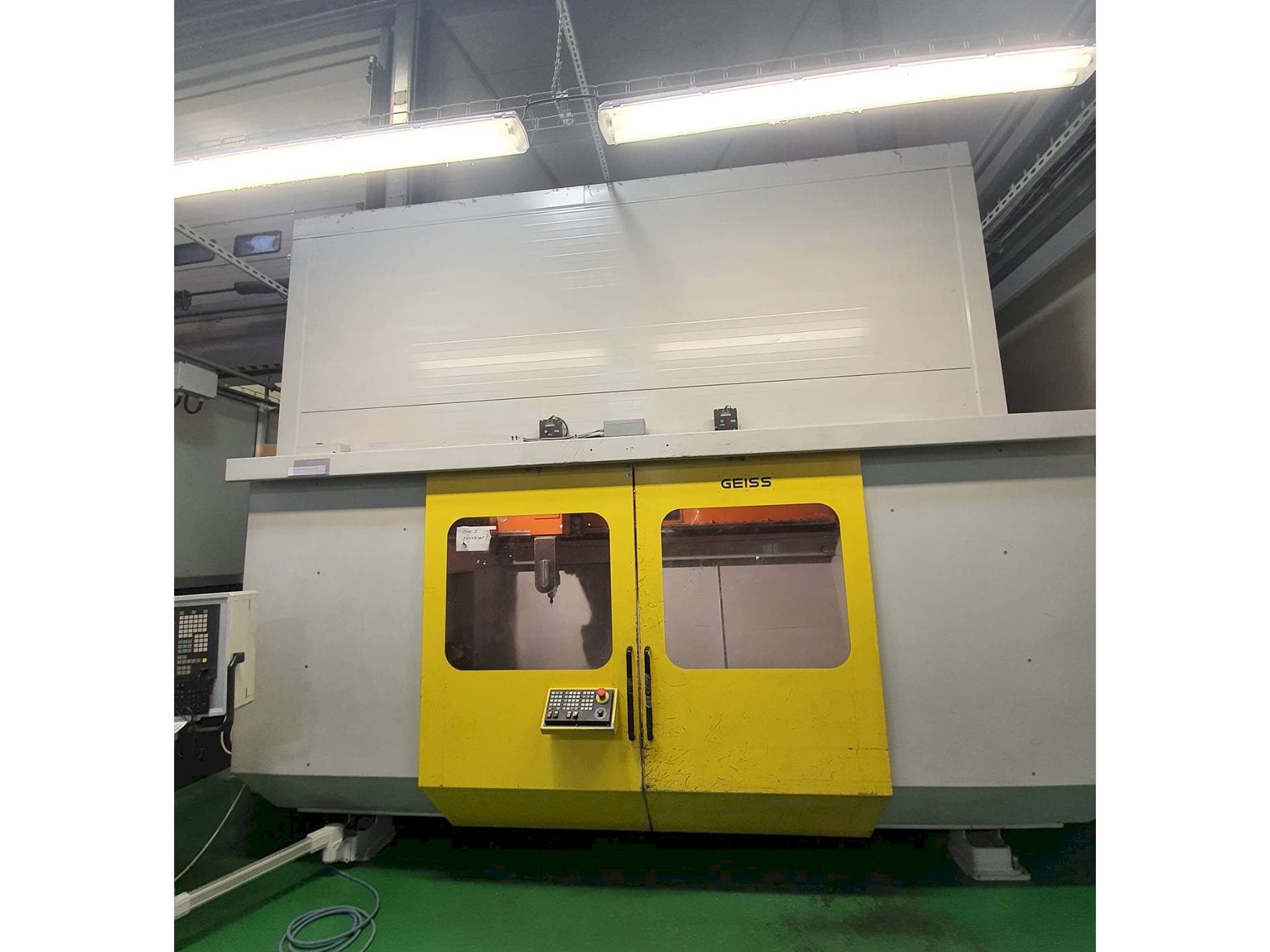

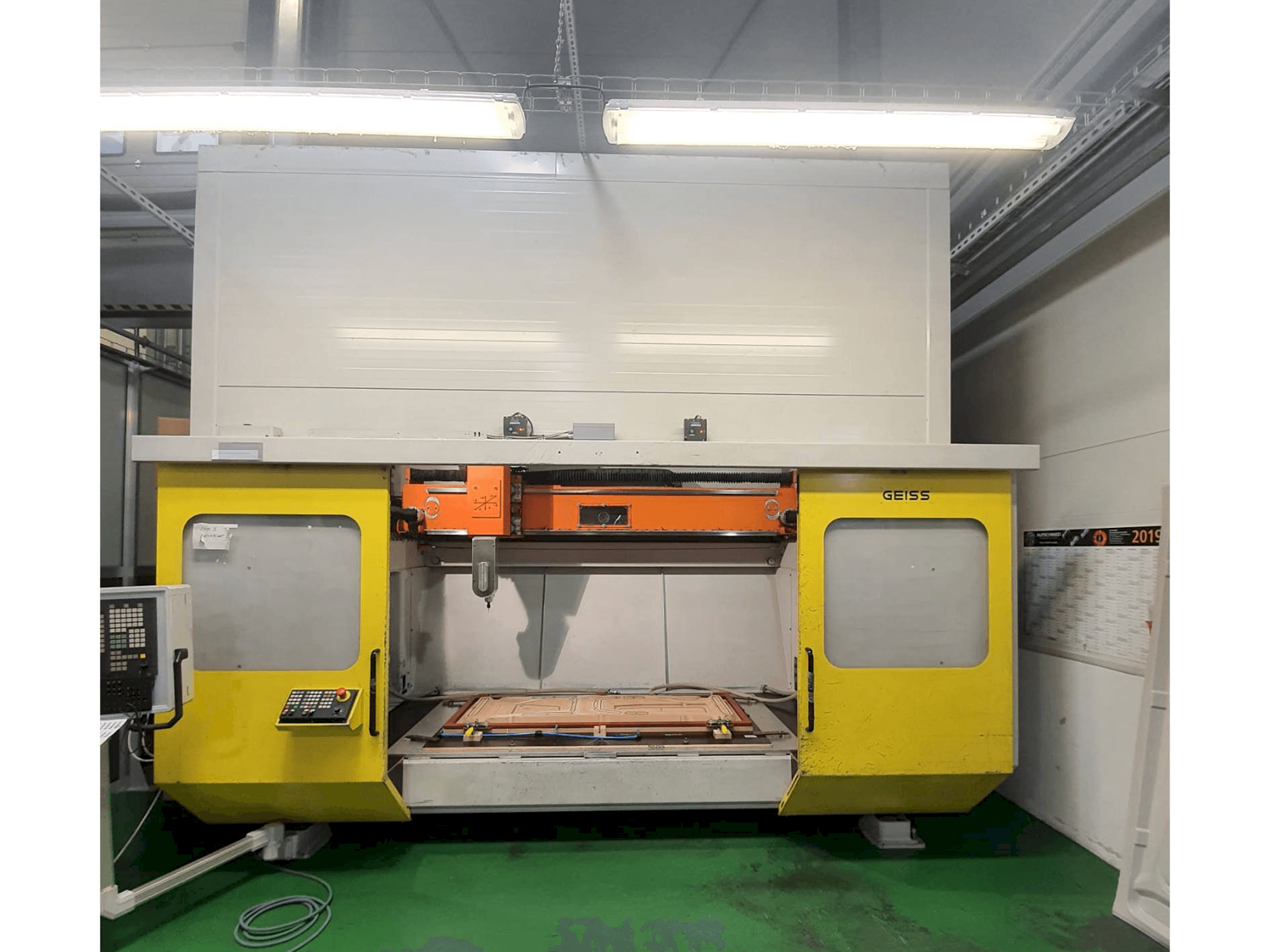

This GEISS FZ 2000x1000 ECO Vertical machine center was made in Germany in 2004. It has been working for 62403 production hours of which 17316 are spindle hours. This 5 axis machine is operated through a SIEMENS Sinumerik 840Di control unit, it works with a spindle speed up to 30000 rpm. Machine in very good condition, coolant pump and vacuum pump included.
Overview
- brand: GEISS
- year: 2004
- MODEL: FZ 2000x1000 ECO
- production hours: 62403
- application type: Milling
- Location: Czech Republic
- machine type: Vertical Machining Centre
- control unit brand: SIEMENS
Technical Information - GEISS FZ 2000x1000 ECO
Control Unit
- Control Brand: SIEMENS
- Control Model: Sinumerik 840Di
Dimensions
- Machine Depth: 2467 mm
- Machine Height: 2456 mm
- Machine Weight: 2900 kg
- Table Length: 2000 mm
- Table Width: 1000 mm
Movement
- X-axis Travel: 2400 mm
- Y-axis Travel: 1400 mm
- Z-axis Travel: 760 mm
Technical Specification
- Spindle Speed: 30000 RPM
Additional Information
Additional equipment
- Coolant pump + vacuum pump included
Machine Benefits
Qualitative Machine Benefits
- Good condition, regulary service
- 2021 - new spindle
Technical Machine Benefits
- C axis 520 degrees
- B axis 285 degrees
- Spindle motor power 6 kw
- Rapid feerates x/y/z 7500/7500/7000 mm/min
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
