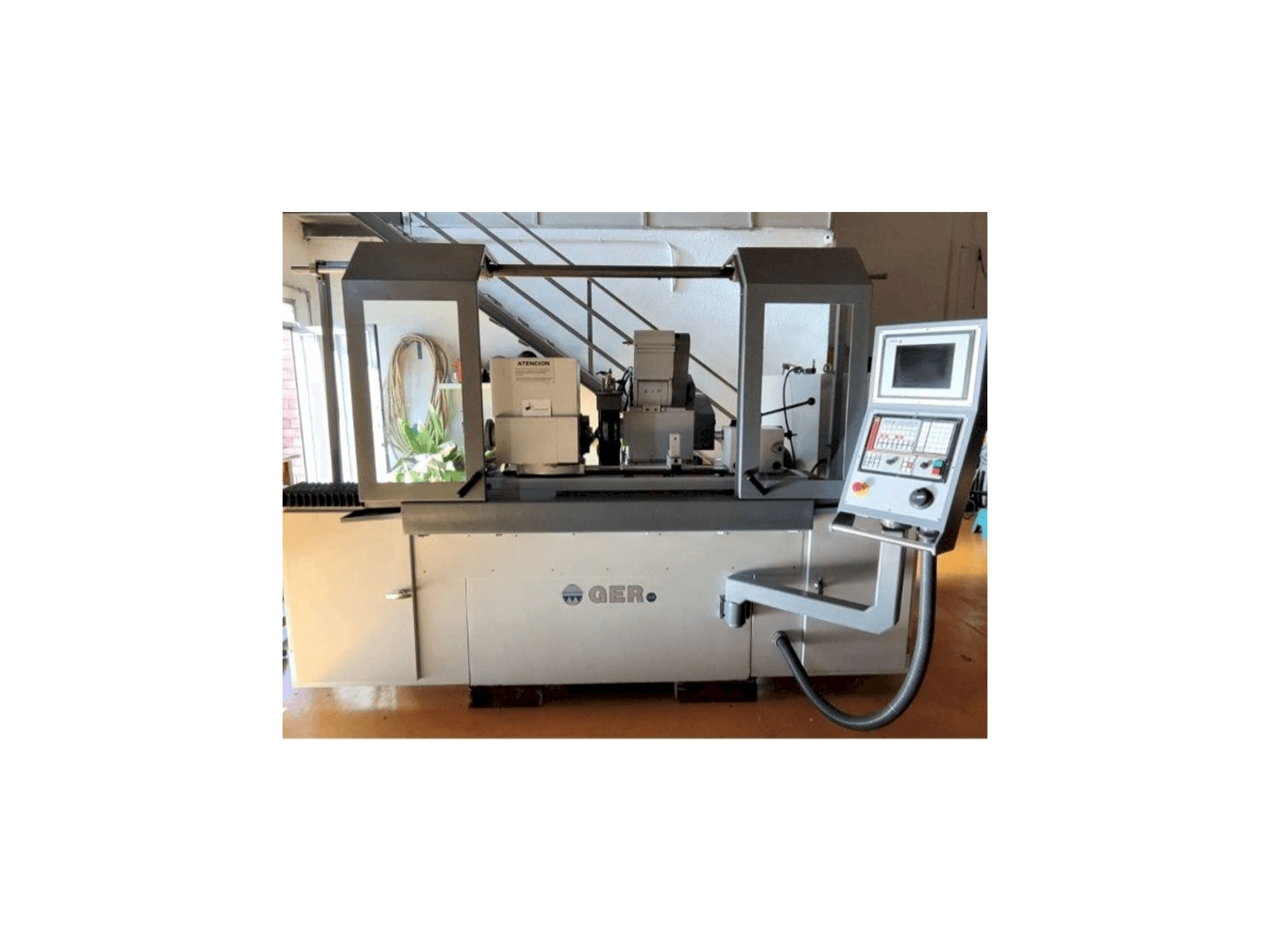

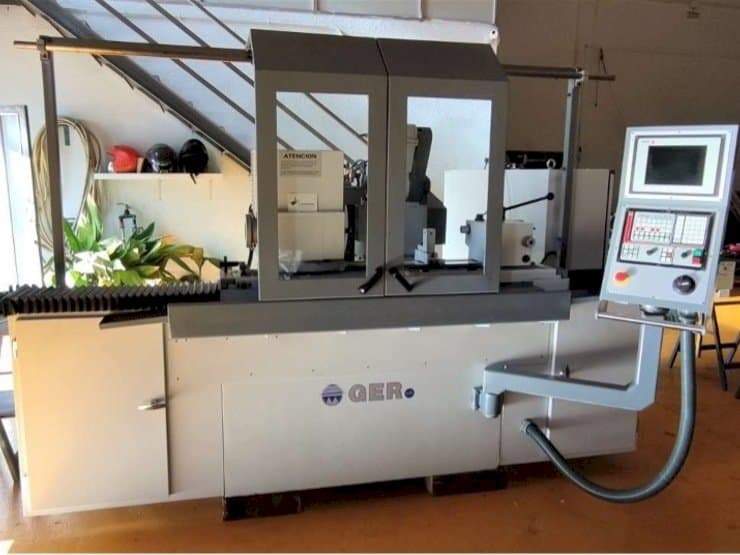

This GER C 500 Grinding Machine was built in the year 2000, and Fully mechanically rebuilt 2022. It is controlled by a Fagor control unit. This machine has a distance between points 500 mm, and a maximum diameter to rectify 275 mm.
Overview
- brand: GER
- year: 2000
- MODEL: C-500 CNC
- application type: Grinding
- Location: Spain
- machine type: Surface Grinding Machine
- control unit brand: FAGOR
Technical Information - GER C-500 CNC
Control Unit
- Control Brand: FAGOR
Additional Information
Machine Benefits
Qualitative Machine Benefits
- Completely mechanically rebuilt 2022
- Reconditioning of ball screws at the manufacturer's premises
- Replacement of antifriction material of the slides
- Restoration of flatness, parallelism and perpendicularity of the sliding guides by hand scraping
- Tailstock adjustment
- Replacement of high precision bearings
- Overhaul of lubrication circuit
- 2-component epoxy painting
- Overhaul of electronic equipment by fagor
Technical Machine Benefits
- Max. Diameter to be ground: 275 mm
- Height of points: 140 mm
- Distance between points: 500 mm
- Speed variator on work holding head work holding head cone: mt 5
- Turning of workpiece holder head: 30º
- Grinding wheel motor power: 5. 5 hp
- Grinding wheel dimensions: φ350x30(50)xφ127 mm
- Variable speed drive for external grinding wheel
- Automatic dressing of the grinding wheel with dressing compensation
- Hydraulic hinged inside device, speed variator for internal grinding wheel, tailstock, cone
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
