- Gildemeister CTX 400 Twin Lathe
Show in original language

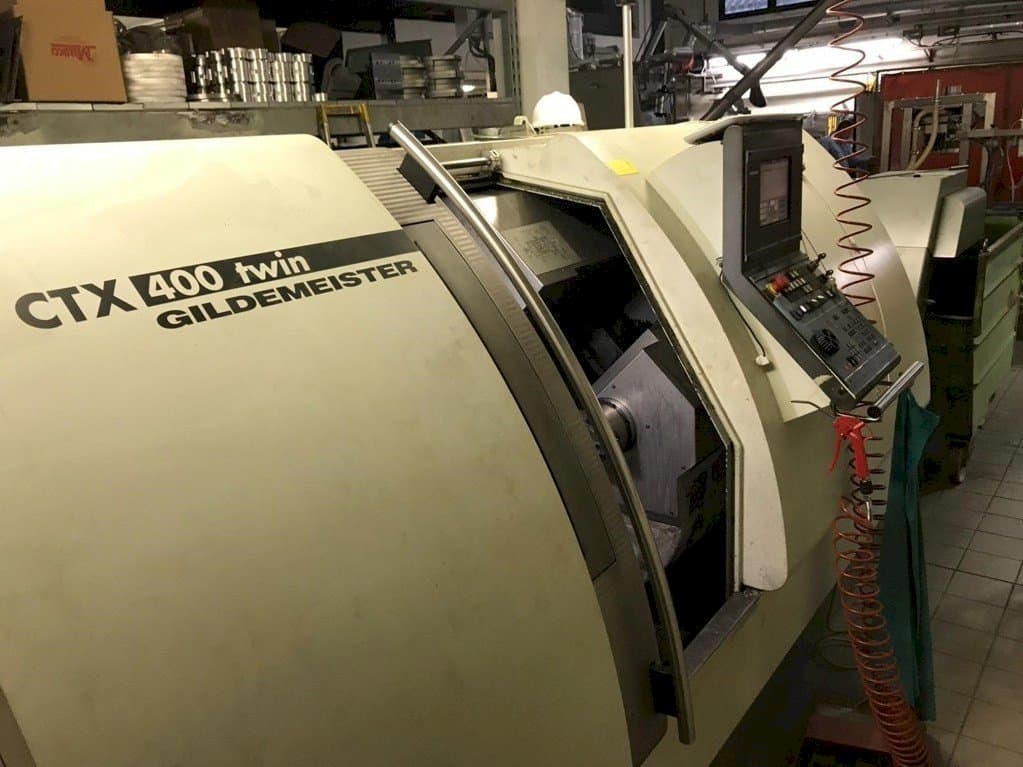

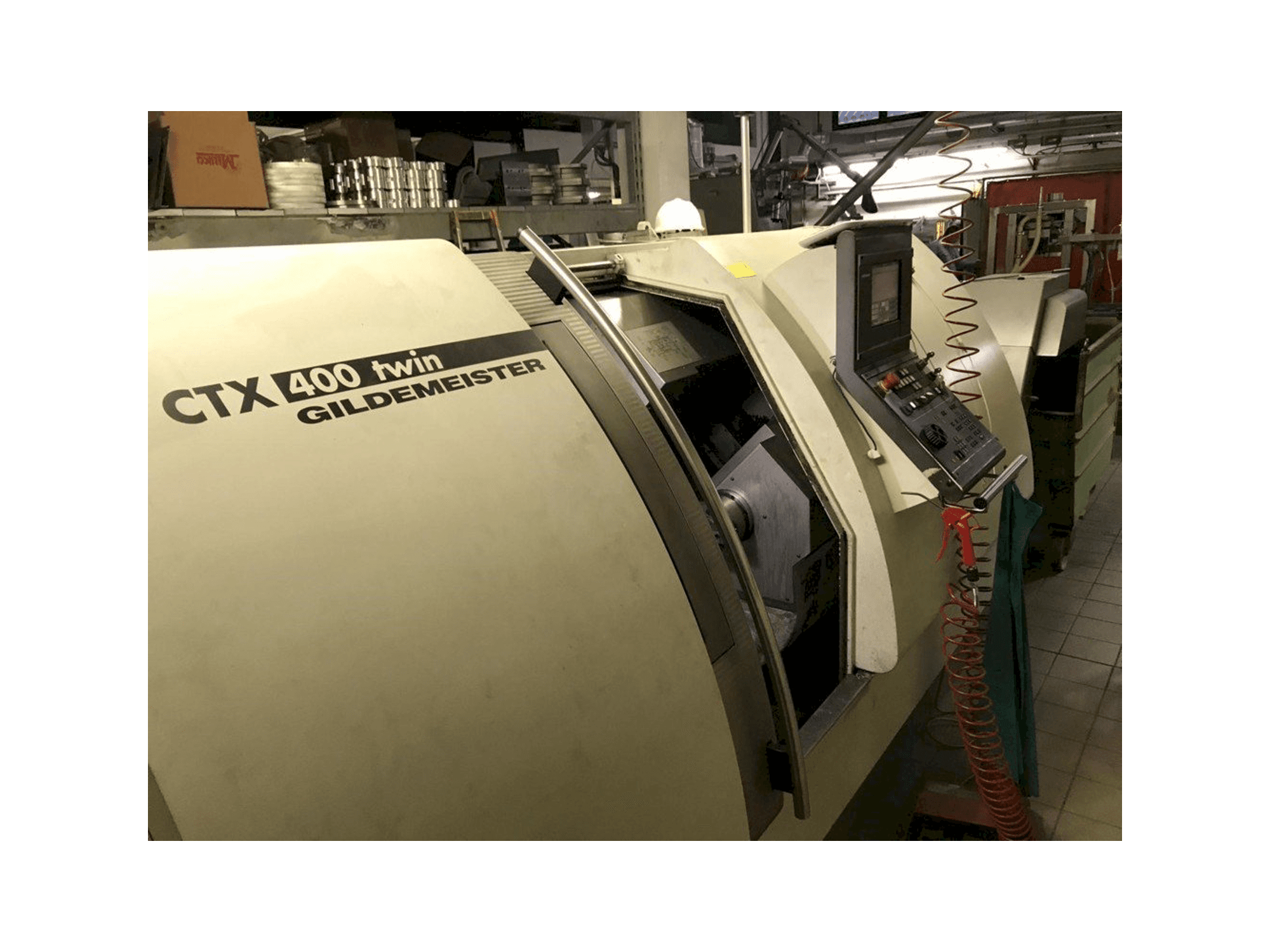

This Gildemeister CTX 400 Twin Lathe was made in Germany in 2001 and has been operative for 29940 hours. Equipped with a HEIDENHAIN 4290 Control unit, this machine can operate with a spindle speed up to 5000 rpm.
Overview
- brand: Gildemeister
- year: 2001
- MODEL: CTX 400 Twin
- production hours: 29940
- application type: Turning
- Location: Italy
- machine type: Horizontal Turning Machine
- control unit brand: HEIDENHAIN
Technical Information - Gildemeister CTX 400 Twin
Control Unit
- Control Brand: HEIDENHAIN
- Control Model: 4290
Dimensions
- Machine Depth: 1750 mm
- Machine Height: 3570 mm
- Machine Weight: 5700 kg
Movement
- X-axis Travel: 220 mm
- Y-axis Travel: 80 mm
- Z-axis Travel: 635 mm
Technical Specification
- Spindle Power: 21 kW
- Spindle Speed: 25.5 RPM
Additional Information
Additional equipment
- chip conveyor
Machine Benefits
Qualitative Machine Benefits
- Machine comes with driven tools
- Sub-spindle
- Recent maintenance by dmg technicians
Technical Machine Benefits
- Motorized turret: 12 positions
- -axis fast forward speed: 20 mt
- Z-axis fast forward speed: 24 mt
- Asa 1st spindle taper: 6
- Asa 2nd spindle taper: 5
- Turning bar diameter 65 mm
- 6 motorized tool holders: 2 vertical and 2 horizontal + 2 double (1 v - 1 h)
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
