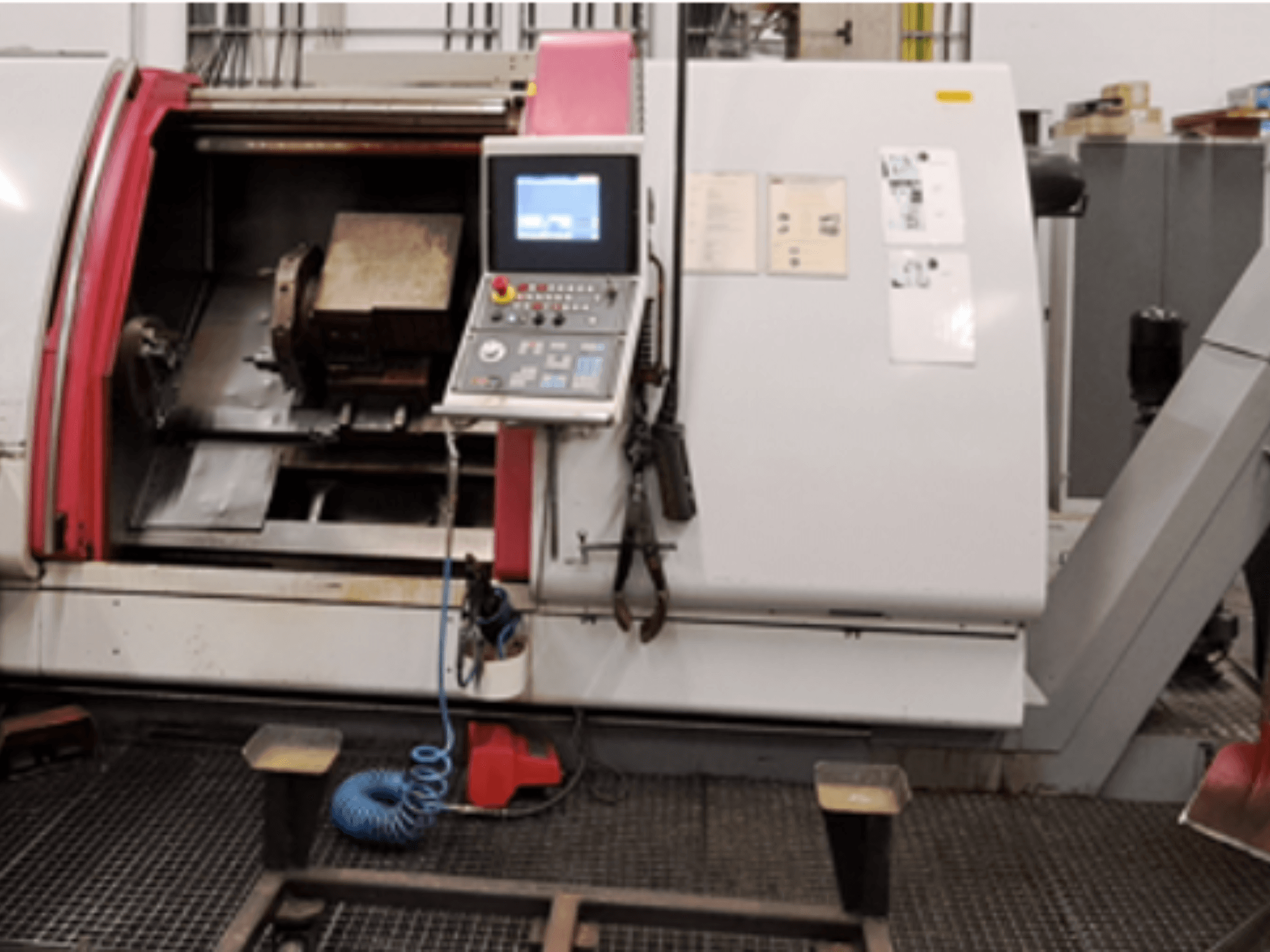

Gildemeister - CTX 500 S2DE-TUR-GIL-2000-00002

- Max. Swing Over Bed / Slide: 680 mm / 670 mm

- Max. Turning Diameter over Face Slide: 455 mm

- Max. Turning Length: 1097 mm / 2097 mm

- Spindle Head Flange: 220 mm (Size 220h5)

- Spindle Bore: 107 mm

- Spindle Bearing Front Diameter: 140 mm

- Max. Chuck Diameter: 315 mm / 400 mm

- Tailstock Quill Taper: MK 5 / MK 6

- Tailstock Quill Diameter: 120 mm

- Tailstock Quill Stroke: 120 mm

- Tool System: Disc Turret

- Number of Slide Carriage Sets: 1

- Number of Face Slides: 1

- Longitudinal Stroke: 1097 mm / 2097 mm

- Face Stroke: 320 mm

- Max. Torque: 650 Nm / 2000 Nm

- Feed Force (Longitudinal / Plan): 15000 N / 8000 N

- Rapid Feed (Longitudinal / Plan): 30 m/min / 24 m/min

- Feed Speed Range: 0.5 - 5000 mm/min

- Main Drive Motor Type: B3

- Feed Drive X-Plan Motor: Siemens 1FK6063-6AF71-1AH0 (1.9 kW, 3000 rpm, IP64)

- Feed Drive Z-Longitudinal Motor: Siemens 1FK6101-8AF71-1AG0 (4.9 kW, 3000 rpm, IP64)

- Lubrication Motor: Vögele 113.50.000701C (0.13 kW, 2200 rpm, IP44)

- Hydraulic Motor: 2.2 kW, 1450 rpm, IP54

- Connected Load / Power Requirement: 58 kVA

- Voltage: 400 V

- Frequency: 50 Hz

- Current: 85 A

- Fuse Rating: 100 A

- Control Voltage: 230 V AC / 24 V DC

- Floor Space Required: 8.41 m x 4.3 m x 2.41 m (5607/6657 x 3285 x 2405 mm)

- Machine Weight: 8700 kg / 10000 kg

- Additional Equipment: Chip conveyor with chip container, coolant system, exhaust filter unit (IFM)
