Gildemeister - CTX 500 S2DE-TUR-GIL-2001-00006

Name: Gildemeister CTX 500 S2
Brand: Gildemeister
SKU: DE-TUR-GIL-2001-00006
Price: 17000 EUR
Availability: InStock

17,000 €

gindumac price

(Ex works)

get an official quote

Visit the machine

make a counteroffer

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used Gildemeister CTX 500 S2 For Sale | gindumac.com

Show in original language

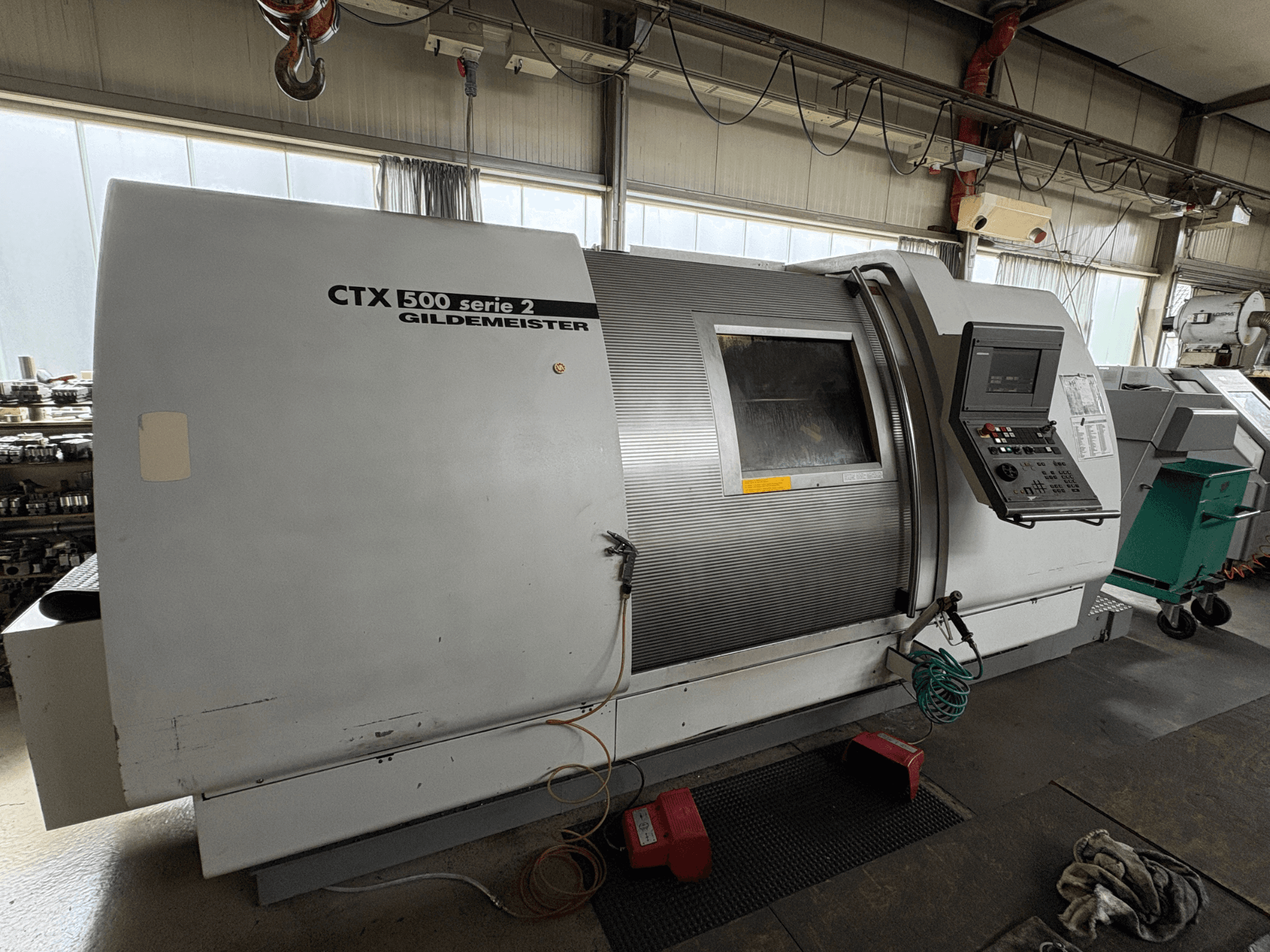

This 3-axis Gildemeister CTX 500 S2 was manufactured in 2001. It features a turning length of 1000 mm and a swing diameter over the bed track cover of 680 mm. The machine is equipped with a powerful drive of 23 kW and a maximum torque of 650 Nm. If you are looking to get high-quality turning capabilities, consider the Gildemeister CTX 500 S2 horizontal turning machine we have for sale. Contact us for further details.

Overview

brand: Gildemeister
year: 2001
MODEL: CTX 500 S2
production hours: 57279
application type: Turning
Location: Germany
machine type: Horizontal Turning Machine
control unit brand: HEIDENHAIN

Technical Information - Gildemeister CTX 500 S2

Control Unit

Control Brand: HEIDENHAIN
Control Model: CNC PILOT 4290

Dimensions

Machine Height: 2130 mm
Machine Length: 5560 mm
Machine Weight: 8700 kg
Machine Width: 2400 mm

Movement

Number of Axes: 3
X-axis Travel: 320 mm
Z-axis Travel: 1097 mm

Technical Specification

Counter Spindle: No
Driven Tools: Yes
Max. Bar Diameter: 90 mm
Max. Workpiece Diameter: 680 mm
Spindle Power: 23 kW
Spindle Speed: 3600 RPM

Additional Information

- Swing Diameter over Face Guide Cover: 455 mm

- Main Spindle Diameter: 220 h5 mm

- Main Spindle Diameter in Front Bearing: 140 mm

- Spindle Bore: 107 mm

- Chuck Diameter: 315 / 400 mm

- Drive Power (100% Duty Cycle): 23 kW

- Max. Torque: 650 Nm

- Speed Range: 18 - 3600 rpm

- C-Axis Speed: < 100 rpm

- C-Axis Holding Torque: 750 Nm

- C-Axis Indexing Accuracy: <= 0.025 degrees

- Feed Force X-Axis: 8 kN

- Feed Force Z-Axis: 15 kN

- Rapid Traverse Speed X: 24 m/min

- Rapid Traverse Speed Z: 30 m/min

- Ball Screw X / Z (Diameter x Pitch): 32x15 / 40x20 mm

- Tool Turret: Universal disc turret, automatically indexing with directional logic

- Number of Tool Stations: 12

- Tool Mounting Cylindrical Shank (DIN 69880): 40 (50) mm

- Vertical Travel (Y-Axis): +/- 50 mm

- Driven Tools Variant - Number of Tool Stations: 12

- Driven Tools Variant - Max. Driven Tools: 6

- Driven Tools Variant - Max. Clamping Diameter: 16 mm

- Driven Tools Variant - Max. Speed: 4000 rpm

- Driven Tools Variant - Drive Power (40% Duty Cycle): 9.7 kW

- Tailstock Quill Diameter (Front Area): 120 mm

- Tailstock Quill Stroke: 120 mm

- Tailstock Quill Mount: Mk 5 (6)

- Tailstock Quill Pressure Max.: 14 kN

- Dimensions DL 1000 (LxWxH) without Chip Conveyor: 5560 x 2400 x 2130 mm

- Weight without Chip Conveyor: 8700 kg / 10000 kg

- Sound Pressure Level: 77 dB(A)

- Illuminance at Turning Spindle: > 300 Lux

- Voltage (U): 400 V

- Frequency (f): 50 Hz

- Phases: 3 ~

- Apparent Power (P): 58 kVA

- Current (I): 85 A

- Fuse Protection: 100 A

- Control Voltage: 230 V / 24 V=

Included Equipment:

Chip conveyor, 3-jaw chuck, foot pedal switches, extraction tube attachment

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
