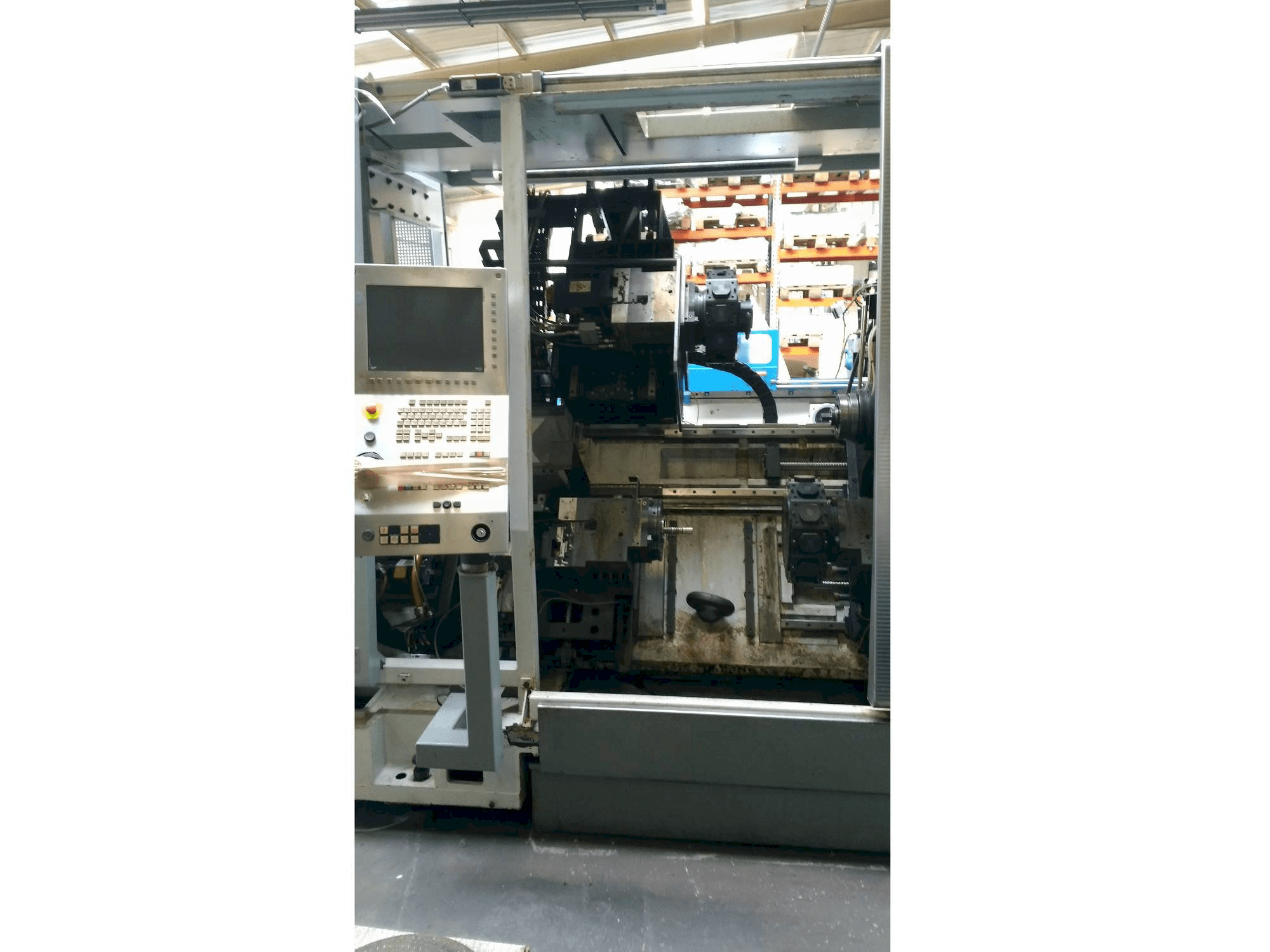

Front view of Gildemeister Sprint 65 Linear machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

Gildemeister Sprint 65 Linear

Gildemeister - Sprint 65 LinearDE-TUR-GIL-2006-00001

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
Gildemeister Sprint 65 Linear

Show in original language

This Gildemeister Sprint 65 Linear lathe machine was built in 2006 in Italy. The machine has a record of 32648, of which 14482 are operating hours. It is operated through a FANUC 310i control unit. This 10 axis machine has a main spindle speed up to 5000 rpm. It includes a bar feeder.

Overview

brand: Gildemeister
year: 2006
MODEL: Sprint 65 Linear
production hours: 32648
application type: Turning
Location: Germany
machine type: Swiss Type Turning Machine
availability: Sold
control unit brand: FANUC

Technical Information - Gildemeister Sprint 65 Linear

General Data

Measurements width: 9260 mm
Measurements depth: 2480 mm
Measurements height: 2700 mm
Machine weight: 11000 kg

Control Unit

Model: 310i
Brand: FANUC

Main drive

Number of spindles: 2
Spindle speed range: 5000 1/MIN
Spindle motor power: 20 kw
Spindle bore: 75 mm
Number of axis: 10

Turret

Number of tool slots: 12

Media

Main electronic connection: 400 v 50 hz
Power consumption: 91 kva
Chip conveyor: Yes

Additional Equipment

- bar feeder

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Axis x1: travel 165 mm; max. Speed 30 m/min
- - Axis z1: travel 220 mm; max. Speed 30 m/min
- - Axis w2: travel 690 mm; max. Speed 30 m/min
- - Axis x2: travel 165 mm; max. Speed 30 m/min
- - Axis z2: travel 150 mm; max. Speed 30 m/min
- - Axis x3: travel 165 mm; max. Speed 40 m/min
- - Axis z3: travel 678 mm; max. Speed 30 m/min
- - Axis y3: travel 80(+50/-30) mm; max. Speed 30 m/min

Extra information

- This machine has been partially disassembled. during disassembly it was found that the telescopic cover, wiper, float switch, central lubrication, toothed belt, lubrication lines and cables need to be replaced.

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
