- ➤ Used GRIGGIO G 240P/5U - 2007 - For Sale | gindumac.com

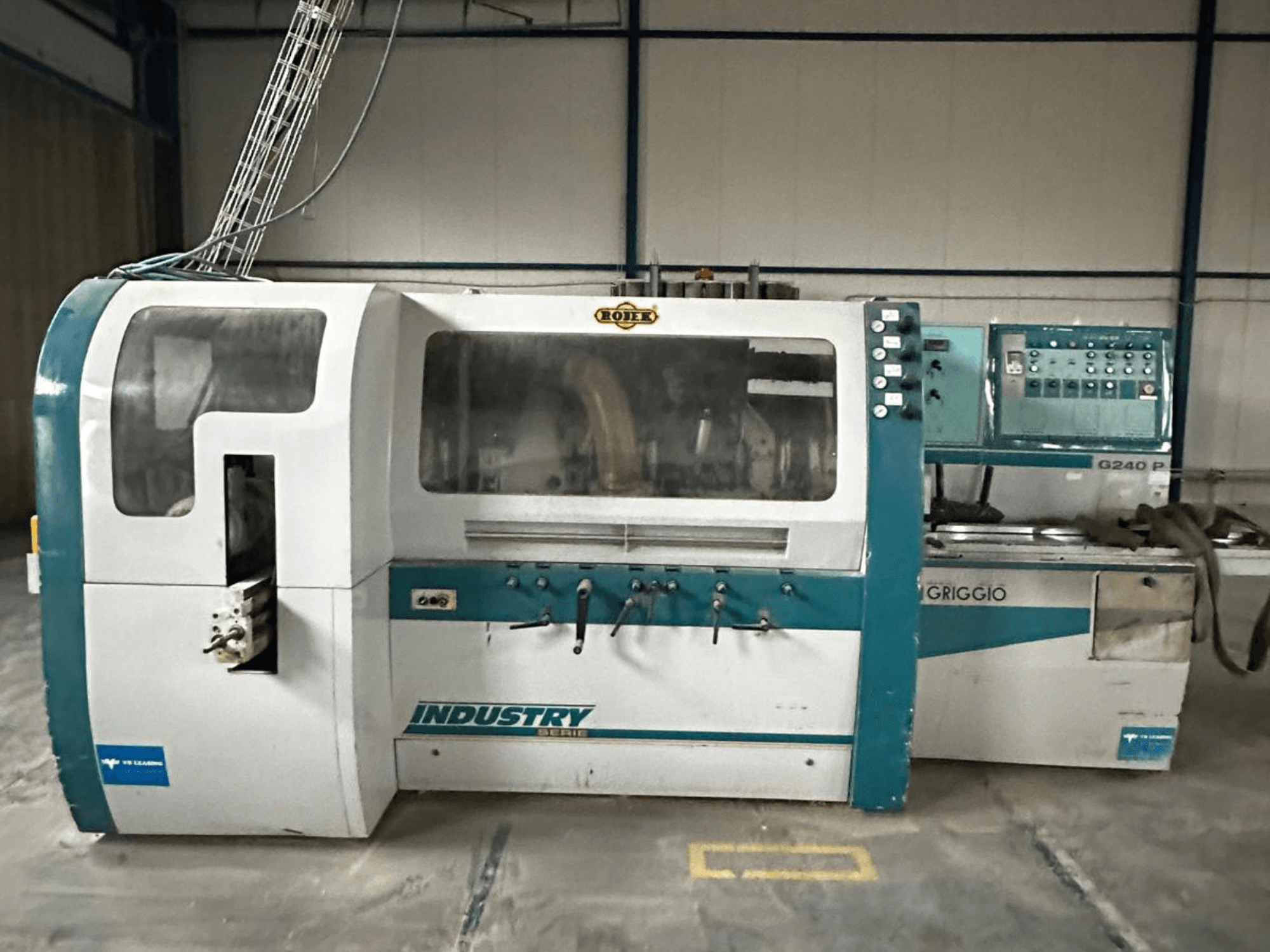

This GRIGGIO G 240P/5U was manufactured in 2007. It features a maximum planing width of 240mm and height of 160mm, accommodating workpiece sizes up to 240 x 160mm. Equipped with five spindles, including a universal turning shaft, and spindle speeds up to 6000 rpm. The machine allows smooth feed adjustments up to 30m/min. Weighs 4100kg with dimensions of 440x220x180cm. Contact us for more information about this machine.
Overview
- brand: GRIGGIO
- year: 2007
- MODEL: G 240P/5U
- application type: Planing
- Location: Czech Republic
- machine type: Wood Planer
Technical Information - GRIGGIO G 240P/5U
Dimensions
- Machine Height: 180 mm
- Machine Length: 420 mm
- Machine Weight: 4100 kg
Technical Specification
- Spindle Speed: 6000 RPM
Additional Information
Maximum planing height: 160 mm
Max. workpiece size: 240 x 160 mm
Min. workpiece size: 23 x 8 mm
Number of spindles: 5
Spindle power: Bottom 5.5 kW, Right 5.5 kW, Left 5.5 kW, Top 7.5 kW, Universal 5.5 kW
Working shafts: 5 (5th shaft is universal/turning)
Feed: Smooth inverter-assisted adjustment up to 30 m/min
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
