➤ Used HAAS SL-30 For Sale | gindumac.com

Show in original language

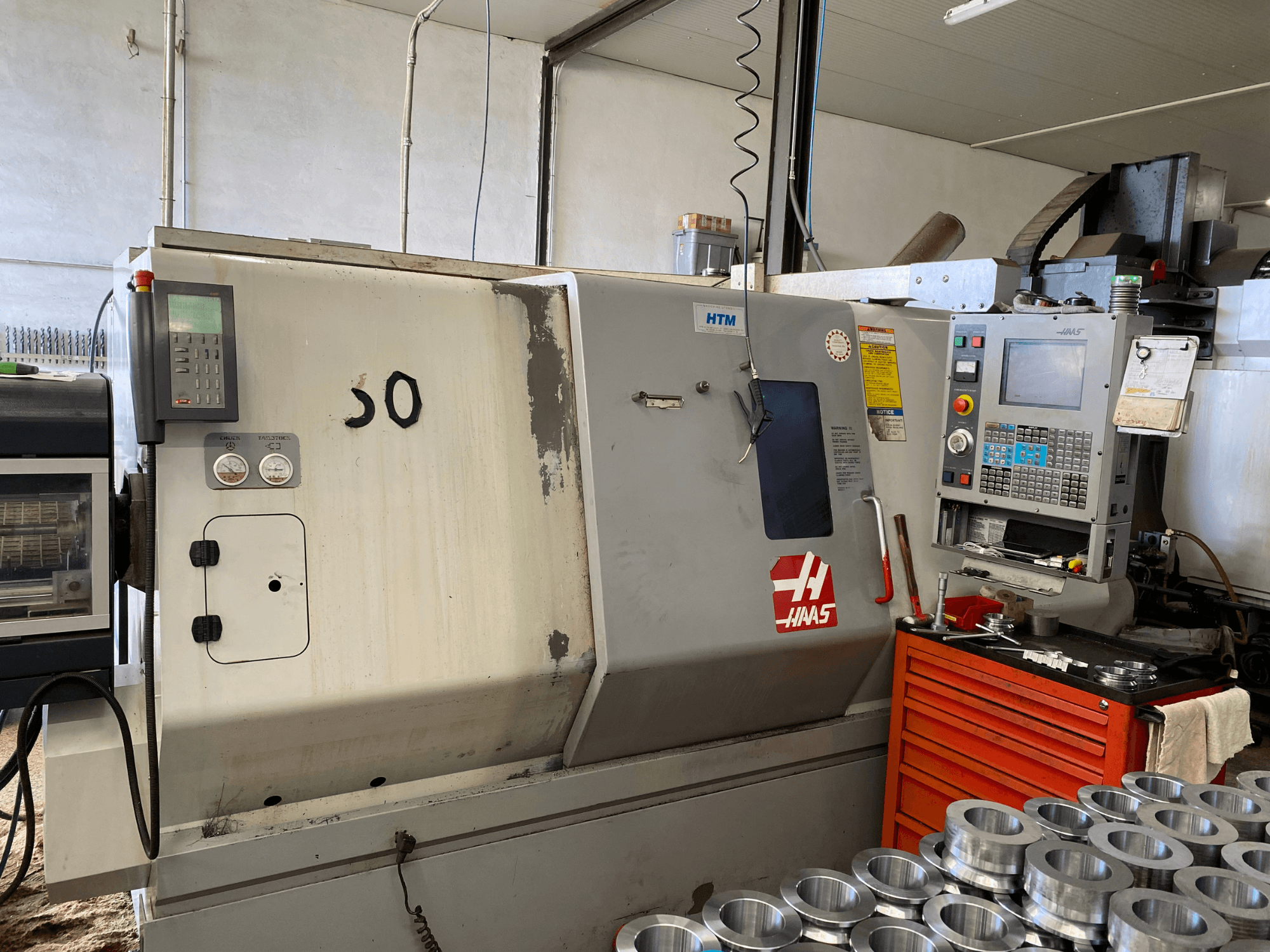

This HAAS SL-30 was manufactured in 2003. A robust horizontal turning machine featuring X/Z travel of 318/660 mm, turning diameter of 533 mm, and length of 660 mm. It includes a bar capacity of 76 mm, spindle power of 22.4 kW, and a maximum spindle speed of 3,200 rpm. Equipped with a 12-position tool turret and a semi-automatic hydraulic tailstock. Consider the opportunity to buy this HAAS SL-30 horizontal turning machine. Contact us for more information.

Overview

brand: HAAS
year: 2003
MODEL: SL-30
application type: Turning
Location: Italy
machine type: Horizontal Turning Machine

Technical Information - HAAS SL-30

Dimensions

Machine Depth: 1800 mm
Machine Height: 1900 mm
Machine Length: 3800 mm
Machine Weight: 7200 kg

Movement

Number of Axes: 2
X-axis Travel: 318 mm
Z-axis Travel: 660 mm

Technical Specification

Spindle Power: 224 kW
Spindle Speed: 3200 RPM

Additional Information

Turning diameter: 533 mm
Turning length: 660 mm
Spindle nose: A2-6
Bar capacity: 76 mm
Spindle bore diameter: 254 mm
Max cutting speed: 10.2 m/min
Rapid feed rate: 24 m/min
Tool presetter: Yes
Tailstock: Semi-automatic hydraulic
Tool turret: 12 positions, VDI 40

Additional equipment

Chip conveyor: Screw type
Bar feeder: LNS Quik Load Servo III

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
