HAAS - EC400IL-MIL-HAA-2012-00001
Sold
Do you have further questions? Contact us.
Borja Garcia
+34 679 019 350
b.garcia@gindumac.com
Click to chat on WhatsApp
- GINDUMAC
- Products
- Machine Tools
- HAAS EC400 Milling
Show in original language

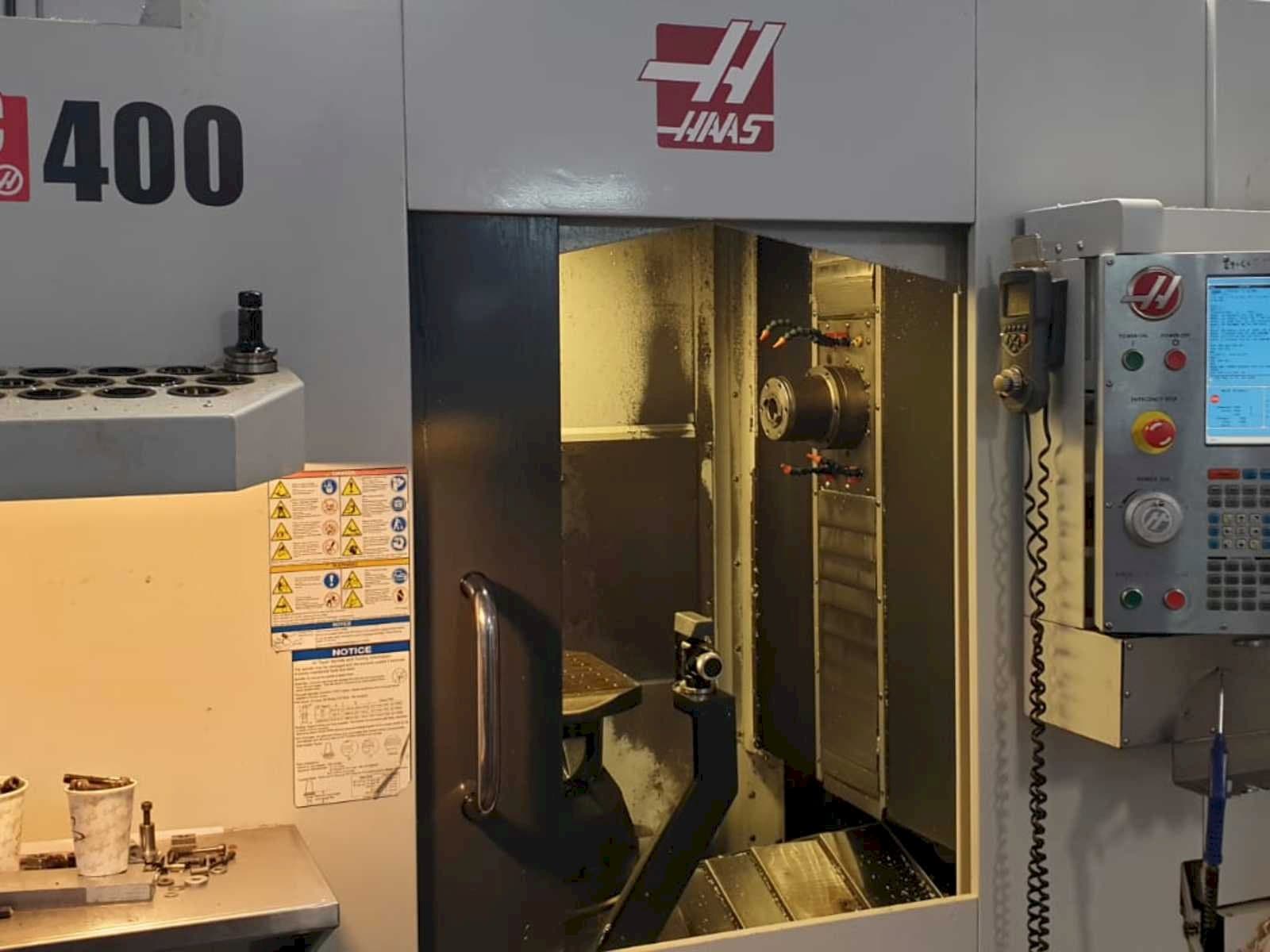

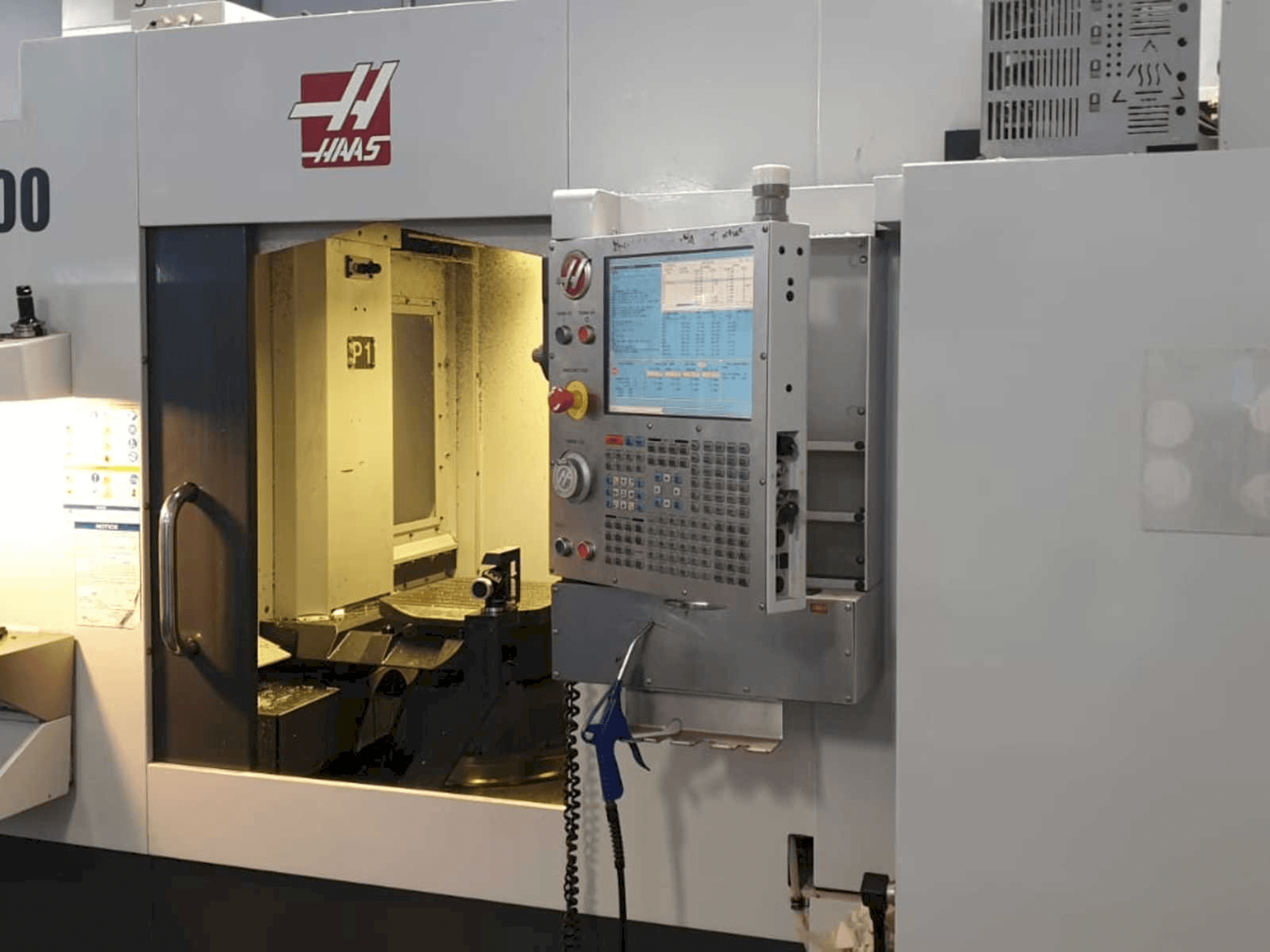

This HAAS EC400 Horizontal Machining center was manufactured in 2012. The 4 axis machine operates through a Haas CNC control unit. It has a spindle speed up to 12000 rpm. The machine comes with full ATC 70 Tools.
Overview
- brand: HAAS
- year: 2012
- MODEL: EC400
- application type: Milling
- Location: Israel
- machine type: Horizontal Machining Centre
- control unit brand: HAAS
Technical Information - HAAS EC400
Control Unit
- Control Brand: HAAS
- Control Model: CNC
Dimensions
- Machine Weight: 9525 kg
Movement
- Number of Axes: 4
- X-axis Travel: 508 mm
- Y-axis Travel: 508 mm
- Z-axis Travel: 508 mm
Technical Specification
- Spindle Speed: 12000 RPM
Additional Information
Additional equipment
- Belt Type Chip Conveyor
- Intuitive Probing, Renishaw
- Tool Tray
- Lifting kit
- Rigid tapping
- Remote Jog Handle
- Power Fault Detection Module
- Programmable Coolant Nozzle
- Disk & Hard Drive
- Coordinate Rotation & Scaling
Machine Benefits
Qualitative Machine Benefits
- Max. Cutting 500 ipm
- Tool changer: capacity 70+1
- Tool type/taper cat 40
- Coolant capacity 80 gal
- Power required (min) 195-260 vac 3-phase
- 30 hp main drive motor
- 70 position automatic tool changer
- Rigid tapping
- Coolant thru spindle, 300 psi
Technical Machine Benefits
- Pallet size: 400 mm x 400 mm
- Change time 8 sec
- Optional full 4th axis
- Capacity 660 lbs
- Indexing accuracy +/-15 arc-sec
- 90 deg. Rotation time 3 sec.
- Drive system inline direct drive
- Max. Torque 90ft-lb @ 2000 rpm
- Max. Rating 30 hp
- Rapids 1000 ipm
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
