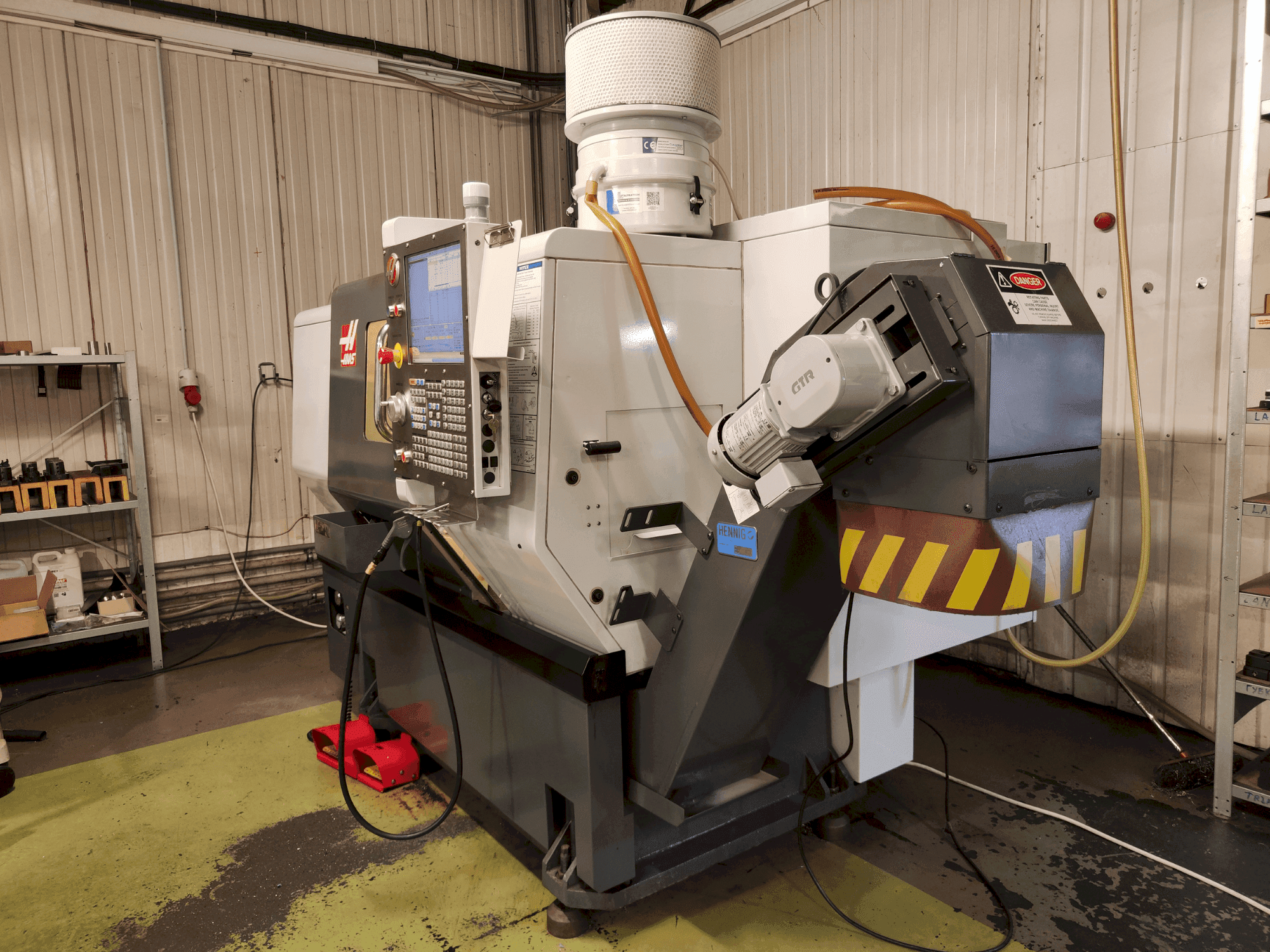

This HAAS ST-10 was manufactured in 2012. A robust horizontal turning machine from the USA, it features a maximum cutting diameter of 356 mm and length of 356 mm. With a spindle speed up to 6000 rpm and a 12-tool turret, it's ideal for efficient turning operations. Consider the opportunity to buy this HAAS ST-10 horizontal turning machine. Contact us for more information.
Overview
- brand: HAAS
- year: 2012
- MODEL: ST-10
- application type: Turning
- Location: Latvia
- machine type: Horizontal Turning Machine
- control unit brand: HAAS
Technical Information - HAAS ST-10
Control Unit
- Control Brand: HAAS
- Control Model: HAAS CNC
Dimensions
- Machine Weight: 2268 kg
Movement
- Number of Axes: 2
- X-axis Travel: 200.2 mm
- Z-axis Travel: 356 mm
Technical Specification
- Spindle Speed: 6000 RPM
Additional Information
Swing diameter over front apron: 641 mm
Swing diameter over cross slide: 413 mm
Swing diameter over tailstock: 597 mm
Chuck size: 165 mm
Maximum cutting diameter: 356 mm
Maximum cutting length: 356 mm
Bar capacity: 44 mm
Maximum thrust X-axis: 14,679 N
Maximum thrust Z-axis: 14,679 N
Spindle maximum rating: 11.2 kW
Spindle maximum speed: 6000 rpm
Spindle maximum torque: 102 Nm @ 1300 rpm
Spindle nose: A2-5
Tool size (OD turning): 19.1 mm
Turret indexing time (one tool): 0.5 s
Boring bar rear clearance (from turret face): 104.8 mm
Air required: 113 L/min @ 6.9 bar
Coolant capacity: 114 L
Power supply: 200–250 VAC / 50 A / 3Ø
Tailstock: For turning center ST-10
Additional equipment
Chip conveyor: Belt-type, for turning center ST-10
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
