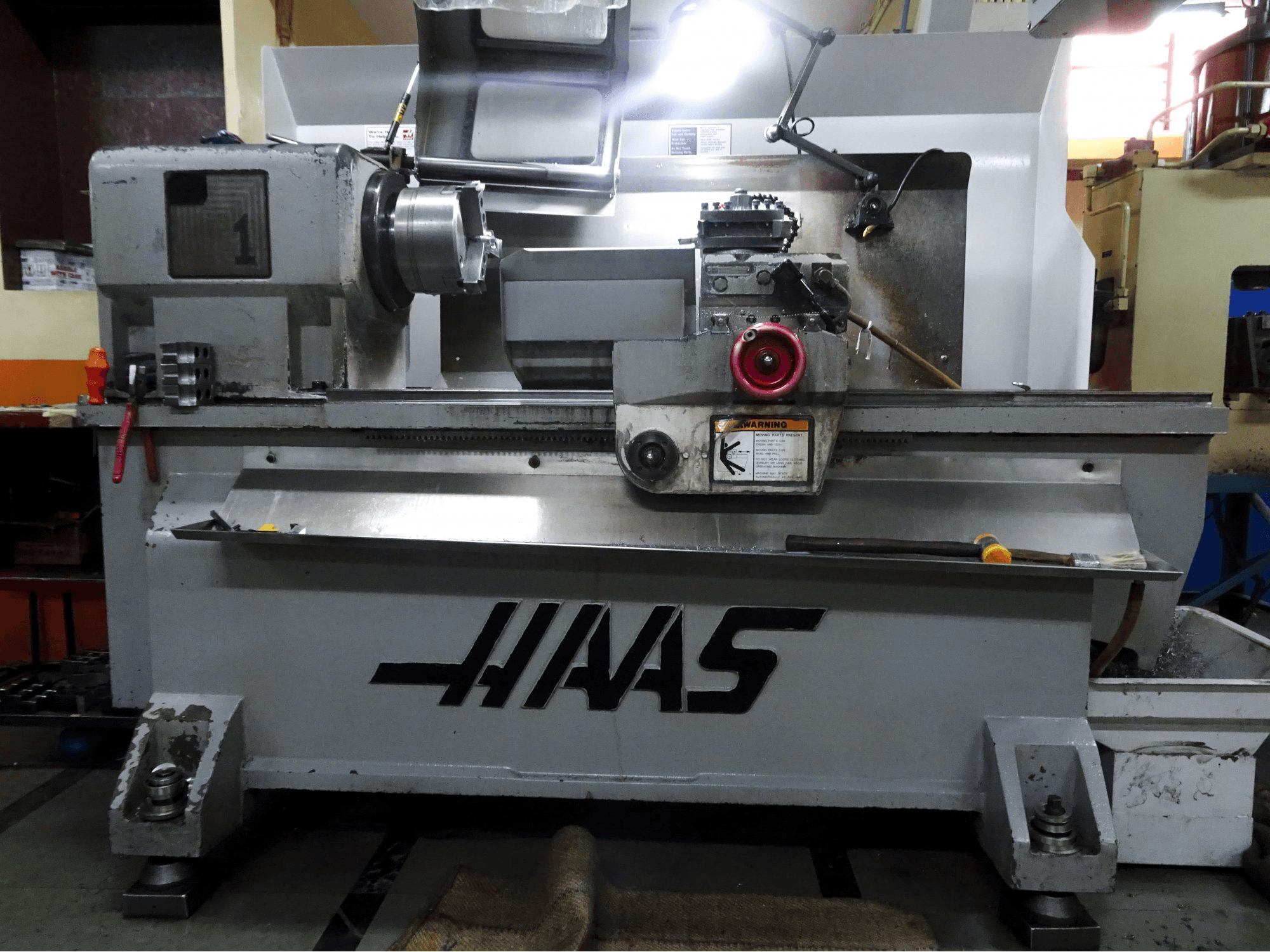

This TL-1 Lathe, manufactured by HAAS in 2005, has a production record of 28800 working hours. Equipped with HAAS own Control unit, this machine stands in an excellent condition and requires low maintenance. In the past, this machine has been working on mild and stainless steel with a cut depth of 1.5 mm. A parting and a threading tool are included as additional equipment.
Overview
- brand: HAAS
- year: 2005
- MODEL: TL-1
- production hours: 28800
- application type: Turning
- Location: India
- machine type: Lathe
- availability: Sold
- control unit brand: HAAS
- GINDUMAC ID: IN-TUR-HAA-2005-00001
Technical Information
General Data
- Measurements width: 1500 mm
- Measurements depth: 2000 mm
- Measurements height: 1200 mm
- Machine weight: 2230 kg
Control Unit
- Brand: HAAS
Main drive
- Number of spindles: 1
- Spindle speed range: 8000 1/min
- Spindle motor power: 7.5 kW
- Spindle bore: 55 mm
Movement
- X-AXIS Movement: 350 mm
- Y-AXIS Movement: 200 mm
Turret
- Max tool length: 100 mm
- Number of tool slots: 4
- Tool taper: ISO 50
Media
- Main electronic connection: 400 V
- Power consumption: 6.5 kVA
- Air pressure: 8 bar
Additional Equipment
- - Parting tool
- - Threading tool
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
