➤ Used HAAS VF-1YT-1 For Sale | gindumac.com

Show in original language

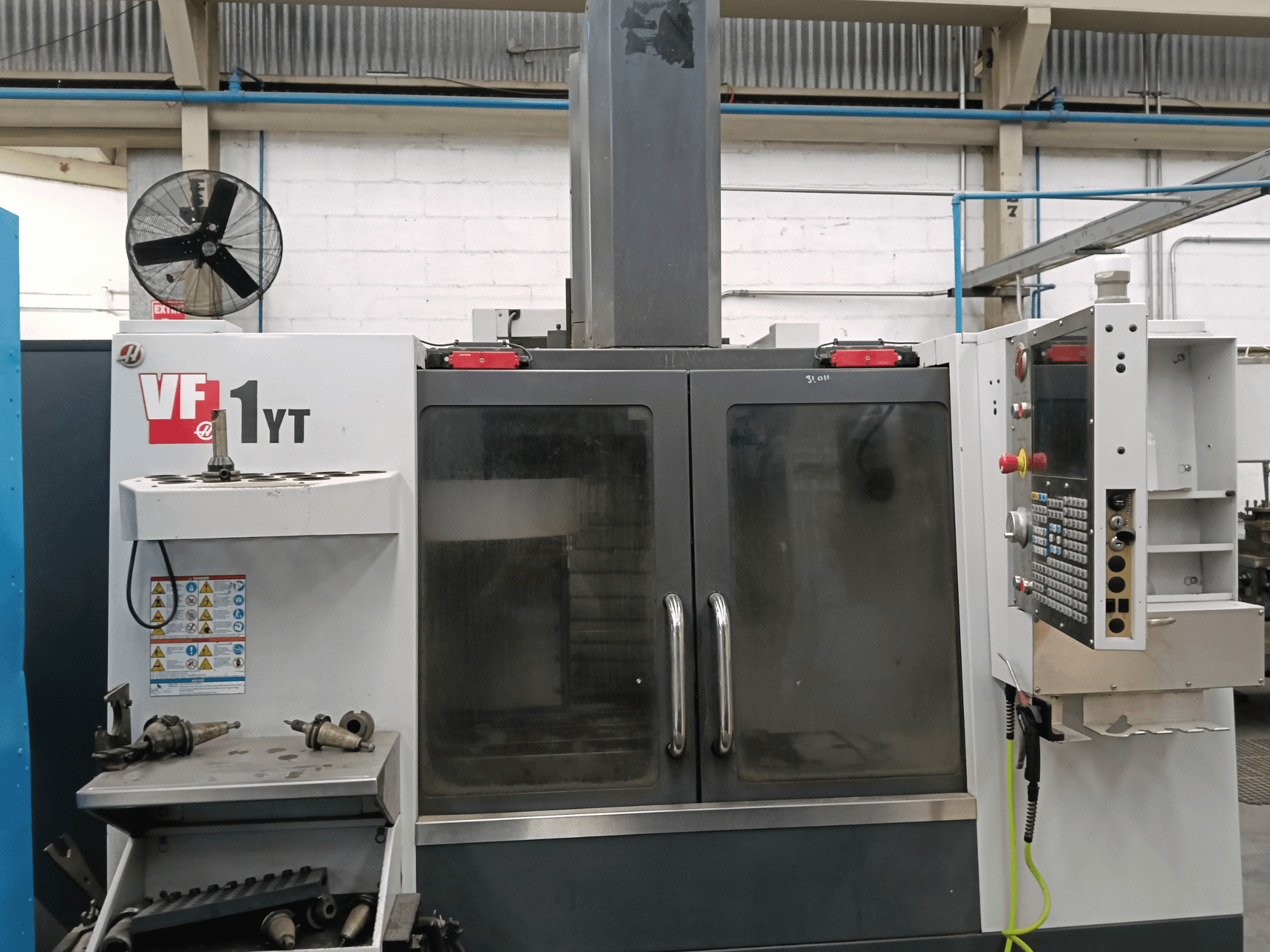

This 3-axis HAAS VF-1YT-1 vertical machining center was manufactured in 2009. It features an X-axis travel of 508 mm, Y-axis travel of 406 mm, and Z-axis travel of 508 mm. The machine includes a robust table size of 660 x 457.2 mm and a maximum table load of 1,361 kg. If you are looking to get high-quality machining capabilities, consider the HAAS VF-1YT-1 vertical machining center we have for sale. Contact us for further details.

Overview

brand: HAAS
year: 2009
MODEL: VF-1YT-1
application type: Milling
Location: Mexico
machine type: Vertical Machining Centre

Technical Information - HAAS VF-1YT-1

Movement

Number of Axes: 3
X-axis Travel: 508 mm
Y-axis Travel: 406 mm
Z-axis Travel: 508 mm

Technical Specification

Spindle Power: 22.4 kW
Spindle Speed: 8100 RPM

Additional Information

Feed Force: Max cutting feedrate: 16.5 m/min (650 ipm)
Rapid Traverse: 25.4 m/min (1,000 ipm)
Outer length: 660 mm (26")
Outer width: 457.2 mm (18")
Tslots size: 16 mm (5/8") width
Number of tslots: 3
Table load: 1,361 kg (3,000 lbs)
Number of tool slots: 20 Stations
Main electronic connection: 440 VAC
Oil tank: Coolant tank capacity: 208 L (55 gal)
Air pressure: Min 6.9 bar (100 psi) constant flow
Machine Type: Vertical Machining Center (VMC)
CNC Control: Original CNC Control
ATC Capacity: 20 Stations (Standard Carousel)
Tool Change Time (Tool to Tool): 2.3 to 2.8 seconds
Max Torque: 90 ft-lb @ 2,000 RPM
Options: 4th Axis Drive Capable

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.

** The default scope of delivery includes the machine only. Accessories and peripheral equipment will be confirmed through binding agreements during the purchasing process.
