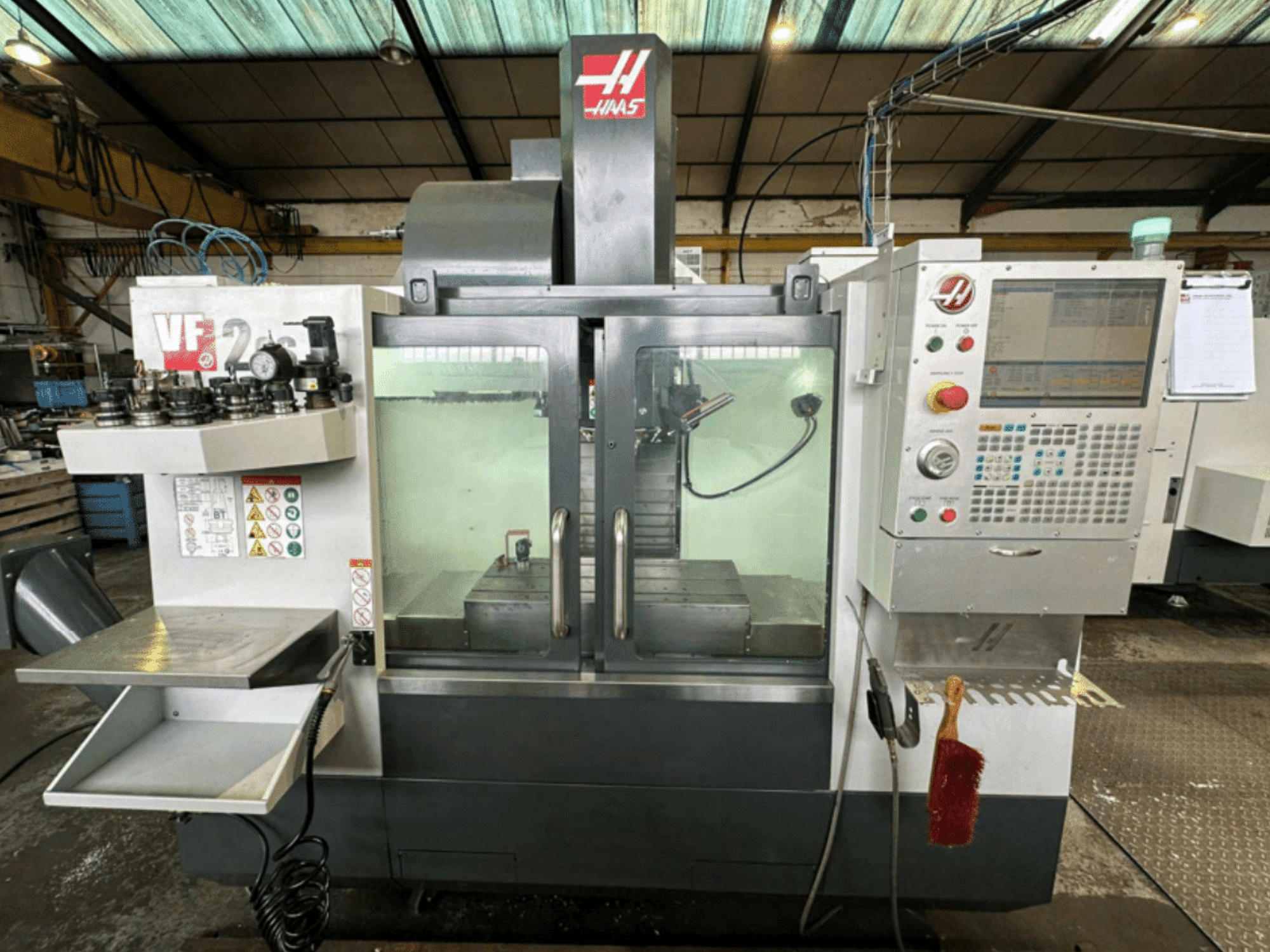

HAAS - VF-2SS-EUES-MIL-HAA-2018-00001

Table: 914 × 356 mm, 3 T-slots, 16 mm (5/8") width, 125 mm spacing

Spindle:

• Max torque: 120–125 Nm at low rpm

• Rotation: CW/CCW programmable (M03/M04), orientation M19

• Bearing lubrication: air/oil

Tool changer:

• Side-mount SMTC super-speed, 30+1 stations

• Tool-to-tool: ~1.6 s; chip-to-chip: ~2.2 s

• Max tool: 5 kg; Ø 76 mm (adjacent full) / Ø 127 mm (adjacent empty); length 279 mm

Feedrates and performance:

• Rapids (X/Y/Z): 35.6 m/min

• Max cutting feed: 21 m/min

• High acceleration (Super Speed) and high-speed machining activated

Probing (WIPS, Renishaw), fully integrated with Haas VPS:

• Work probe: auto zeroing, contour measurement, hole centers, angled faces, position verification

• Tool probe: length/diameter measurement, tool break detection

Coolant and pneumatics:

• Flood coolant with 200 L tank; standard nozzle orientation + spindle ring

• Mist lubrication for drilling/tapping

• Compressed air: 6.5–7 bar (95–100 psi) for tool change and purges

Control and connectivity (Haas NGC, 15" color screen):

• Program memory: 32 GB

• UI: menus, file browser, offsets, VPS integrated

• Connectivity: Wi‑Fi, Ethernet, front USB

• Programming: macros (# variables, IF/THEN, WHILE, calculations), VPS editor, media display

Activated options/software:

• Macros, rotation & scaling, rigid tapping, M19 spindle orientation

• High-speed machining, VPS editor, media display

• 4th-axis capability (control), 32 GB memory, Wi‑Fi connectivity

• Tool and work offsets, 12,000 rpm spindle, WIPS (workpiece + tool probe)
