- HAAS VF-2SS Vertical Machine Center
Show in original language

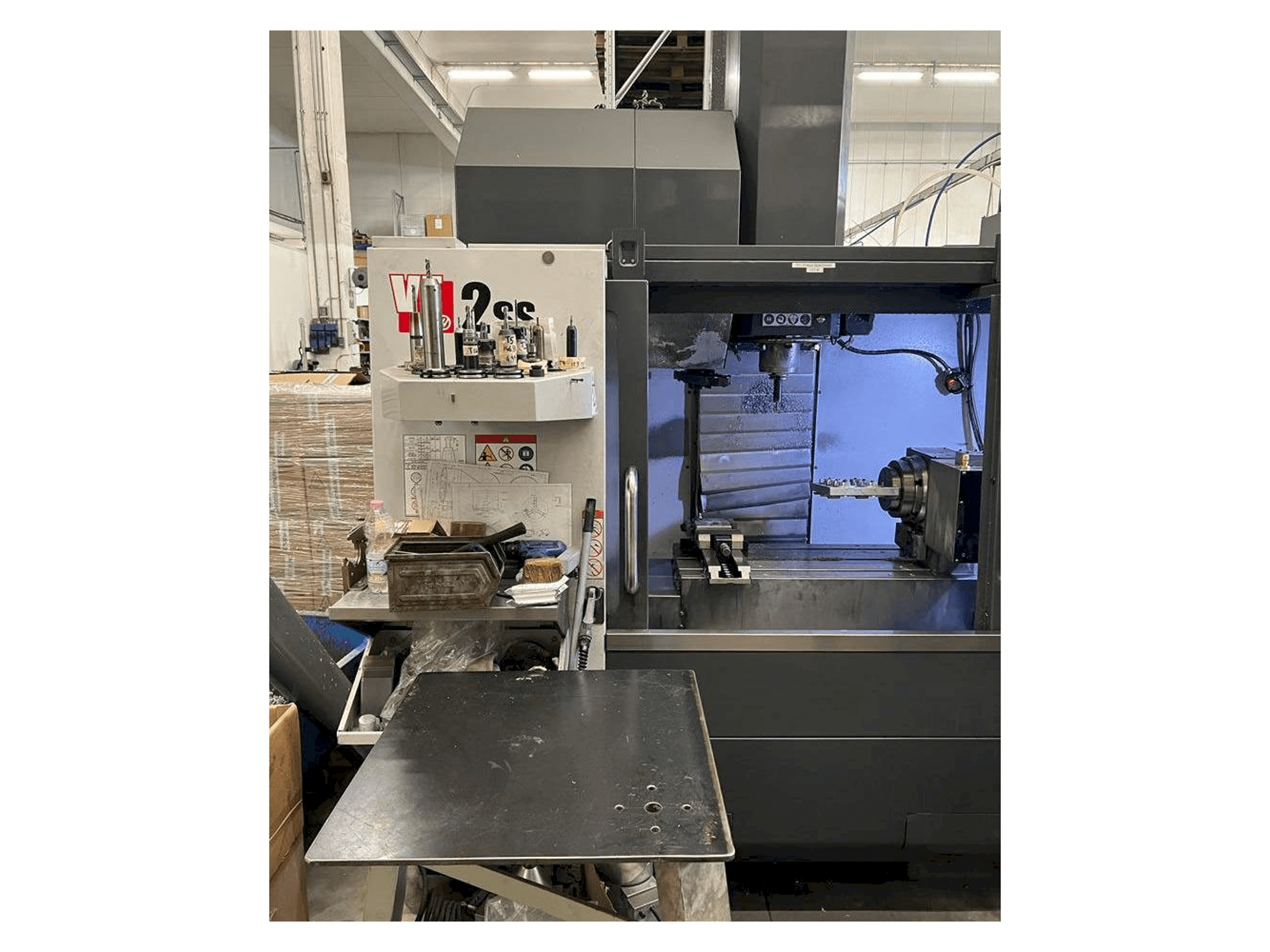

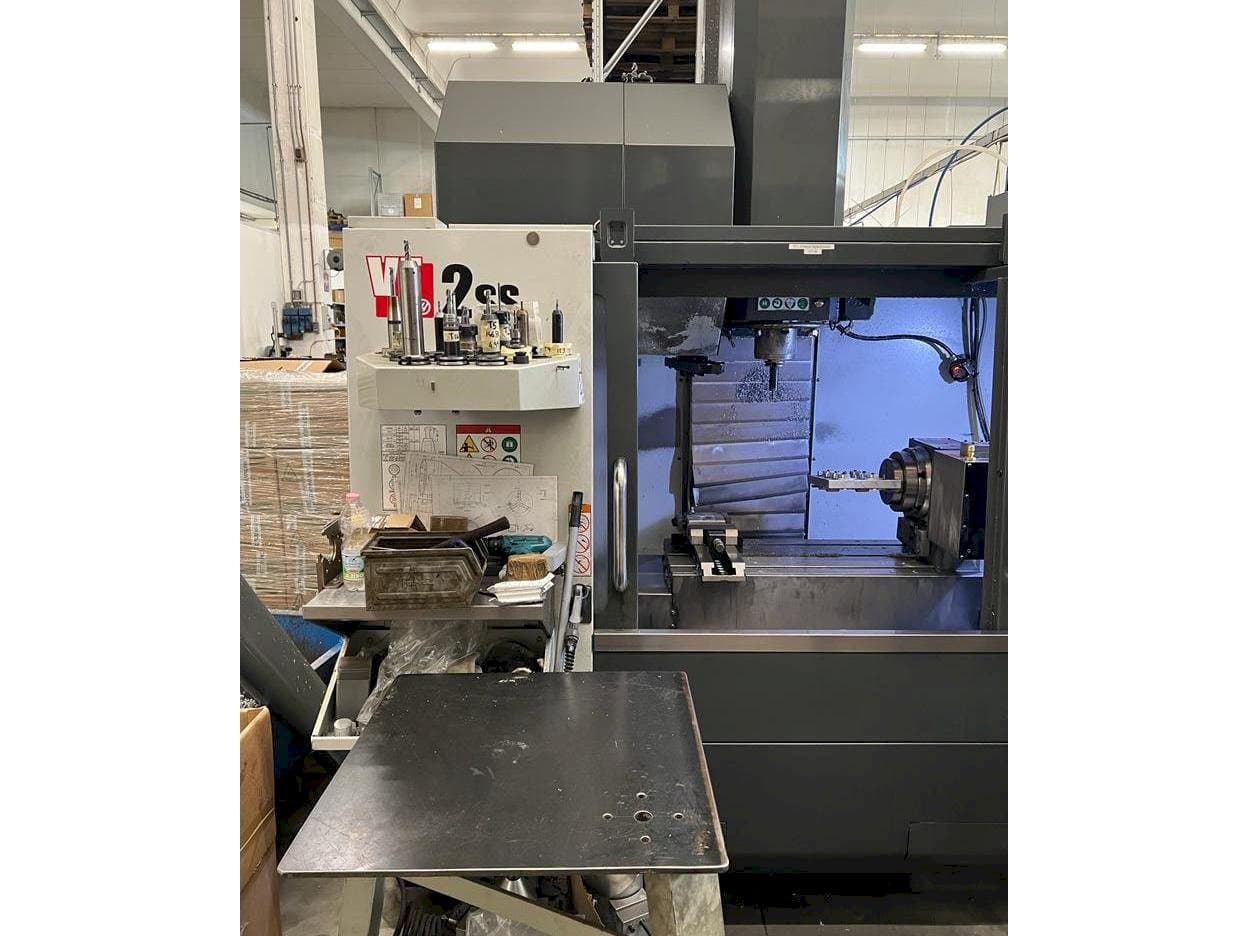

This HAAS VF-2SS Vertical Machine Center was made in the year 2018 and has 6500 hours. It is equipped with a Haas control unit. The machine has a spindle speed of 12000 rpm and an X/Y/Z axis travels 762 x 406 x 508 mm.
Overview
- brand: HAAS
- year: 2018
- MODEL: VF-2SS
- production hours: 6500
- application type: Milling
- Location: Italy
- machine type: Vertical Machining Centre
- control unit brand: HAAS
Technical Information - HAAS VF-2SS
Control Unit
- Control Brand: HAAS
Dimensions
- Machine Depth: 2150 mm
- Machine Height: 2450 mm
Movement
- X-axis Travel: 762 mm
- Y-axis Travel: 406 mm
- Z-axis Travel: 508 mm
Technical Specification
- Spindle Power: 22.4 kW
- Spindle Speed: 12000 RPM
Additional Information
Machine Benefits
Qualitative Machine Benefits
- Yes: air jet through tooling , high pressure auxiliary filter , programmable coolant nozzle,
- Internal and external service light
Technical Machine Benefits
- From spindle nose to plate 102 mm
- Cone ct40(din 19871)
- Max. Cutting speed 20. 5 m/min
- Random tool change, tool change capacity 30+1 vertical
- Failure detection module power: si, wi-fi connection, cnc memory 32 gb, 15 " color monitor, usb/wi-fi data transmission
- Rigid tapping yes, ngc(new generation control) yes
- Passage of refr. Through the spindle 21 bar
- 4th axis drive and wiring, continuous 4th axis table hrt-210
- Intuitive probe system tast. Piece renishaw, intuitive probe system tast. Renishaw tool, intuitive program si system
- Yes: coordinate rotation system, macro variables and scale factors, coordinate rotation system, auger chip extractor
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
