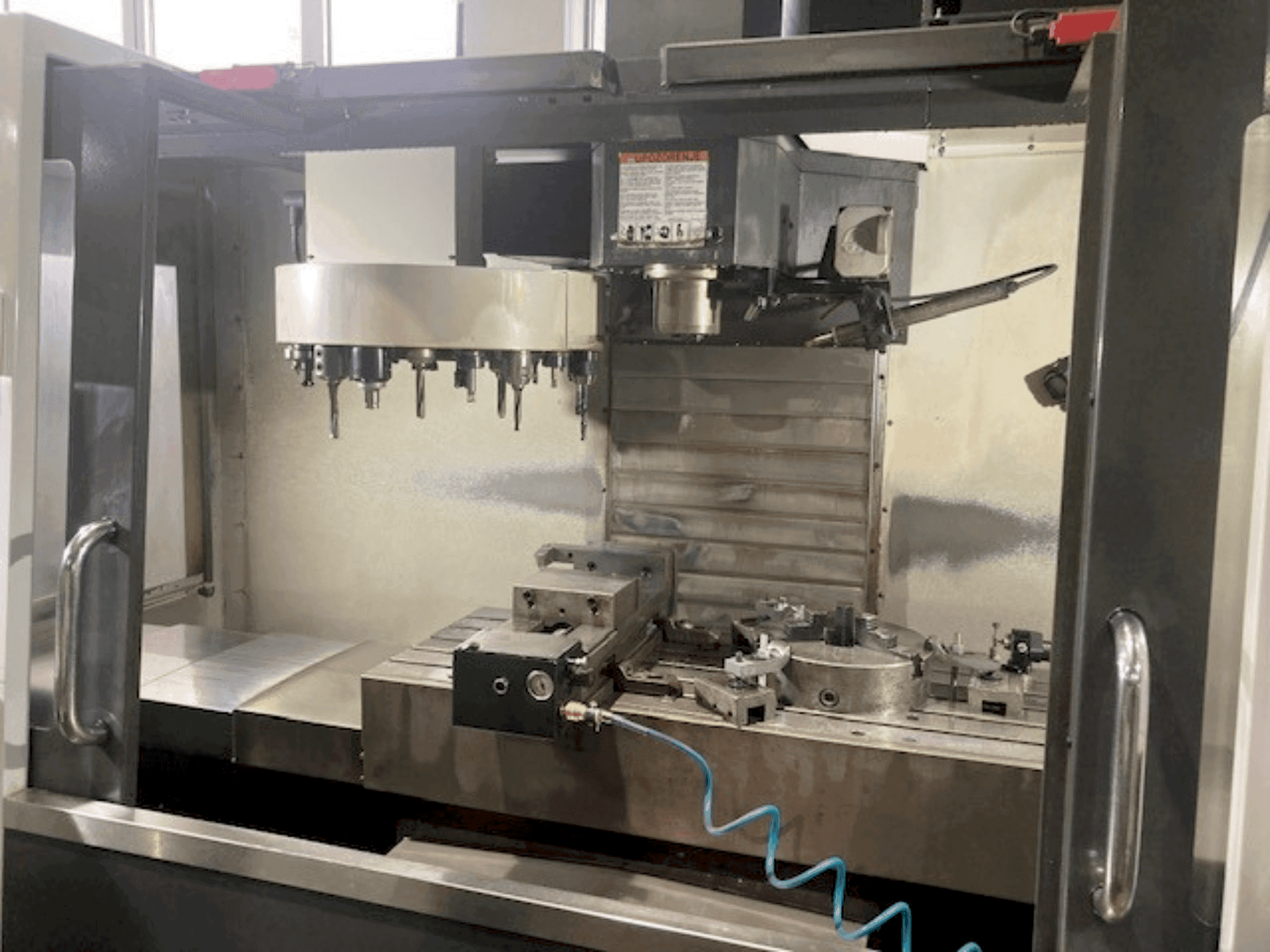

Front view of HAAS VF 3  machine

HAAS VF 3

HAAS - VF 3

2014

Sold

Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This 3-axis milling machine was manufactured in 2014. Equipped with a powerful 22.4 kW spindle and precise positioning accuracy of 0.005 mm, this HAAS VF-3 offers exceptional performance for machining tasks. Its 20-tool horizontal carousel magazine ensures efficient tool changes, while the 15" LCD color monitor enhances user interface. With a maximum table load of 1588 kg and rapid traverse rates of 25.4 m/min, buy this HAAS VF-3 milling machine for versatile and reliable production capabilities. Contact us for further information.

Overview

  • brand: HAAS
  • year: 2014
  • MODEL: VF 3
  • application type: Milling
  • Location: Serbia
  • machine type: Machining centers (vertical)
  • availability: Sold
  • GINDUMAC ID: RS-MIL-HAA-2014-00001

Technical Information

General Data

  • Machine weight: 5670 KG

Main drive

  • Spindle speed range: 8100 1/MIN
  • Spindle motor power: 22.4 kW

Movement

  • X-AXIS Rapid traverse: 24.5 m/min
  • Y-AXIS Rapid traverse: 24.5 m/min
  • Z-AXIS Rapid traverse: 24.5 m/min

Table

  • Outer length: 1219 MM
  • Outer width: 457 MM
  • TSlots size: 16 MM
  • Number of tslots: 15
  • Distance between: 80 MM
  • Min distance between vertical spindle and table: 102
  • Max distance between vertical spindle and table: 737
  • Table load: 1588 KG

Tools

  • Slots in storage: 15
  • Max weight: 5.4 KG
  • Max tool diameter: 189 MM

Additional Information

    Machine Benefits

    • Technical Machine Benefits:
      • - Maximum torque: 122 nm at 2000 rpm
      • - Power transmission from motor: in line direct drive (direct motor-spindle, no gearbox)
      • - Taper and tooling: iso40, din 69871
      • - Maximum cutting feedrate: 16. 5 m/min
      • - Traverses: x- 1016 mm, y- 508 mm, z- 635 mm
      • - Maximum motor load: x and y axes - 11343 n, z axis - 18683 n
      • - Tool magazine type: horizontal carousel without tool changer arm
      • - Tool change time: 4. 2
      • - Positioning: 0. 005 mm
      • - Repeatability: 0. 003 mm
    • Qualitative Machine Benefits:
      • - Protective cabin around the machine according to ce standards
      • - 15" lcd color monitor
      • - Rs-232 port (pc-cnc communication via serial port)
      • - Usb port (for transferring and directly running programs from a usb data carrier)
      • - 1 mb of user memory
      • - Coolant system with a 208 l reservoir
      • - Automatic centralized lubrication system
      • - Rigid tapping - synchronous threading with a tapping attachment without compensation

    Extra information

    • - - Pneumatic installation (requirement): Emulsion tank capacity: 113 L/min, 6.9 bar - Electrical power supply: 3x400 V, 50 Hz

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
