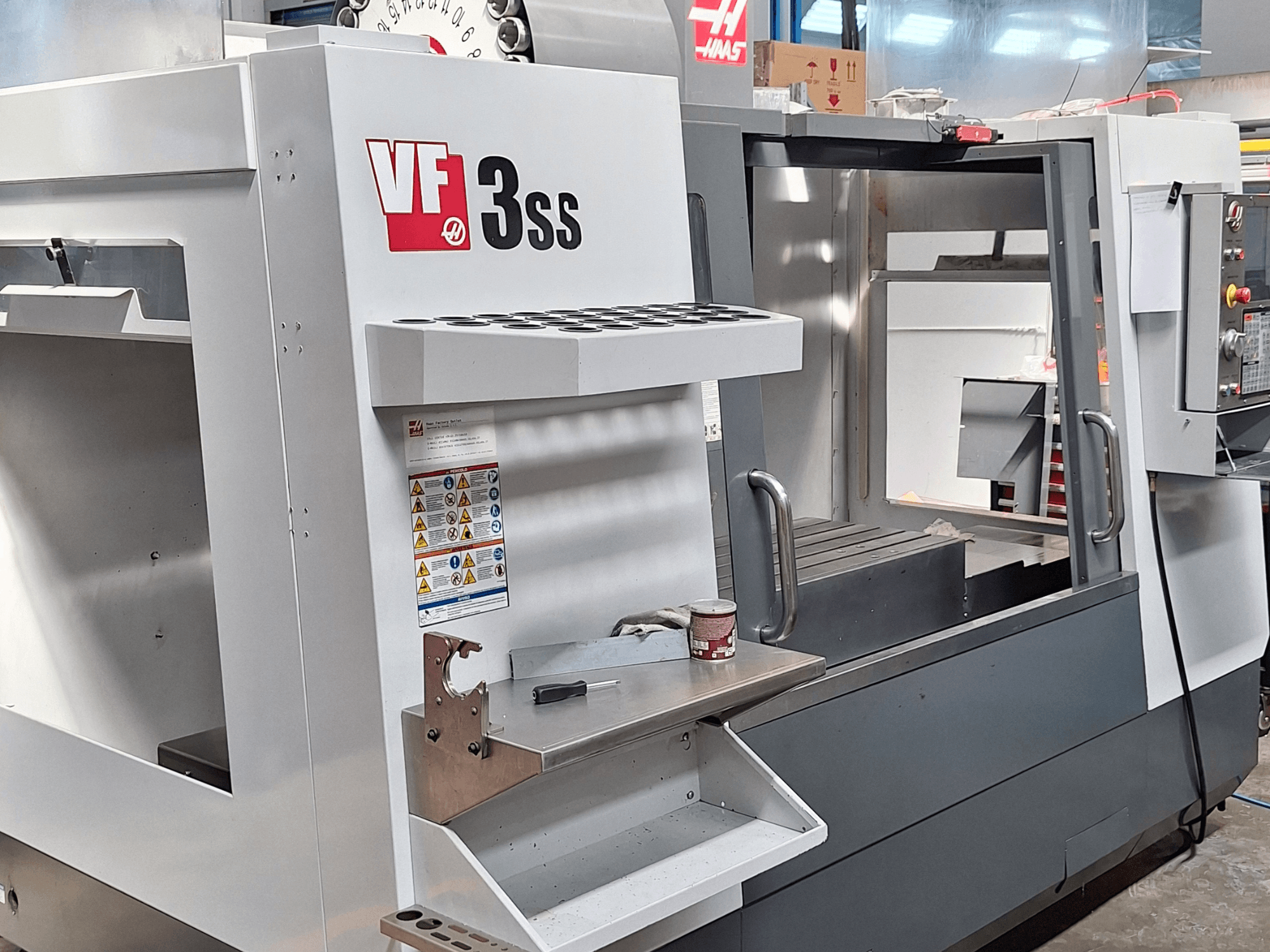

This 5-axis HAAS VF-3SS was manufactured in 2015. It features an impressive X-axis travel of 1,016 mm, Y-axis travel of 508 mm, and Z-axis travel of 635 mm. The machine includes a robust table size of 1,219 x 457 mm and a maximum spindle speed of 12,000 rpm. If you are looking to get high-quality machining capabilities, consider the HAAS VF-3SS vertical machining centre we have for sale. Contact us for further details.
Overview
- brand: HAAS
- year: 2015
- MODEL: VF-3SS
- application type: Milling
- Location: Italy
- machine type: Vertical Machining Centre
Technical Information - HAAS VF-3SS
Movement
- Number of Axes: 5
- X-axis Travel: 1016 mm
- Y-axis Travel: 508 mm
- Z-axis Travel: 635 mm
Technical Specification
- Spindle Power: 22.4 kW
- Spindle Speed: 12000 RPM
Additional Information
Table Dimensions: 1,219 × 457 mm
Number of T-Slots: 5
Spindle Taper: CT40
Maximum Torque: 122 Nm @ 2,000 rpm
Maximum Rapid Traverse (X/Y/Z): 35.6 m/min
Tool Changer Capacity: 24 positions
High-Speed Machining: Included
Memory Capacity: 1 MB
Display: 15" LCD monitor
Interface Ports: USB, Ethernet
Tapping: Rigid tapping
Number of Axes: 5 (3 linear axes + Haas TR160Y dual-axis rotary table)
Additional equipment
4th-Axis Drive and Wiring: Included
5th-Axis Drive and Wiring: Included
Rotary Table: Haas TR160Y dual-axis tilting rotary table
Through-Spindle Coolant (TSC): 21 bar
Programmable Coolant Nozzle: Included
Auto Air Blast: Included
Lubrication System: Minimum Quantity Lubrication (MQL) system
Coolant Tank Oil Skimmer: Included
Chip Conveyor: Screw-type chip auger
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
