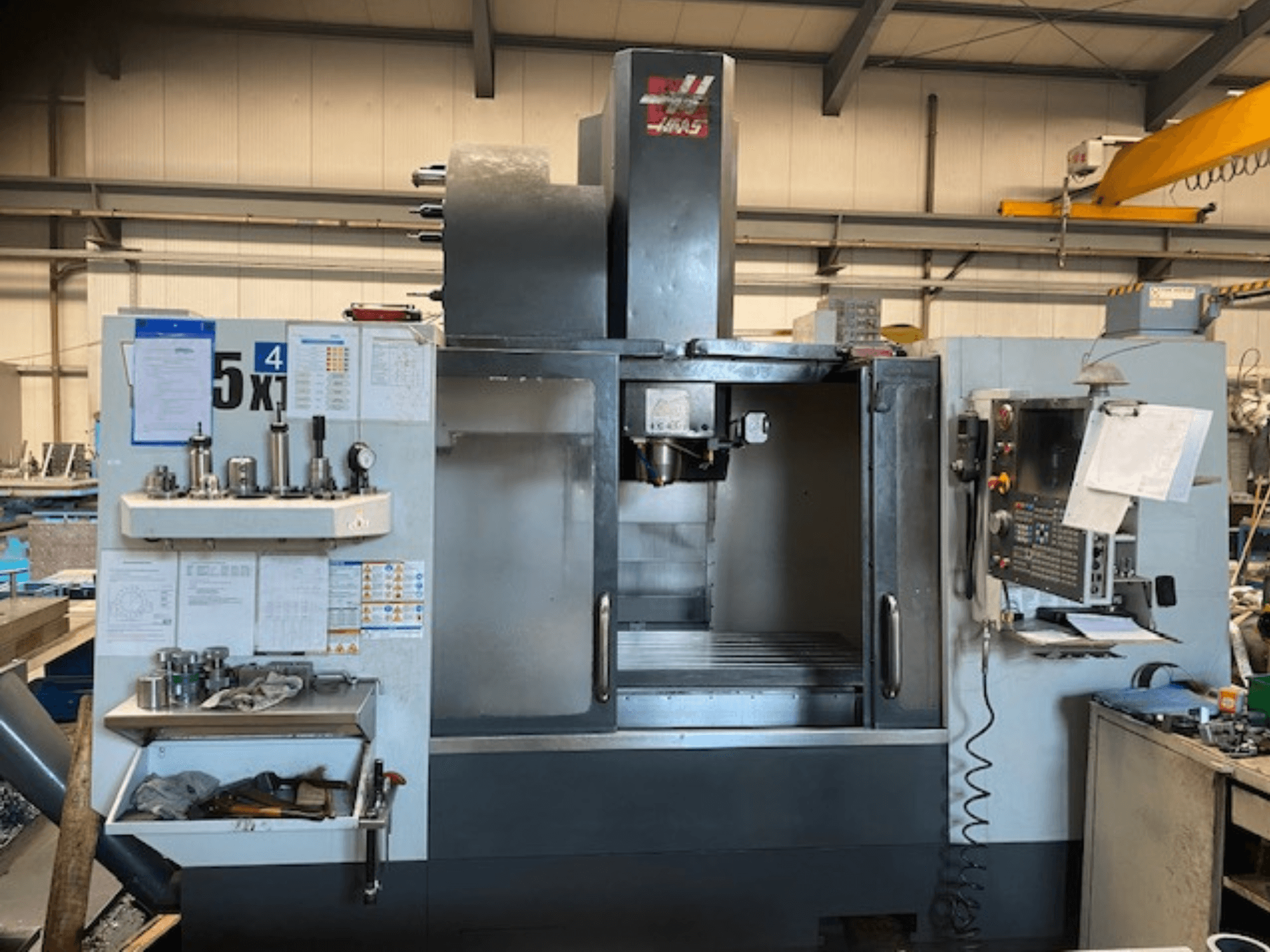

Haas VF-5 vertical machining center, front view, showcasing control panel, tool storage, and spindle area.
Haas VF-5 vertical machining center, front view, showcasing control panel, tool storage, and spindle area.

HAAS - VF-5/50XTDE-MIL-HAA-2012-00003

62,000 €
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This 3-axis HAAS VF-5/50XT was manufactured in 2012, designed for robust vertical machining. It operates on a voltage of 360/480, with a 3-phase power supply and a frequency range of 50/60 Hz. The machine handles a full load of 45 amps and a largest load of 70 amps. If you are looking to get high-quality milling capabilities, consider the HAAS VF-5/50XT machine we have for sale. Contact us for more information.

Overview

  • brand: HAAS
  • year: 2012
  • MODEL: VF-5/50XT
  • production hours: 3283
  • application type: Milling
  • Location: Germany
  • machine type: Vertical Machining Centre

Additional Information

  • Voltage: 360/480

  • Phase: 3

  • Hertz: 50/60

  • Full Load: 45 Amps

  • Largest Load: 70 Amps

  • Short Circuit Interrupting Capacity: 10000 Amps

  • Short Circuit Current: 5000 Amps RMS Symmetrical

  • Wiring Diagram: C5 0284

    3283 operating hours
    Vertical machining center with travels of 1,524 × 660 × 635 mm

    SK-50 spindle head with gearbox

    30 hp vector drive (22.4 kW), 7,500 rpm,

    Tool changer with 30+1 magazine positions,

    X-axis rapid traverse up to 540 ipm (13.7 m/min),

    Y- and Z-axis rapid traverse up to 710 ipm (18.0 m/min),

    Portable color control panel,

    Programmed coolant nozzle,

    Automatic chip conveyor system (spiral),

    1 MB program memory,

    15" color LCD screen,

    USB port,

    Key switch for program locks,

    Synchronized tapping, and a 95-gallon (360-liter) continuous cooling system Coolant supply.

    Transformer mounted in a floor-standing enclosure, IP 23

    Transformer completely vacuum resin impregnated

    Connection to screw terminals via cable glands

    Coolant supply through the spindle, 69 bar, with additional coolant filter system.

    Item 4 – 4AXD

    Drive and wiring for the 4th axis.

    Item 5 – CSMDHV

    Control simulator module (230 V) with dual software

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
