➤ Used HAAS VF-6/50 - 2014 - Vertical Machining Center

Show in original language

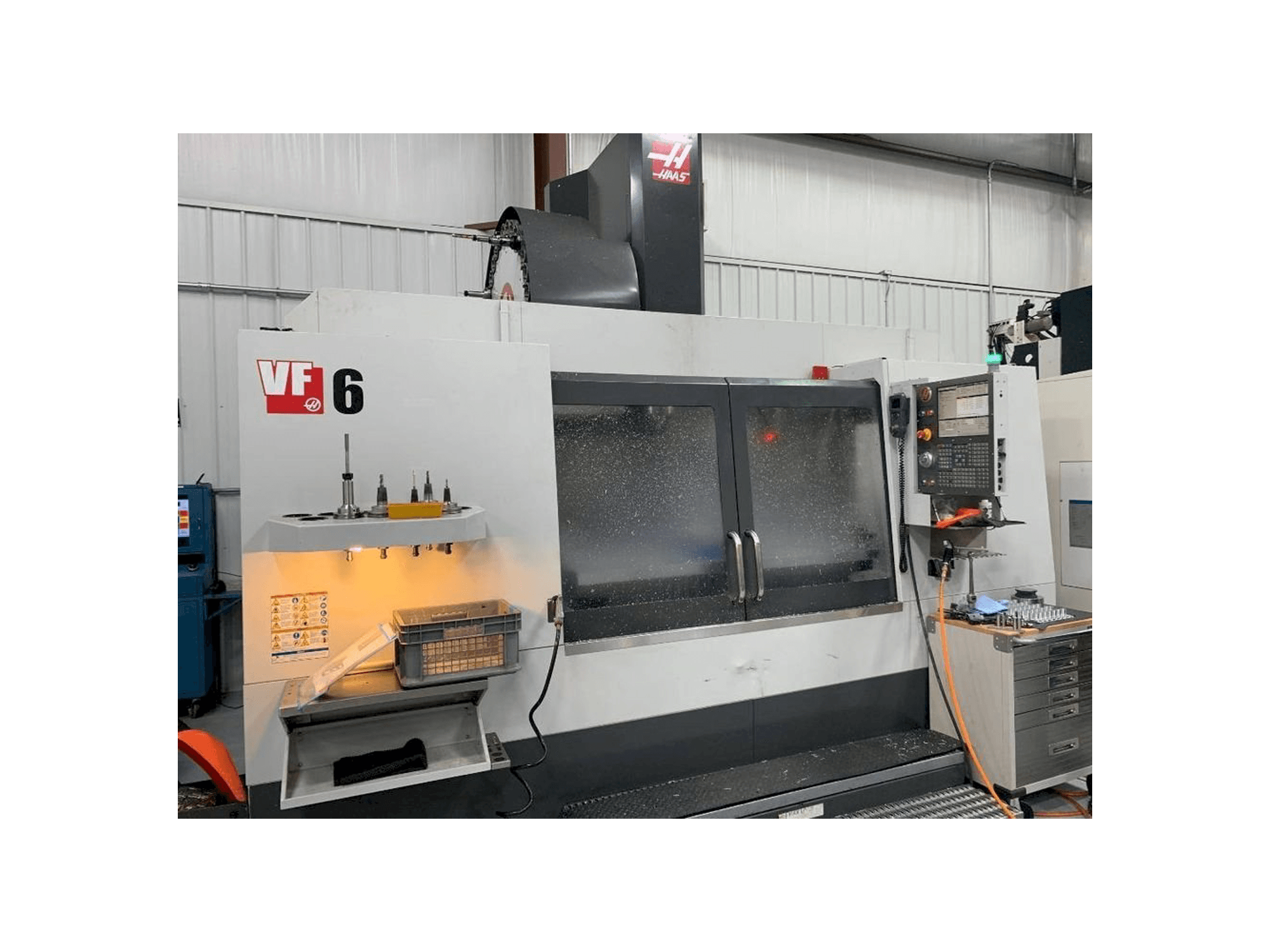

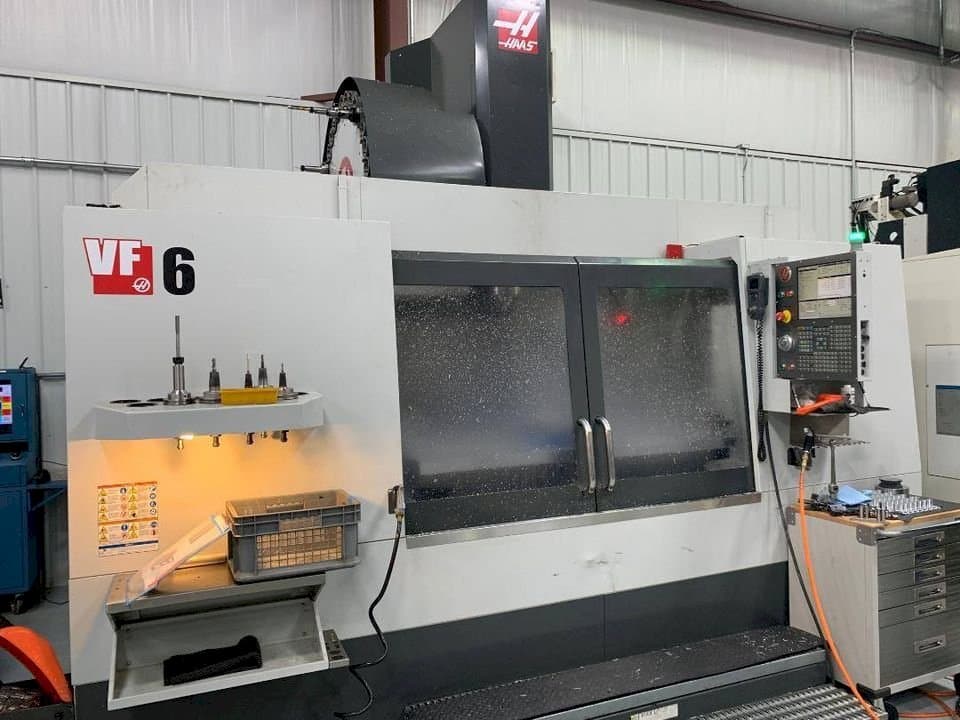

This HAAS VF-6/50 Vertical Machining Center was built in the year 2014. It has been working for only 4900 hours since then. It is equipped with a control unit of the same brand. This 4 axis machine can work with a spindle speed up to 7500 rpm. It includes a chip conveyor, and a renishaw probe system.

Overview

brand: HAAS
year: 2014
MODEL: VF-6/50
production hours: 4900
application type: Milling
Location: United States
machine type: Vertical Machining Centre

Technical Information - HAAS VF-6/50

Main drive

Spindle speed range: 7500 1/MIN
Spindle motor power: 22,4 kW
Tool taper: CT or BT 50
Number of axis: 4

Movement

X-AXIS Movement: 1626 mm
X-AXIS Rapid traverse: 15.2 m/min
Y-AXIS Movement: 813 mm
Y-AXIS Rapid traverse: 15.2 m/min
Z-AXIS Movement: 762 mm
Z-AXIS Rapid traverse: 15.2 m/min

Table

Outer length: 1626 mm
Outer width: 711 mm
Distance between: 125 mm
Table load: 1814 kg

Additional Information

Machine Benefits

Technical Machine Benefits

Spindle nose to table max 889 mm, min 127 mm
Max torque: 340 ft-lbf @ 700 rpm, 460 nm @ 700 rpm
2-speed gearbox
Bearing lubrication: air / oil injection
Chip conveyor
Renishaw probe system

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
