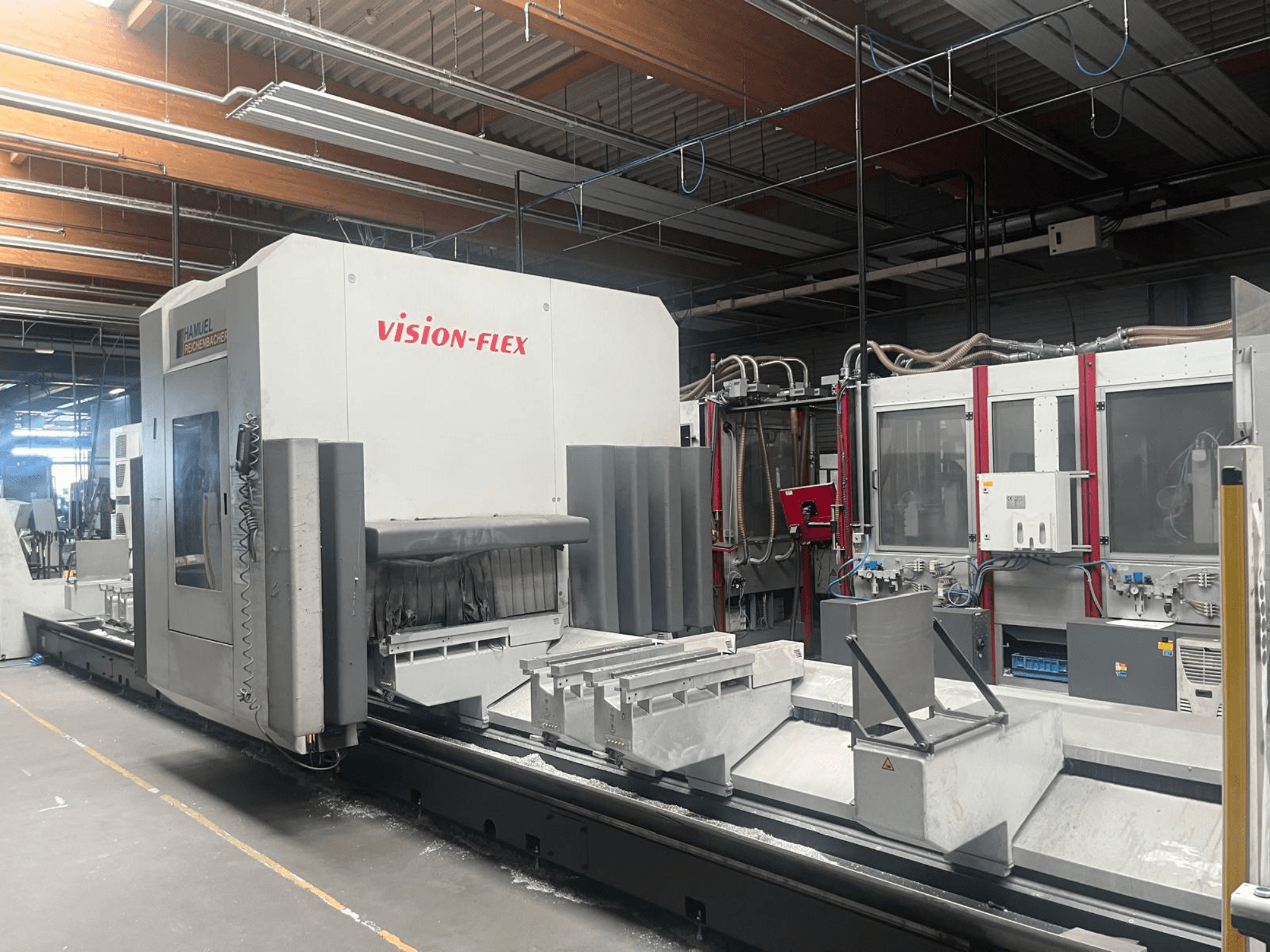

Hamuel Reichenbacher - Vision FlexDE-MIL-HAM-2021-00001

• Number of Axes: 5-Axis (C-axis ±360°, B-axis ±180°)

• X-Axis Travel: 8,060 mm

• Y-Axis Travel: 1,210 mm (+ 400 mm exchange stroke)

• Z-Axis Travel: 760 mm

• Axis Rapid Feed Rates: X = 80 m/min, Y = 60 m/min, Z = 40 m/min

• Axis Acceleration: 6 m/s²

• Spindle Speed: Up to 24,000 rpm

• Main Spindle Power: 15 kW (S1 continuous), 18 kW (S6 max)

• Spindle Torque: 14.3 Nm (S1), 17.2 Nm (S6)

• Spindle Tool Holder: HSK-F63

• Max Tool Length / Weight: 240 mm / 6 kg

• Tool Changer: 20-station disc changer (automatic)

• with 19" TFT display and HT-2 handheld terminal

• Supply Voltage: 400 V (3~ ±10%, 50 Hz)

• Rated Current: 90 A

• Input Fuse: 100 A (Ic < 17 kA)

• Control Voltage: 24 V DC

• Total Power: 45 kW

• Compressed Air Supply: min. 7 bar, ca. 1,000 NL/min

• Lubrication System: Central automatic lubrication system (3 L grease capacity) + Minimal Quantity Lubrication (MQL) with 3 L tank

• Machine Weight: 10,000 kg

• Machine Dimensions (Floor Space): approx. 11.5 m (X) x 3.0 m (Y) x 3.0 m (Z)

Additional Equipment:

• LEHMANN chip conveyor, EATON manual pendant station, pneumatically adjustable profile clamping blocks (8 beams), 2-channel control setup for concurrent setup/machining
